VIP-2100 User’s manual - 33 -
o Line Propriety:
-PSTN: PSTN disconnect reason code:
-Normal Call Clear
-User Busy
-No User Response
-No Answer
-Call Reject
- VoIP: VoIP disconnect reason code:
-User Busy
-No Answer
-Unreachable
-Other

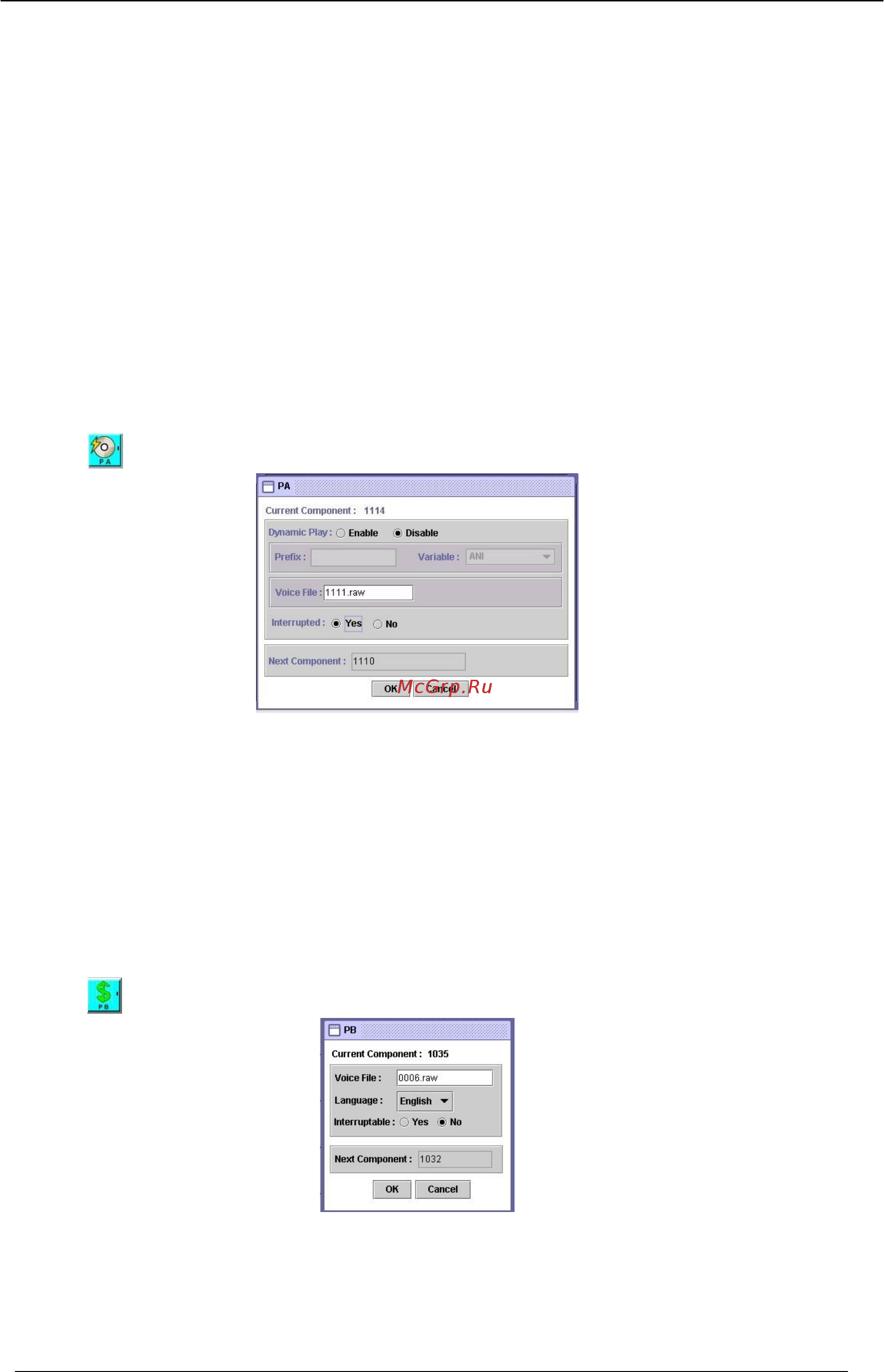

• PA: Play Announcement
o Dynamic Play: Dynamic play voice file by combine prefix and
variable as the file name
o Enable: Combine prefix to variable as the voice file to play
-Prefix: Voice file prefix (e.g. prefix: WT, variable: user1 (contact
201, played voice file is “WT201.raw”)
-Variable: Variable to be appending as the voice file name
o Disable: Use filter voice prompt file
-Voice File: Voice prompt file
o Interrupted: Voice can be interrupted or not
• PB: Play Balance for prepaid purpose
o Voice File: Voice prompt file
o Language: Play balance language section
-English
-Chinese.
o Interrupted: Voice can be interrupted or not
