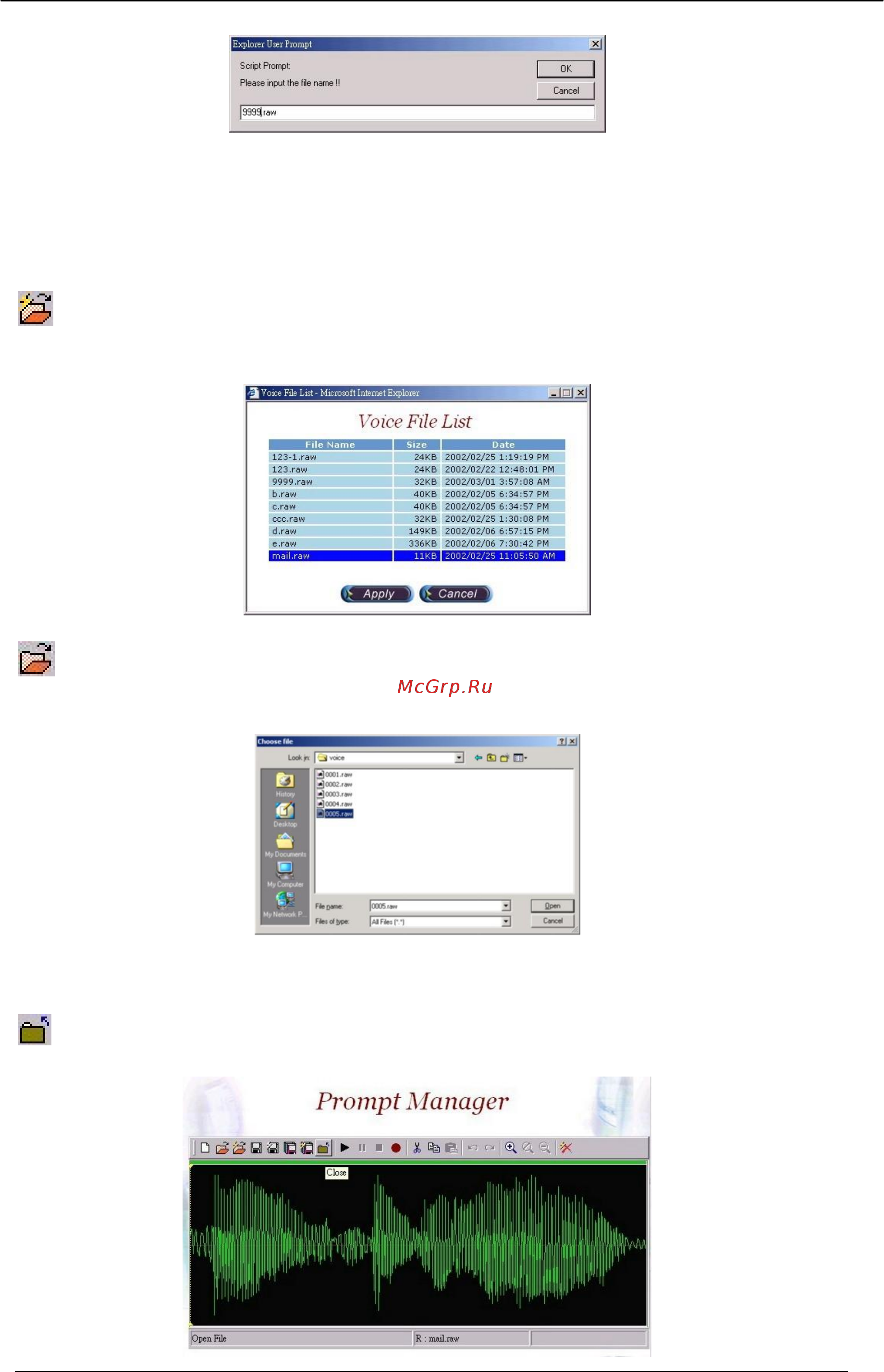

VIP-2100 User’s manual - 82 -

Figure 8.4-5

☻Note: The file name must be “ .raw” file format.

Open Remote File:

Step 5: Click Open Remote File button to open voice file at VIP-2100 and

screen shows Voice File List as figure 8.4-6.

Figure 8.4-6

Open:

Step 6: Click Open button to open local host voice file and screen shows

Choose File as figure 8.4-7.

Figure 8.4-7

Close:

Step 7: Click Close button to close the voice file as figure 8.4-8.
