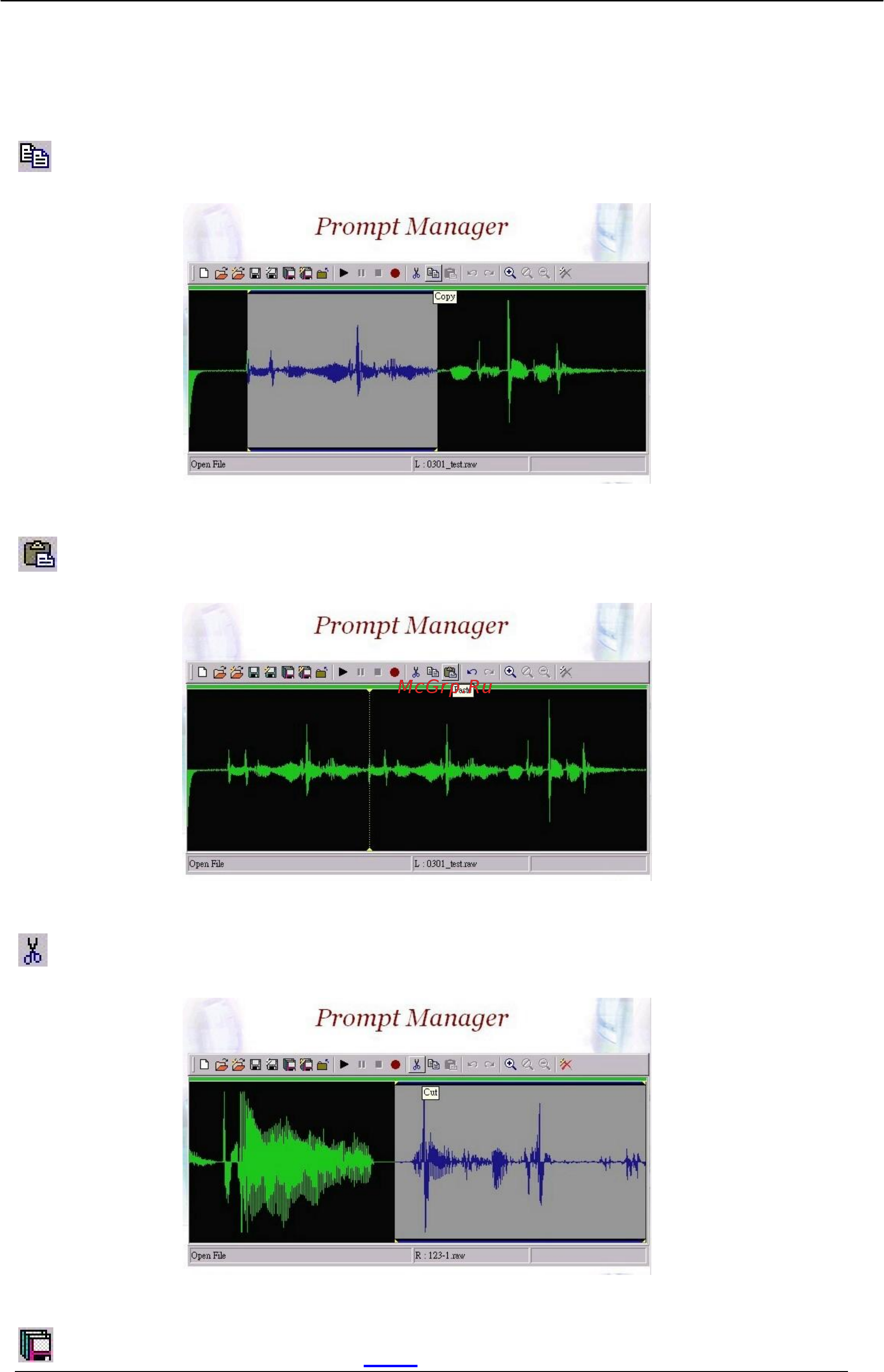

VIP-2100 User’s manual - 83 -

Figure 8.4-8

Copy:

Step 8: Select the desired voice range and click Copy button as figure 8.4-9

8.4-9

Paste:

Step 9: Click Paste button to paste the voice range as figure 8.4-10.

Figure 8.4-10

Cut:

Step 10: Select the desired voice range and click Cut button as figure 8.4-11.

Figure 8.4-11

Save As: Refer the Section “Save”
