WSG-404 User Guide

3. CTS Protection Mode: The default value is Disable. When enabled, a protection

mechanism will ensure that the 802.11b devices can connect to Access Point and not be

affected by many other 802.11g devices existing at the same time. However, the

performance of this 802.11g devices may decrease.

4. Basic Rate: The basic rate offers three options, All, Set1 and Set2 and the default value is

Set1. Depending on the wireless mode selected, PLANET WSG-404 will deliver a

pre-defined data rate. Select “All” to activate all transmission rates to be compatible with

the majority of the devices.

5. Beacon Interval: Enter a value between 20 and 1000 msec. The default value is 100

milliseconds. The entered time means how often the signal transmission occurs between the

access point and the wireless network.

6. RTS Threshold: Ready To Send threshold. The range is from 256 to 2346 and the default is

OFF. The administrator could set the value which is the time to wait before sending another

packet. It is recommended that the value remains in the range of 256 to 2346.

7. Fragmentation Threshold: The range is from 256 to 2346 and the default is OFF. The

value specifies the maximum size of packet allowed before data is fragmented into multiple

packets. It should be remained in the range of 256 to 2346. A smaller value results smaller

packets but with a larger numbers of packets in transmission.

8. DTIM Interval: This function indicates the interval of the Delivery Traffic Indication Message

(DTIM). DTIM is a countdown function to inform clients to listen to broadcast and multicast

messages. When an Access Point has buffered broadcast or multicast message from an

associated client, it sends the next DTIM at this interval rate (from 1~255), the client will hear

the beacons.

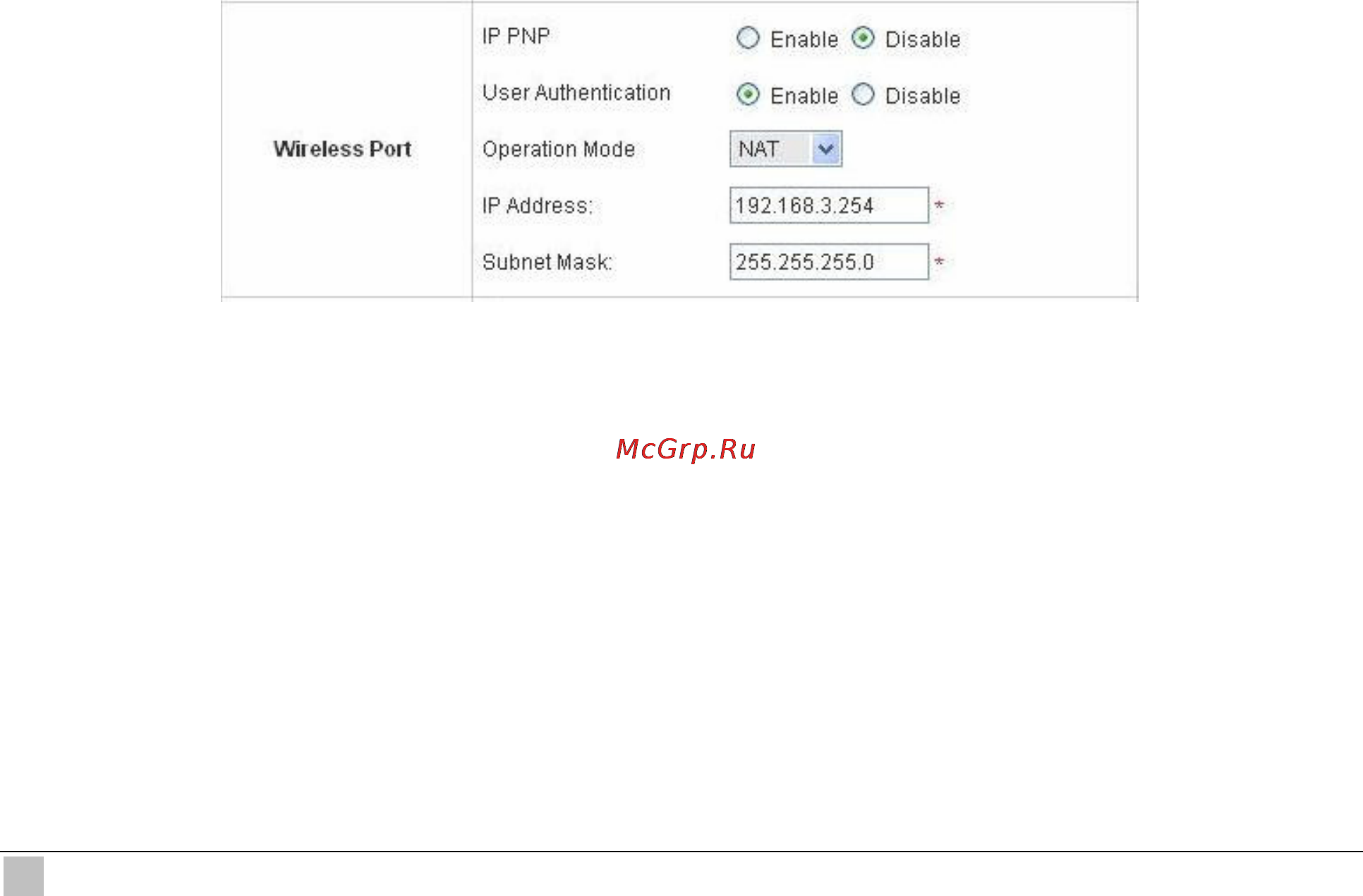

 Wireless Port

IP PNP: Use any IP address to connect to the system. Regardless of what the IP address at the

users end is, they can still be authenticated through PLANET WSG-404 and access the

network.

User Authentication: If “User Authentication” is disabled, “Specific Route Profile” needs to

be specified for the users to access Internet.

Operation Mode: Choose one of the two modes, NAT mode and Router mode, by the

requirements.

IP Address: Enter desired IP address for the wireless port.
