Wireless Subscriber Gateway

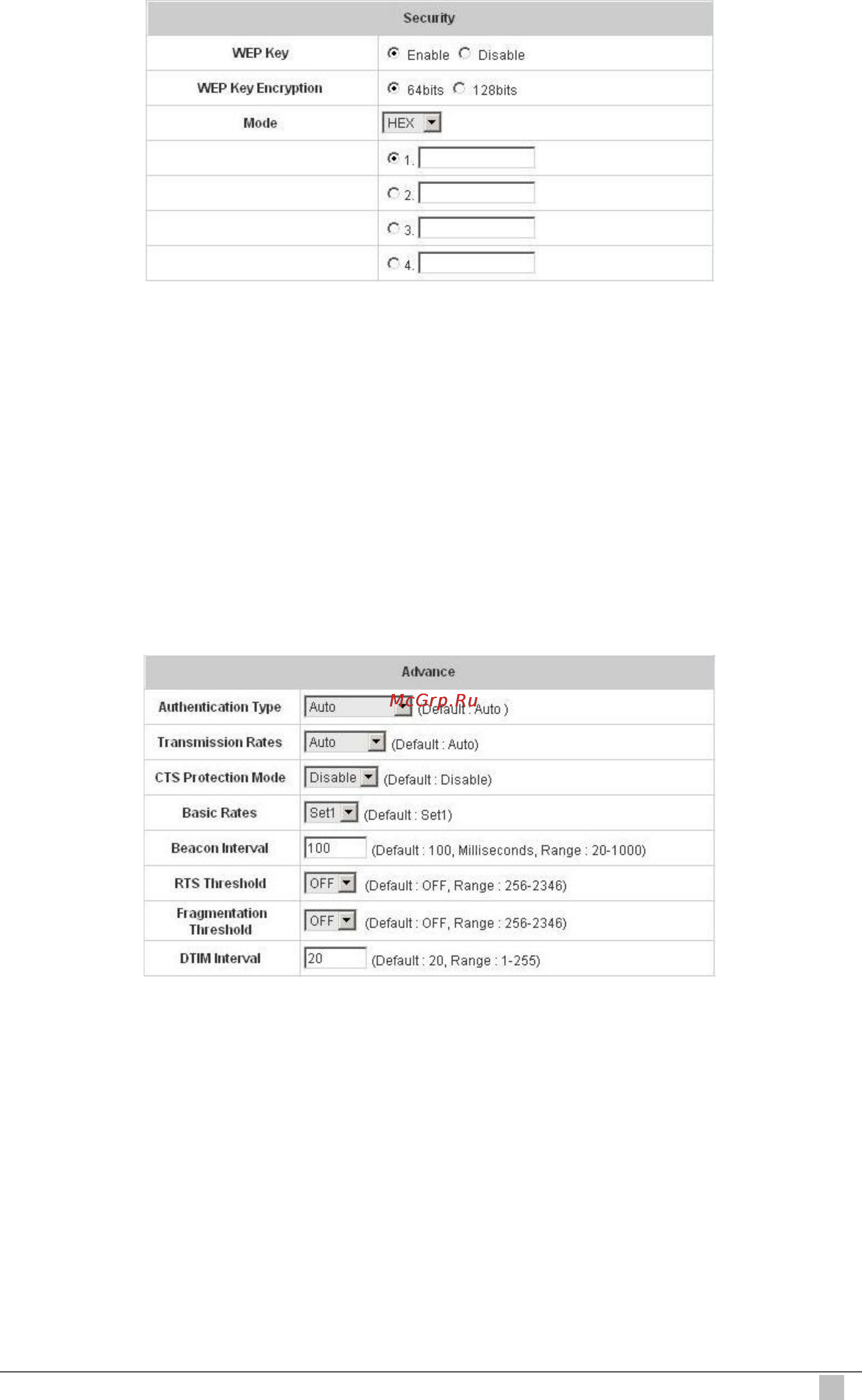

1. WEP Key: Wired Equivalent Privacy. If using this function is desired, please choose

“Enable”.

2. WEP Key Encryption: This is a data privacy mechanism based on a 64-bit or 128-bits

shared key algorithm.

3. Mode: There are two types of encryption, HEX and ASCII. After selecting one of them,

please enter the related information in the blanks below.

Advance: For advance settings in detail, please click the hyperlink Advance to go into the

Advance page.

1. Authentication Type: The default value is Auto. When “Auto” is selected, it will

auto-detect to authenticate by Shared Key type or Open System type. Shared Key is used

such that both the sender and the recipient share a WEP key for authentication. Open Key

is that the sender and the recipient do not share a WEP key for authentication. All points on

the network must use the same authentication type.

2. Transmission Rates: The default value is Auto. The range is from 1 to 54Mbps. The rate of

data transmission should be set depending on the speed of this particular wireless network.

Select from a range of transmission speeds or keep the default setting, Auto, to make the

Access Point use the fastest possible data rate automatically.
