Wireless Subscriber Gateway
79
Firewall Profile

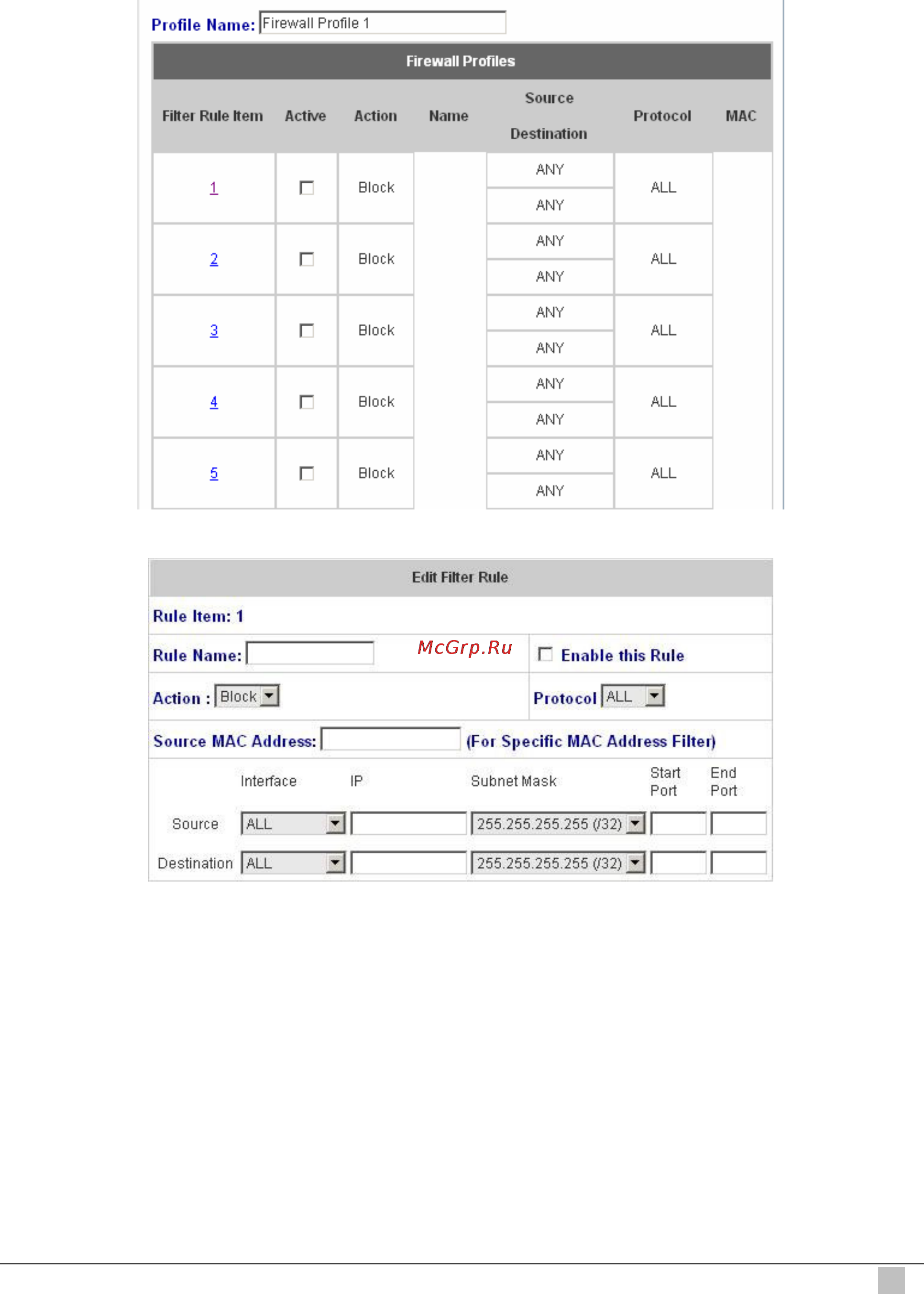

Click the hyperlink of Setting for Firewall Profile, the Firewall Profiles list will appear. Click the
numbers of Filter Rule Item to edit individual rules and click Apply to save the settings. The
rule status will show on the list. Check “Active” to enable that rule.
Rule Item: This is the rule selected.
Rule Name: The rule name can be changed here.
Enable this Rule: After checking this function, the rule will be enabled.
Action: There are two options, Block and Pass. Block is to prevent packets from passing and
Pass is to permit packets passing.
Protocol: There are three protocols to select, TCP, UDP and ICMP, or choose ALL to use all
three protocols.
