WSG-404 User Guide
80
Source MAC Address: The MAC address of the source IP address. This is for specific MAC
address filter.
Source/Destination Interface: There are five interfaces to choose, ALL, WAN, Wireless,
Public LAN (LAN1/LAN2) and Private LAN (LAN3/LAN4).
Source/Destination IP: Enter the source and destination IP addresses.
Source/Destination Subnet Mask: Enter the source and destination subnet masks.
Source/Destination Start/End Port: Enter the range of source and destination ports.

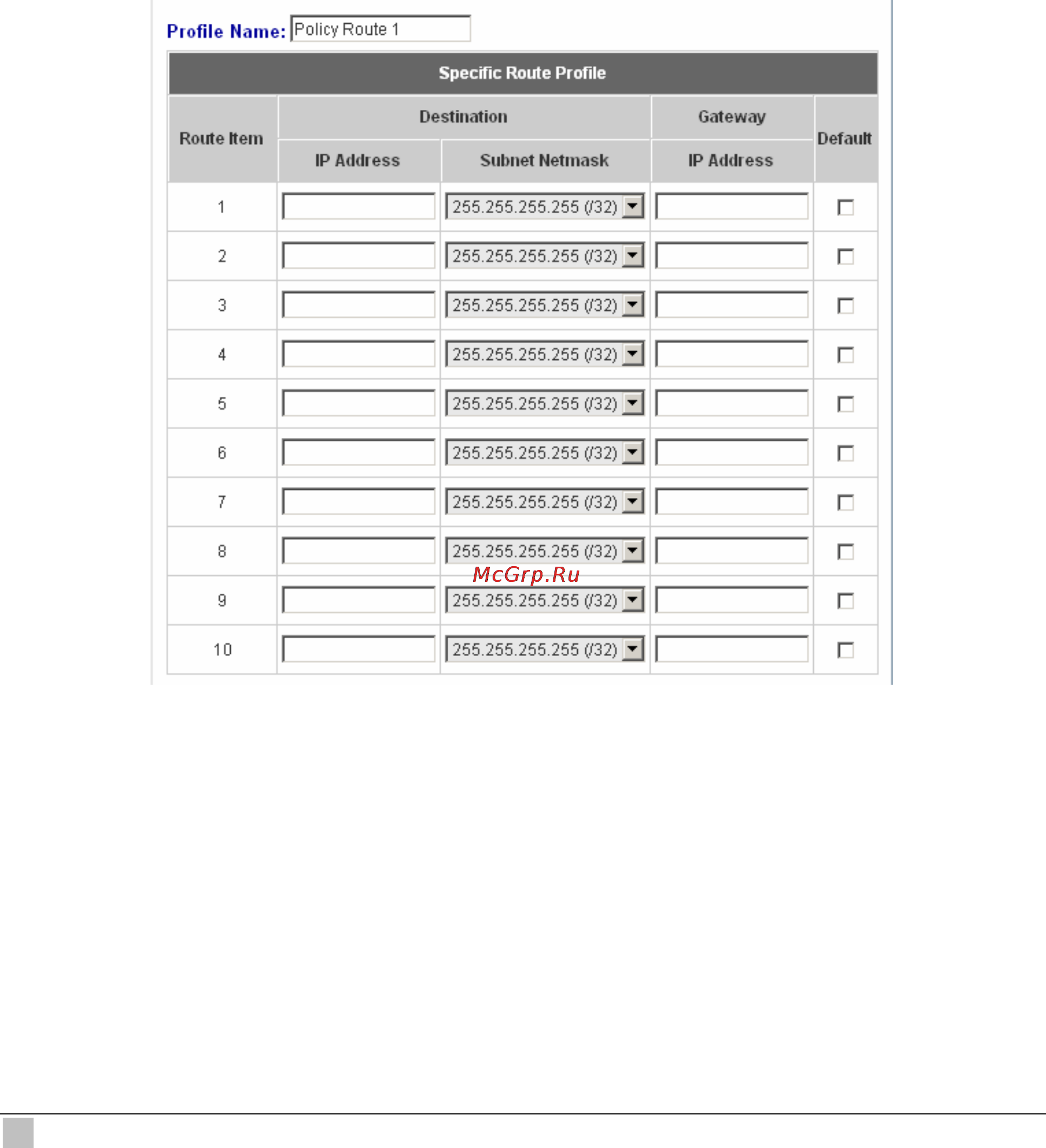

Specific Route Profile
Click the hyperlink of Setting for Specific Route Profile, the Specific Route Profile list will
appear.
Profile Name: The profile name can be changed here.
IP Address: The destination IP address of the host or the network.
Subnet Netmask: Select a destination subnet netmask of the host or the network.
IP Address: The IP address of the next router to the destination.
Default: Check this option to apply the default value.
