Wireless Subscriber Gateway
81

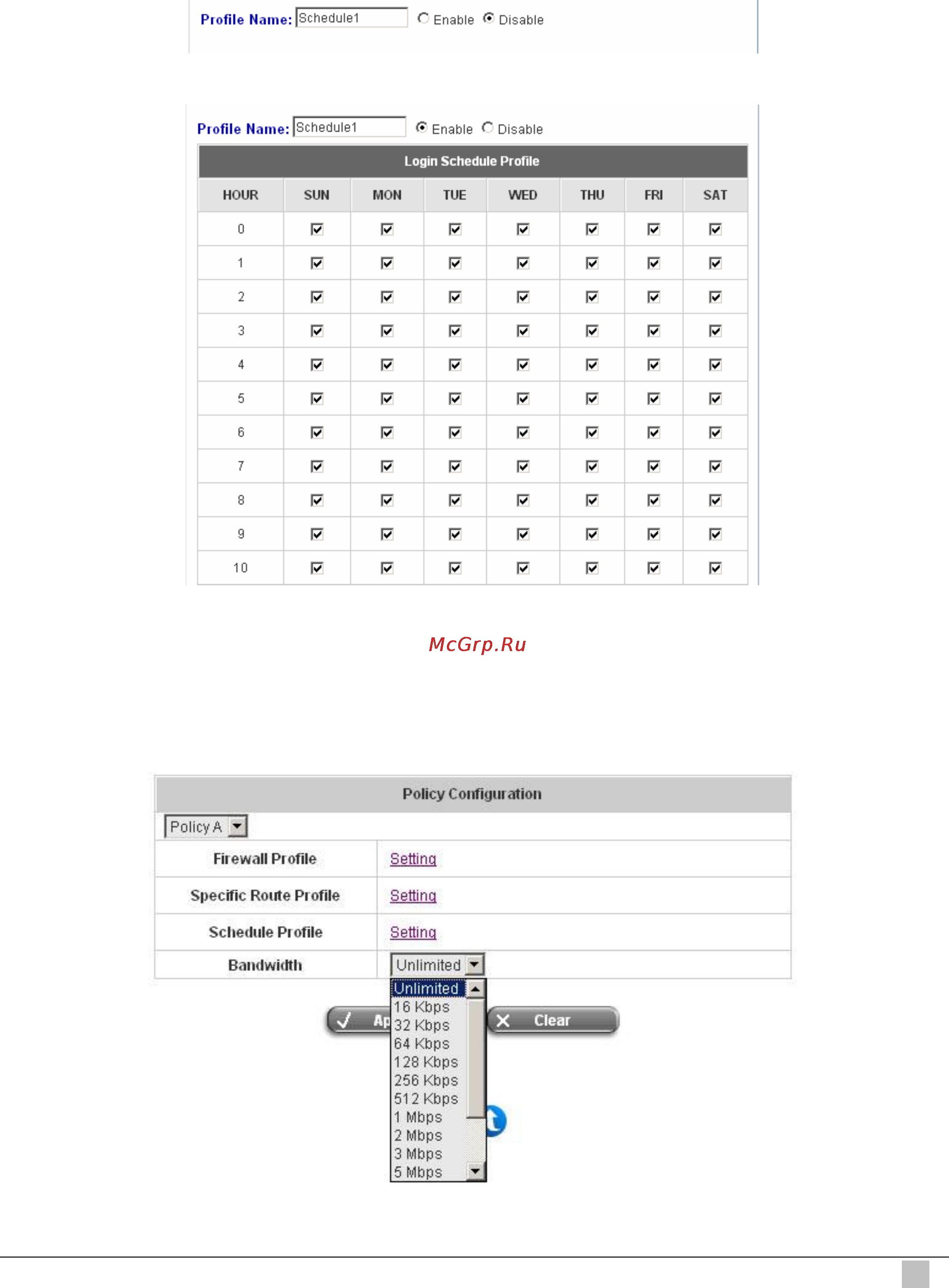

Schedule Profile
Click the hyperlink of Setting for Schedule Profile to enter the Schedule Profile list. Select
“Enable” to show the list. This function is used to restrict the time the users can log in. Please
enable/disable the desired time slot and click Apply to save the settings. These settings will
become effective immediately after clicking the Apply button.
Bandwidth
Choose one bandwidth limit for that particular policy.
