Wireless Subscriber Gateway
95

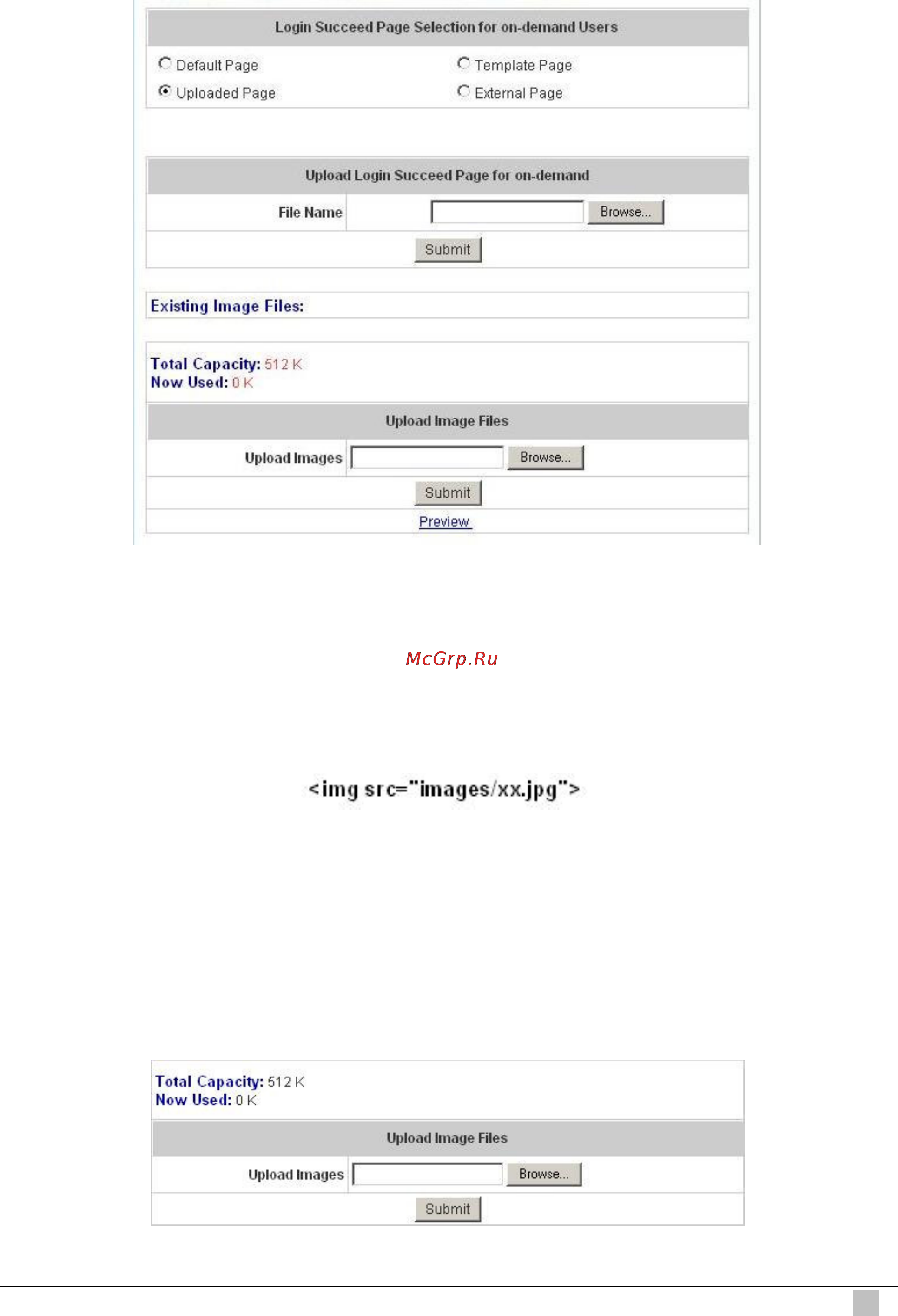

c. Choose Uploaded Page and click the Browse button to select the file for the login
succeed page for On-Demand upload. Then click Submit to complete the upload
process.
After the upload process is completed, the new login succeed page for On-Demand can be
previewed by clicking Preview button at the bottom.
If the user-defined login succeed page for On-Demand includes an image file, the image file
path in the HTML code must be the image file to be uploaded.
Enter or browse the filename of the images to upload in the Upload Images field on the
Upload Images Files page and then click Submit. The system will show the used space
and the maximum size of the image file of 512K. If the administrator wishes to restore the
factory default of the login succeed page for On-Demand, click the Use Default Page button
to restore it to default.
