WSG-404 User Guide
96

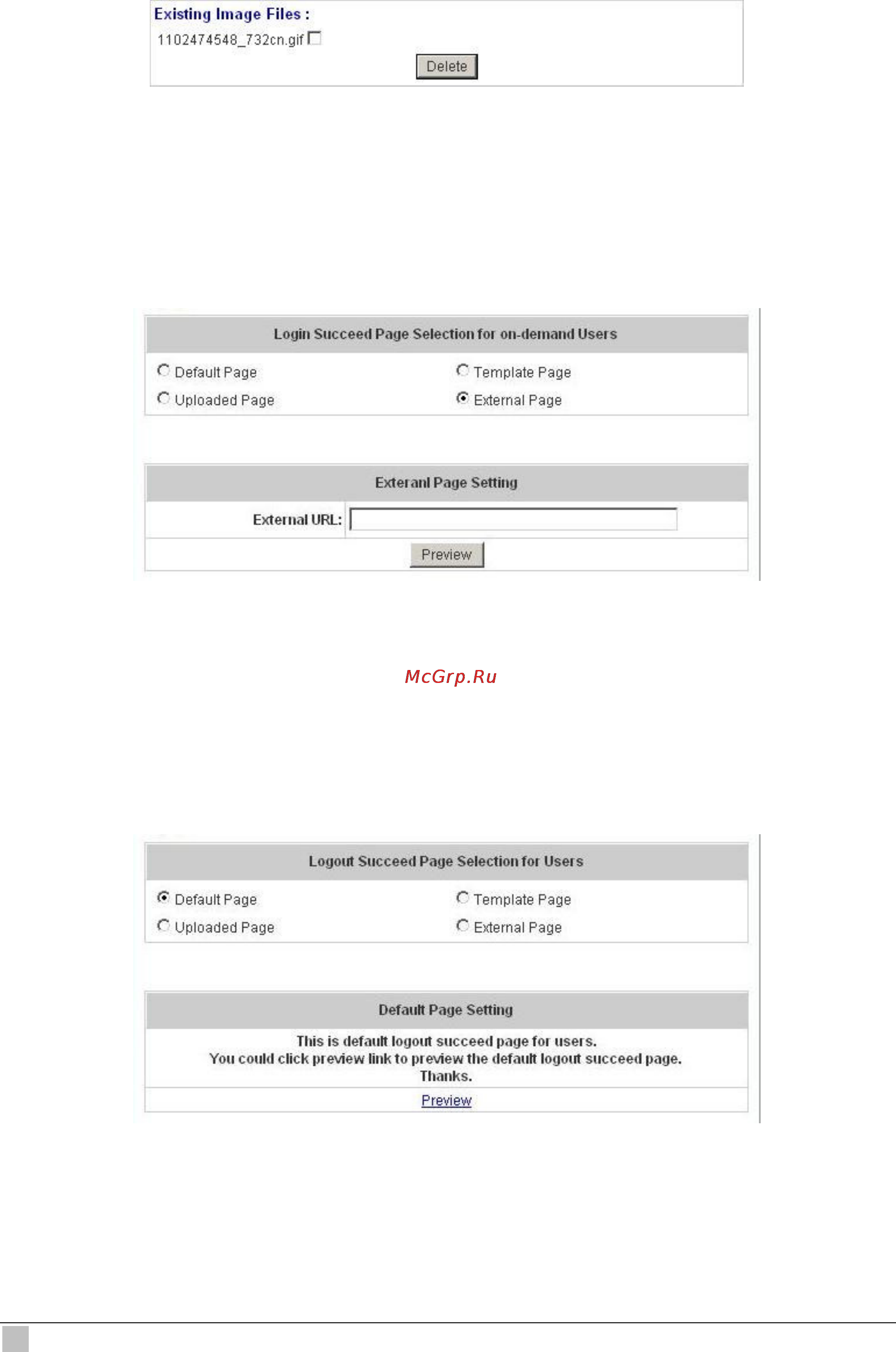

After the image file is uploaded, the file name will show on the “Existing Image Files” field.
Check the file and click Delete to delete the file.
d. Choose the External Page selection and get the login succeed page for On-Demand
from the specific website. Enter the website address in the “External Page Setting”
field and then click Apply. After applying the setting, the new login succeed page for
On-Demand can be previewed by clicking Preview button at the bottom of this page.
6. Logout Succeed Page: The administrator can use the default logout succeed page or get
the customized login succeed page by setting the template page, uploading the page or
downloading from the specific website. After finishing the setting, click Preview to see the
logout succeed page.
a. Choose Default Page to use the default logout succeed page.
