Si37-701 Refrigerant Flow for Each Operation Mode
Refrigerant Circuit 91

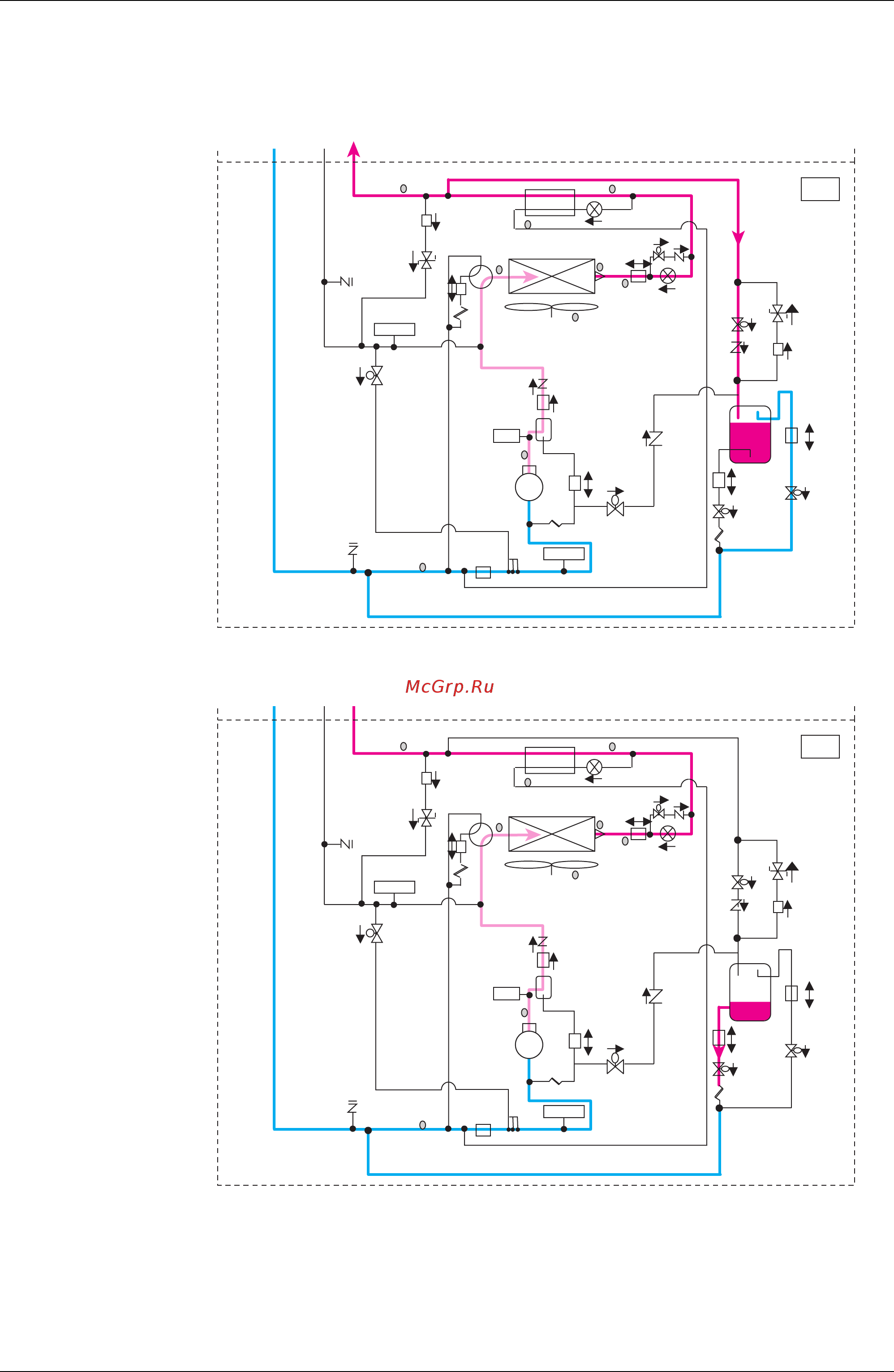

Operation of refrigerant regulator
1. Recovery of refrigerant
Surplus refrigerant is recovered to refrigerant regulator by opening of SVL and SVG when
the indoor unit load is small.
2. Discharge of refrigerant
Discharge refrigerant from refrigerant regulator by opening of SVC when the load of the
outdoor unit is large.
3. Pressure regulating valve (Refrigerant regulator)
The circuit will be closed when SVL, SVO, SVG are all closed. In this case, the increased
pressure in the refrigerant regulator will be transferred to the liquid refrigerant pipe side, to
regulate the pressure.
Suction Pipe
Liquid
Pipe
Equalizing
Pipe
Refrigerant
Regulator
Right
SENPH
SENPL
HPS
EVM
EVT
Tdi
Tb
Tg
Tsc
Tsh
TL
SVP
20SA
SVE
TS_A
Tf
SVL
Pressure
regulating valve
SVO
SVG
Ta
INV
Pressure
regulating valve
Suction Pipe
Liquid
Pipe
Equalizing
Pipe
Refrigerant
Regulator
Right
SENPH
SENPL
HPS
EVM
EVT
Tdi
Tb
Tg
Tsc
Tsh
TL
SVP
20SA
SVE
TS_A
Tf
SVL
SVO
SVG
Ta
INV
