Test Operation Si37-701
160 Test Operation
Note:
The refrigerant will be charged about 30kg in one hour at outdoor temp. 30°C DB (12kg at
0°CDB).

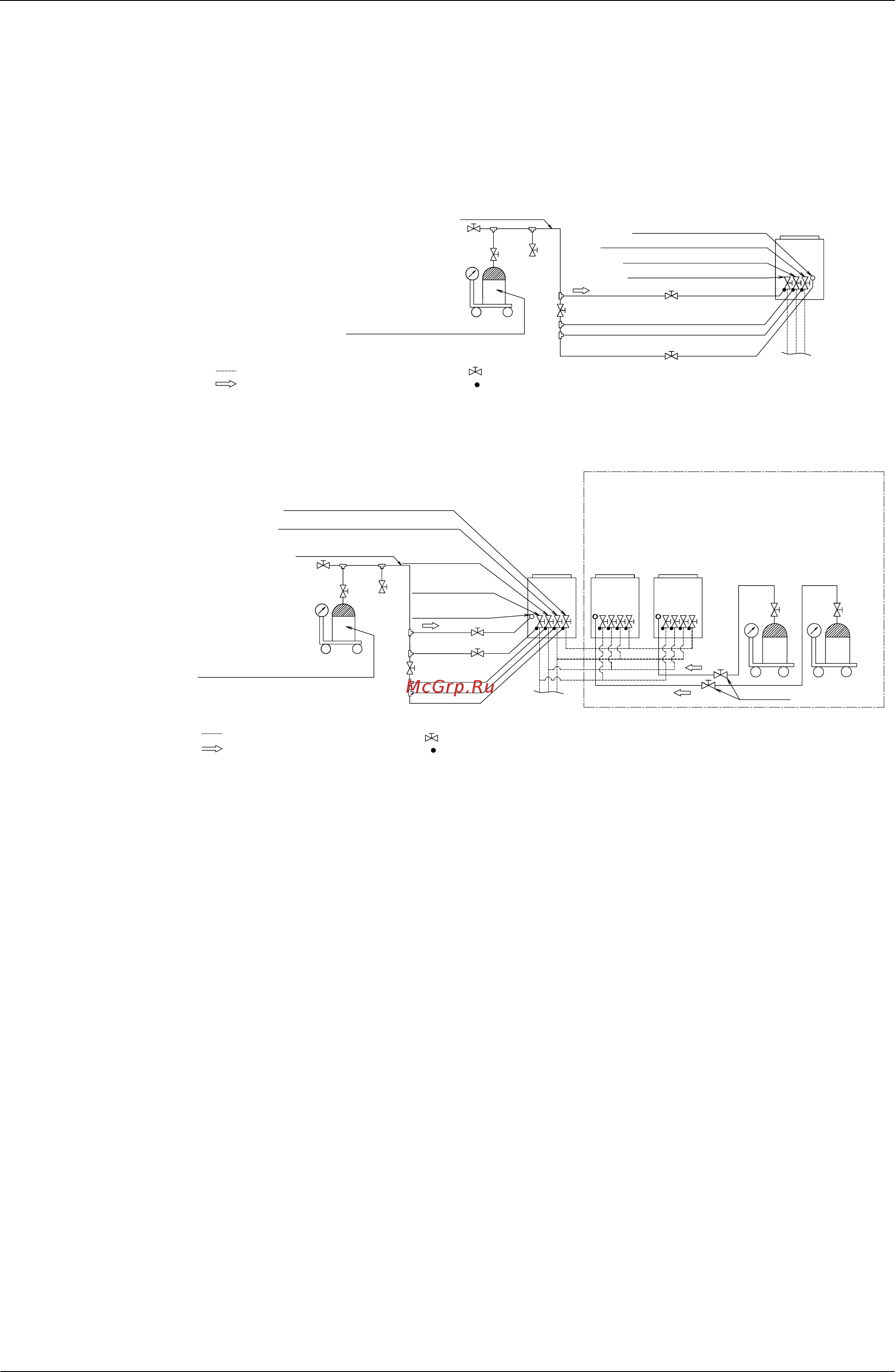

If you need to speedup in case of multi system, connect the refrigerant tanks to each outdoor
unit as shown in the next figure.
REYQ8~16PY1
REYQ18~48PY1
Refrigerant charge port
HP/LP gas pipe shutoff valve
Suction gas shutoff valve
Liquid pipe shutoff valve
Charge hose
Measuring device
R-410A tank (with siphon)
Valve A
Valve C
Valve B
Outdoor
unit
To BS, indoor unit
: Field pipings
: Refrigerant flow when charging
: Shutoff valve
( : Service port )
: Field pipings
: Refrigerant flow when charging
( : Service port )
: Shutoff valve
Measuring device
R-410A tank (with siphon)
Charge hose
Valve A
Valve A
Valve B
Valve C
Equalizer pipe shutoff valve
HP/LP gas pipe shutoff valve
Suction pipe
shutoff valve
Liquid pipe
shutoff valve
Refrigerant
charge port
Outdoor
unit A
Outdoor
unit B
Outdoor
unit C
To BS,
indoor unit
The refrigerant will be charged about 30kg in one hour at
outdoor temp. 30˚CDB (12kg at 0˚CDB). (According to
outdoor temp. or the refrigerant amount in the tank, the
charging rate may speed up). If you need to speed up in
case of multi system, connect
the refrigerant tanksto each
outdoor unit.
