Refrigerant Flow for Each Operation Mode Si37-701
92 Refrigerant Circuit

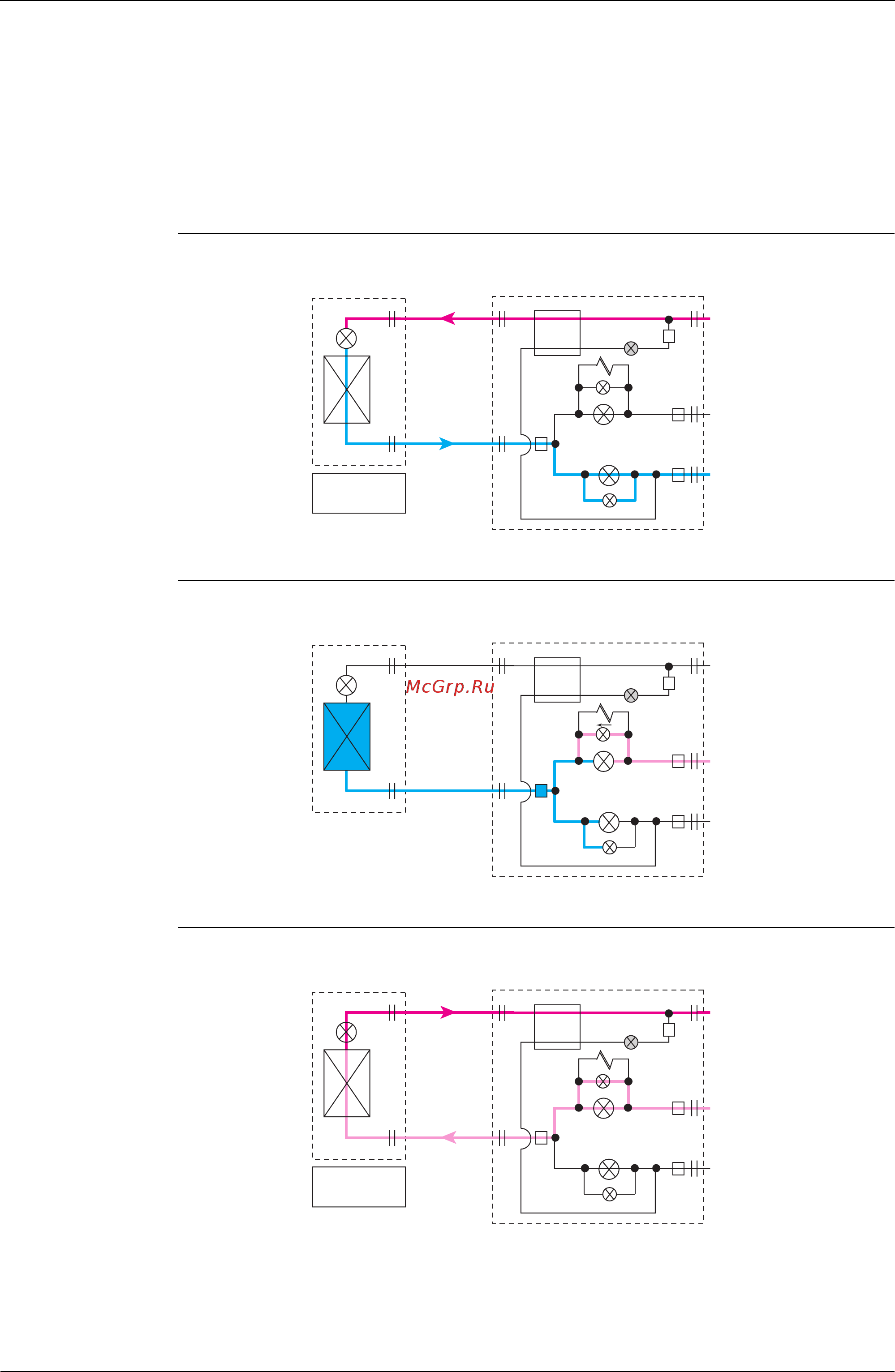

Pressure equalizing when switching operation cooling/ heating
1. When switching operation from to cooling to heating
First, the electric expansion valves for EVHS, EVH, EVL and EVLS of the indoor unit will be
closed.
Next, open the EVHS, and it makes to balance the system pressure.
Finally, EVH and EVHS are opened and the electric expansion valve of the indoor unit is
opened to start the operation as a heating circuit.
In cooling
operation
In equalization
To heating
operation
BS Unit
Indoor Unit
Cooling
Unit
EVH
EVL
EVHS
EVLS
EVSC
Suction
Pipe
Dual
Pressure
Gas Pipe
Liquid
Pipe
BS Unit
Indoor Unit
(Close)
EVH (Close)
EVL (Close)
EVHS (Open)
EVLS (Close)
EVSC
Suction
Pipe
Dual
Pressure
Gas Pipe
Liquid
Pipe
BS Unit
Indoor Unit
Heating
Unit
EVH
EVL
EVHS
EVLS
EVSC
Suction
Pipe
Dual
Pressure
Gas Pipe
Liquid
Pipe
