Field Setting Si37-701
186 Test Operation

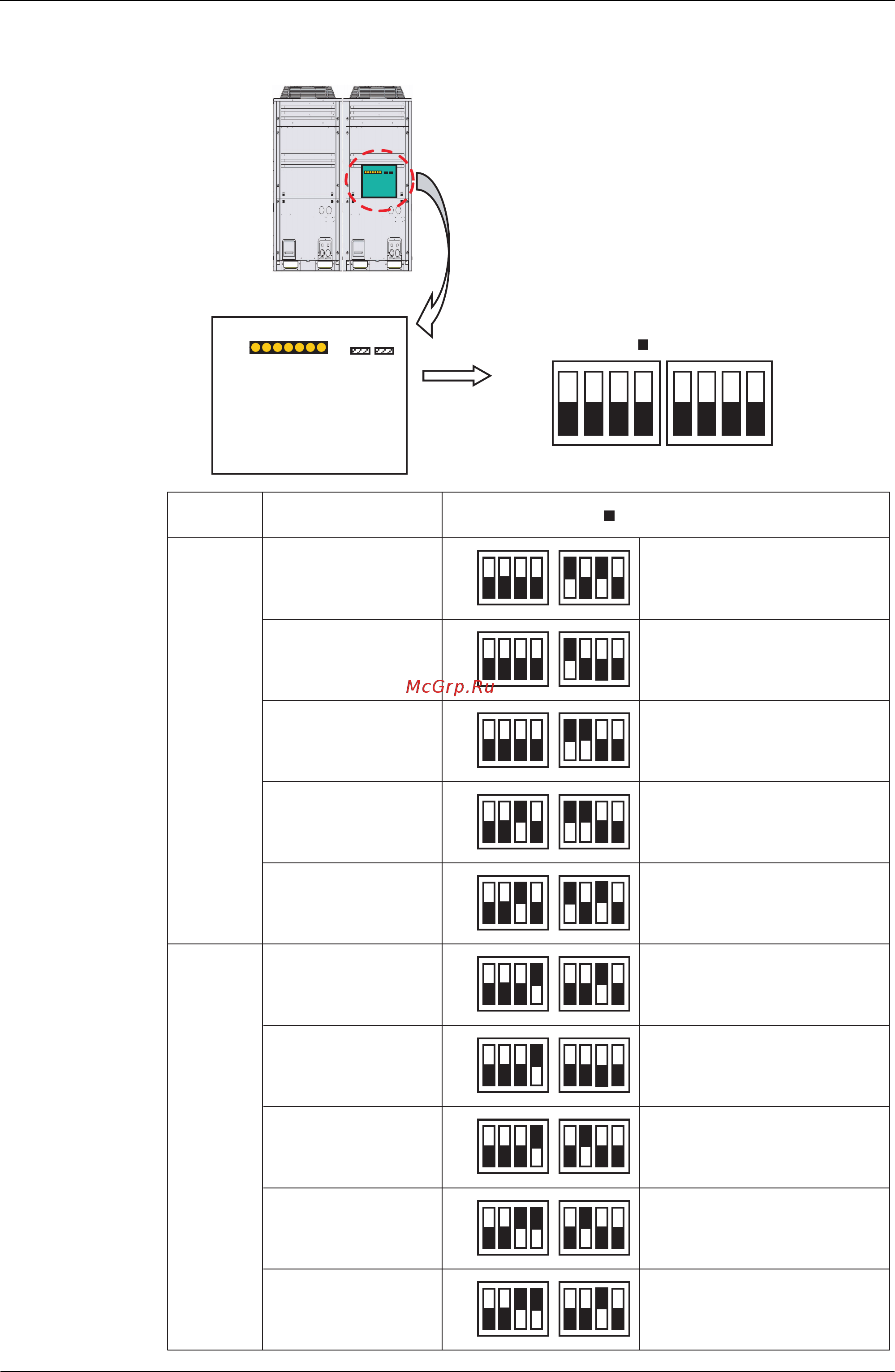

“Detail of DS1-1~4, DS2-1~4 setting” (for Overseas general)
DS1 DS2
LED
EB****
1234
DS1
1234
DS2
Factory Set ( represents the position of switches)
ON
OFF
Application modelAllocation
General
overseas
For Europe
Setting method ( represents the position of switches)
HEAT RECOVERY(8HP)
REYQ8PY1
Set DS2-1 and DS2-3 to ON.
123 1234
ON
OFF
4
DS1 DS2
HEAT RECOVERY(10HP)
REYQ10PY1
Set DS2-1 to ON.
123 1234
ON
OFF
4
DS1 DS2
HEAT RECOVERY(12HP)
REYQ12PY1
Set DS2-1 and DS2-2 to ON.
123 1234
ON
OFF
4
DS1 DS2
HEAT RECOVERY(14HP)
REYQ14PY1
Set DS1-3, DS2-1 and DS2-2 to ON.
123 1234
ON
OFF
4
DS1 DS2
HEAT RECOVERY(16HP)
REYQ16PY1
Set DS1-3, DS2-1 and DS2-3 to ON.
123 1234
ON
OFF
4
DS1 DS2
HEAT RECOVERY(8HP)
REYQ8PY1B
Set DS1-4 and DS2-3 to ON.
123 1234
ON
OFF
4
DS1 DS2
HEAT RECOVERY(10HP)
REYQ10PY1B
Set DS1-4 to ON.
123 1234
ON
OFF
4
DS1 DS2
HEAT RECOVERY(12HP)
REYQ12PY1B
Set DS1-4 and DS2-2 to ON.
123 1234
ON
OFF
4
DS1 DS2
HEAT RECOVERY(14HP)
REYQ14PY1B
Set DS1-3, DS1-4 and DS2-2 to ON.
123 1234
ON
OFF
4
DS1 DS2
HEAT RECOVERY(16HP)
REYQ16PY1B
Set DS1-3, DS1-4 and DS2-3 to ON.
123 1234
ON
OFF
4
DS1 DS2
Single Use
