Si37-701 Test Operation
Test Operation 149
1.2 Procedure and Outline

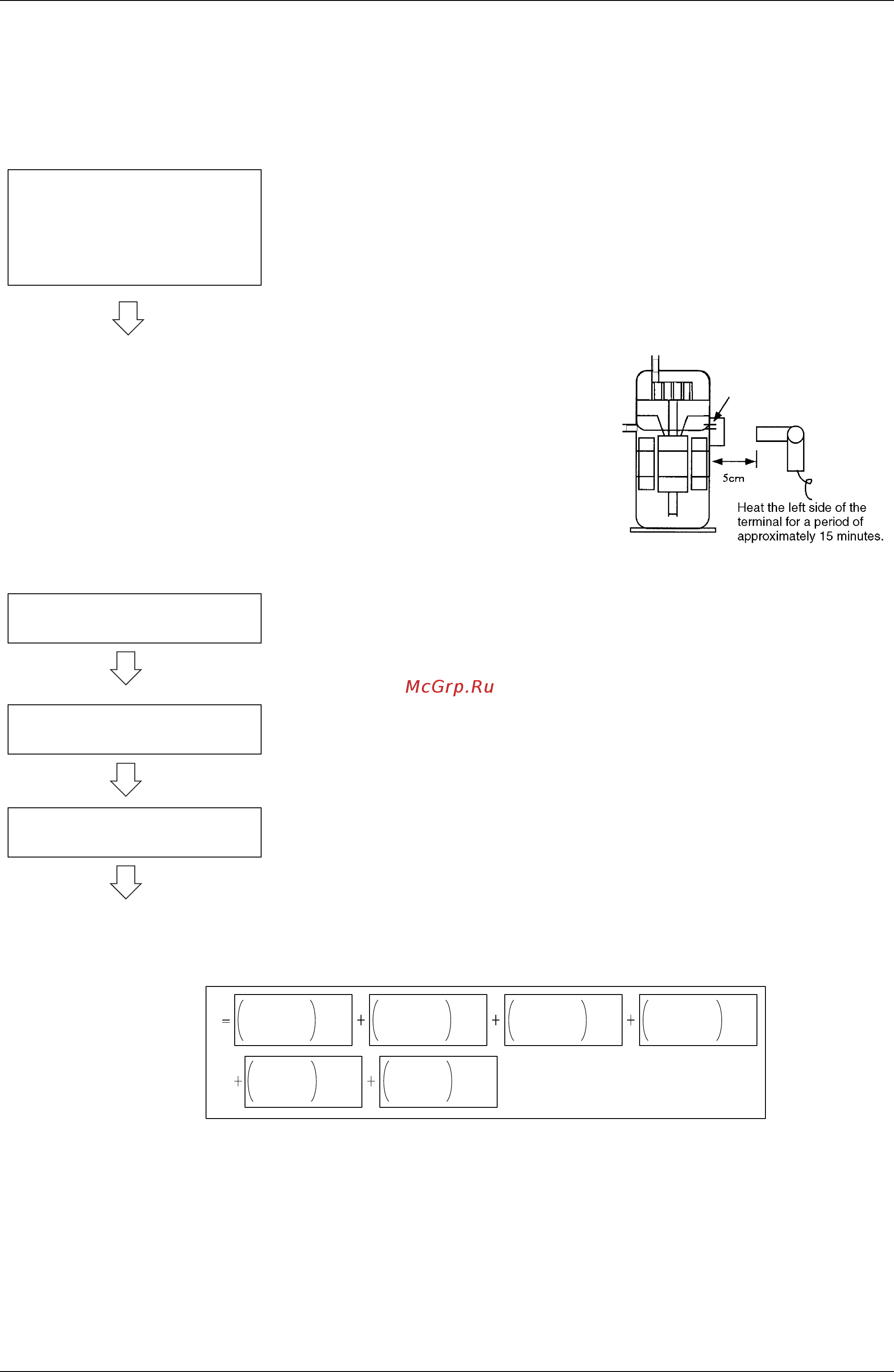

Follow the following procedure to conduct the initial test operation after installation.
1.2.1 Check Work Prior to Turn Power Supply On
•
Calculate a necessary additional refrigerant charging amount according to the procedure for
calculation shown below.
* Procedure for calculating additional refrigerant charging amount (Unit: 0.1 kg)
Check on refrigerant piping /
insulation materials
Check airtight test and vacuum
drying.
Check on amount of refrigerant
charge
Terminal
Dryer
(1000W)
Check the below items.
2Power wiring
2Control transmission wiring
between units
2Earth wire
Is the wiring performed as specified?
Is the designated wire used?
Is the wiring screw of wiring not loose?
Is the grounding work completed?
Is the insulation of the main power supply circuit deteriorated?
Use a 500V megger tester to measure the insulation. (*1)
2 Do not use a megger tester for other circuits than 200V (or
240V) circuit.
*1:Measure to be taken against decreased insulation resistance in
the compressor
If the compressor is left to stand for
an extended period of time after the
refrigerant charge with the stop valve
open and the power supply OFF, the
refrigerant may be mixed in the
compressor, thus decreasing the
insulation resistance.
Heat the compressor as shown on
the right and then recheck the
insulation.
Is the pipe size proper?
Is the pipe insulation material installed securely?
Liquid and gas pipes need to be insulated. (Otherwise causes
water leak.)
Have the airtight test and the vacuum drying been conducted
according to the procedure in the Installation Manual?
Is a proper quantity of refrigerant charged?
The following method is available for additional charging of
refrigerant.
(1) Calculate additional refrigerant quantity.
R
× 1.02
Total length of
φ22.2-mm
liquid pipe)
× 0.37
Total length
of φ9.5-mm
liquid pipe)
× 0.059
Total length
of φ6.4-mm
liquid pipe)
× 0.022
Total length of
φ19.1-mm
liquid pipe)
× 0.26
Total length of
φ15.9-mm
liquid pipe)
× 0.18
Total length of
φ12.7-mm
liquid pipe)
× 0.12
