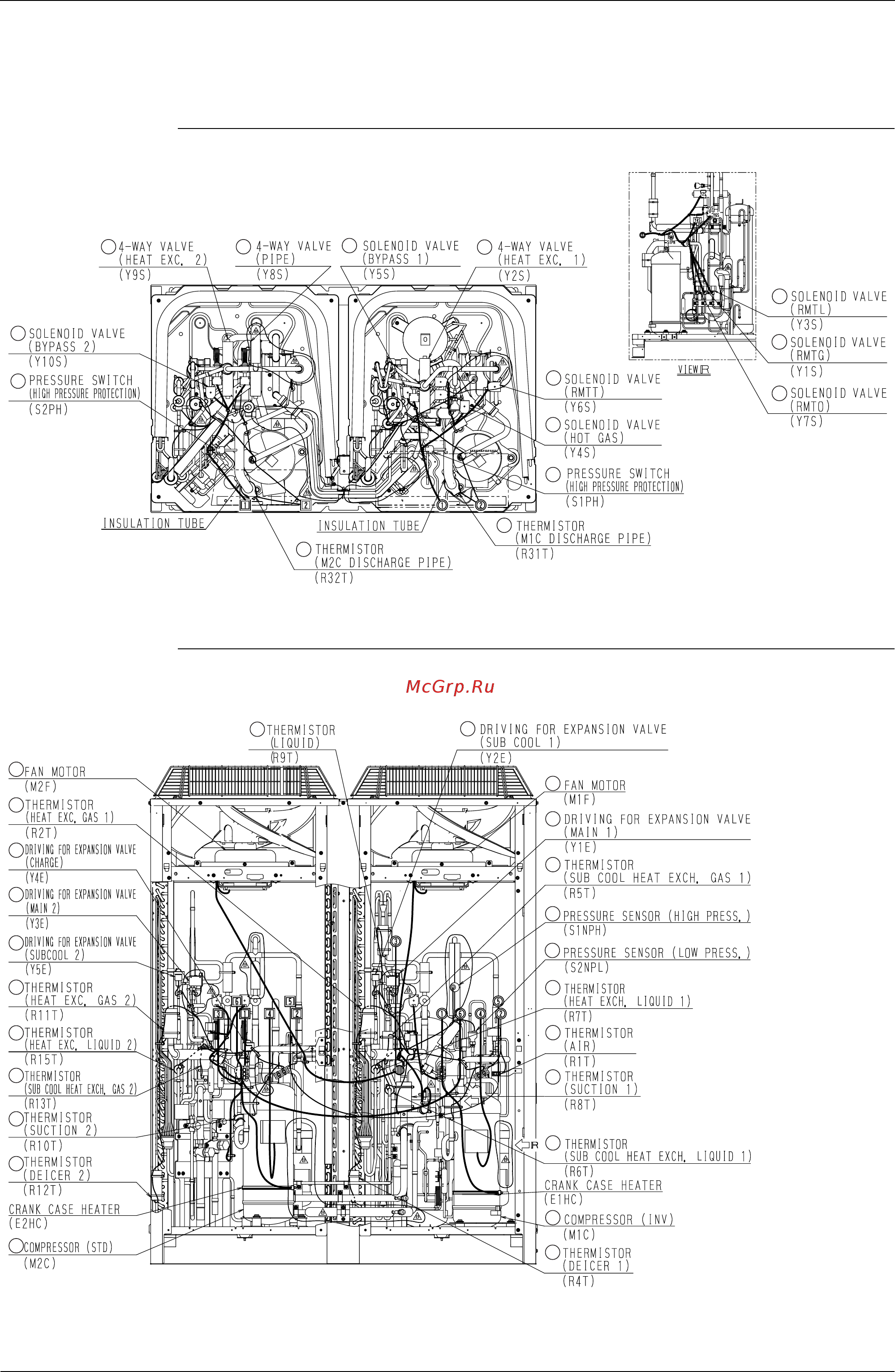

Functional Parts Layout Si37-701
62 Refrigerant Circuit
2. Functional Parts Layout
2.1 REYQ8P, 10P, 12P
Plan
Front View
1918
11
23
10
17
34
33
12
22
16
13
14
15
4
36
46
47
48
42
45
6
8
9
2
40
7
3
5
38
20
21
31
32
37
39
1
35
