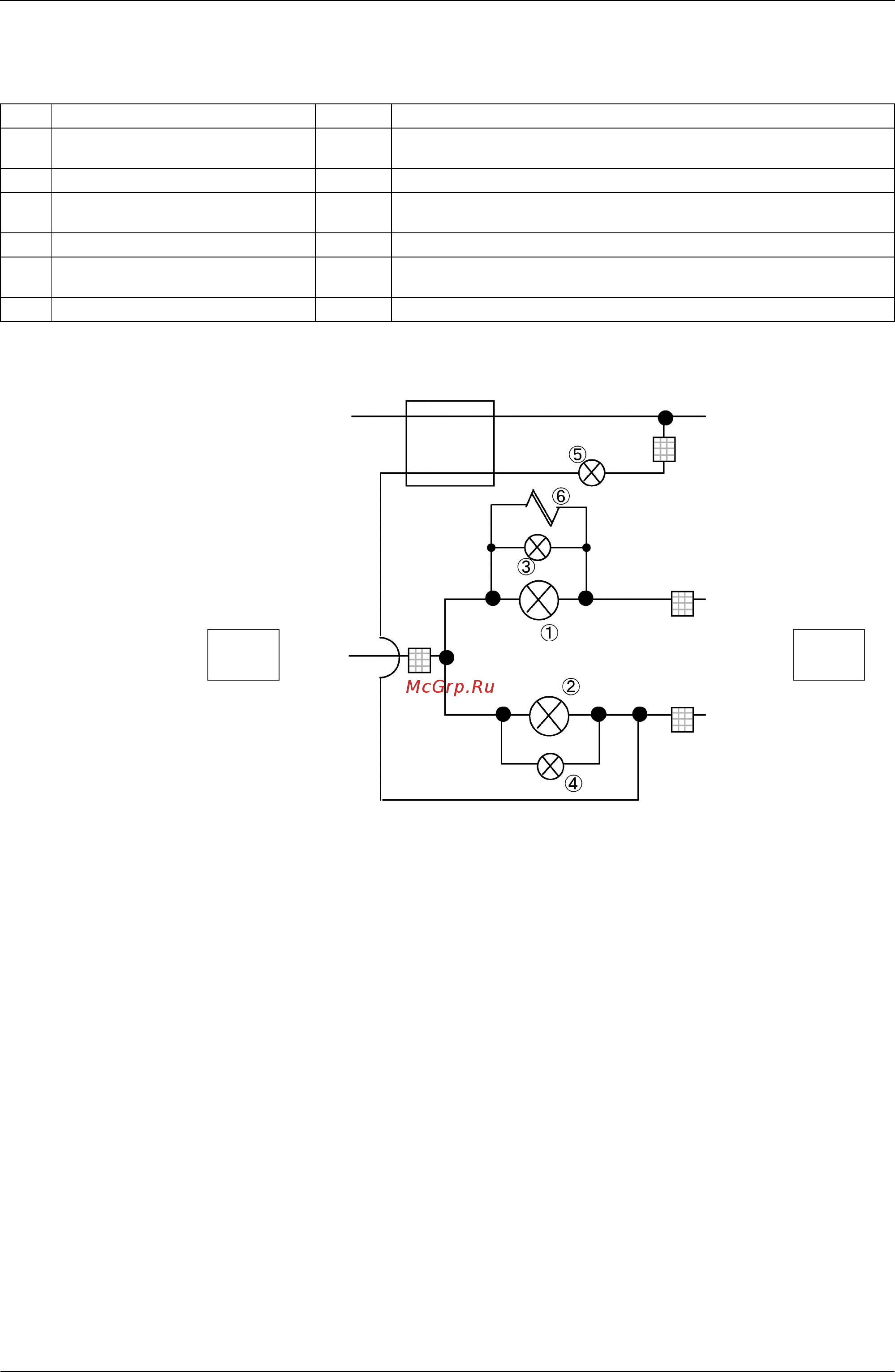

Refrigerant Circuit Si37-701
60 Refrigerant Circuit
1.6 BS Unit Functional Parts
BSVQ100,160,250PV1
Note : Factory set of all EV opening : 60pls
No. Name Symbol Function
1 Electronic expansion valve (EVH)
Y4E
Opens while in heating operation or all indoor units are in cooling
operation. (Max : 760pls)
2 Electronic expansion valve (EVL) Y5E Opens while in cooling operation. (Max : 760pls)
3 Electronic expansion valve (EVHS)
Y2E
Opens while in heating operation or all indoor units are in cooling
operation. (Max : 480pls)
4 Electronic expansion valve (EVLS) Y3E Opens while in cooling operation. (Max : 480pls)
5 Electronic expansion valve (EVSC)
Y1E
Used to subcool liquid refrigerant of heating indoor unit while in cool/
heat simultaneous operation. (Max : 480pls)
6 Capillary tube Used to bypass high pressure gas to low pressure side.
LiquidLiquid
Dual pressure
Suction
Gas
Indoor
side
Outdoor
side
