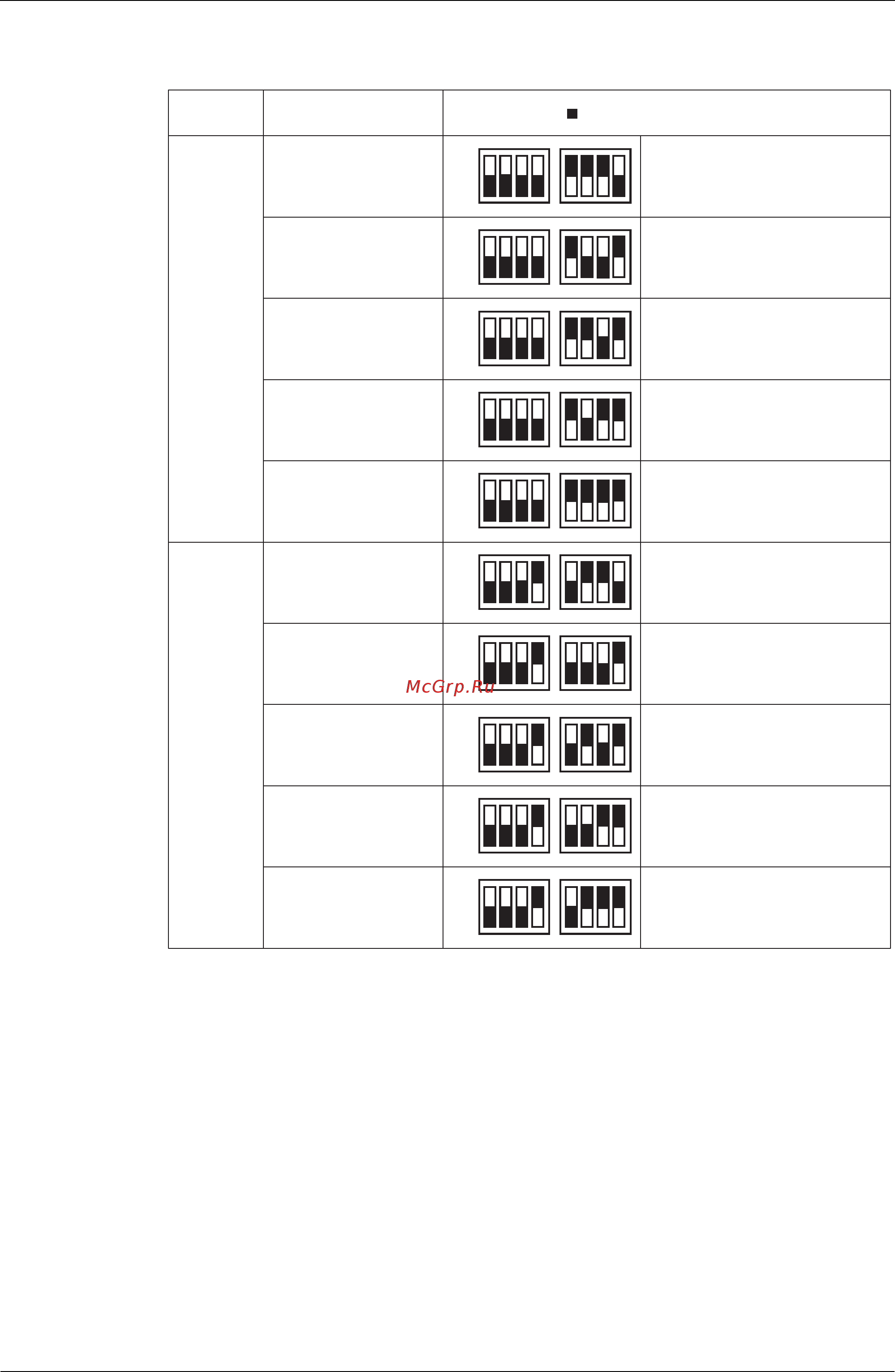

Field Setting Si37-701
188 Test Operation
Setting method ( represents the position of switches)
123 1234
ON
OFF
4
DS1 DS2
123 1234
ON
OFF
4
DS1 DS2
123 1234
ON
OFF
4
DS1 DS2
123 1234
ON
OFF
4
DS1 DS2
123 1234
ON
OFF
4
DS1 DS2
123 1234
ON
OFF
4
DS1 DS2
123 1234
ON
OFF
4
DS1 DS2
123 1234
ON
OFF
4
DS1 DS2
123 1234
ON
OFF
4
DS1 DS2
Application model
HEAT RECOVERY(8HP)
REMQ8PY1
HEAT RECOVERY(10HP)
REMQ10PY1
HEAT RECOVERY(12HP)
REMQ12PY1
HEAT RECOVERY(14HP)
REMQ14PY1
HEAT RECOVERY(16HP)
REMQ16PY1
HEAT RECOVERY(8HP)
REMQ8PY1B
HEAT RECOVERY(10HP)
REMQ10PY1B
HEAT RECOVERY(12HP)
REMQ12PY1B
HEAT RECOVERY(14HP)
REMQ14PY1B
HEAT RECOVERY(16HP)
REMQ16PY1B
Set DS2-1, DS2-2 and DS2-3 to ON.
Set DS2-1 and DS2-4 to ON.
Set DS2-1, DS2-2 and DS2-4 to ON.
Set DS2-1, DS2-3 and DS2-4 to ON.
Set DS2-1, DS2-2, DS2-3 and
DS2-4 to ON.
Set DS1-4, DS2-2 and DS2-3 to ON.
Set DS1-4 and DS2-4 to ON.
Set DS1-4, DS2-2 and DS2-4 to ON.
Set DS1-4, DS2-3 and DS2-4 to ON.
Set DS1-4, DS2-2, DS2-3 and
DS2-4 to ON.
123 1234
ON
OFF
4
DS1 DS2
Multiple Type
Allocation
General
overseas
For Europe
