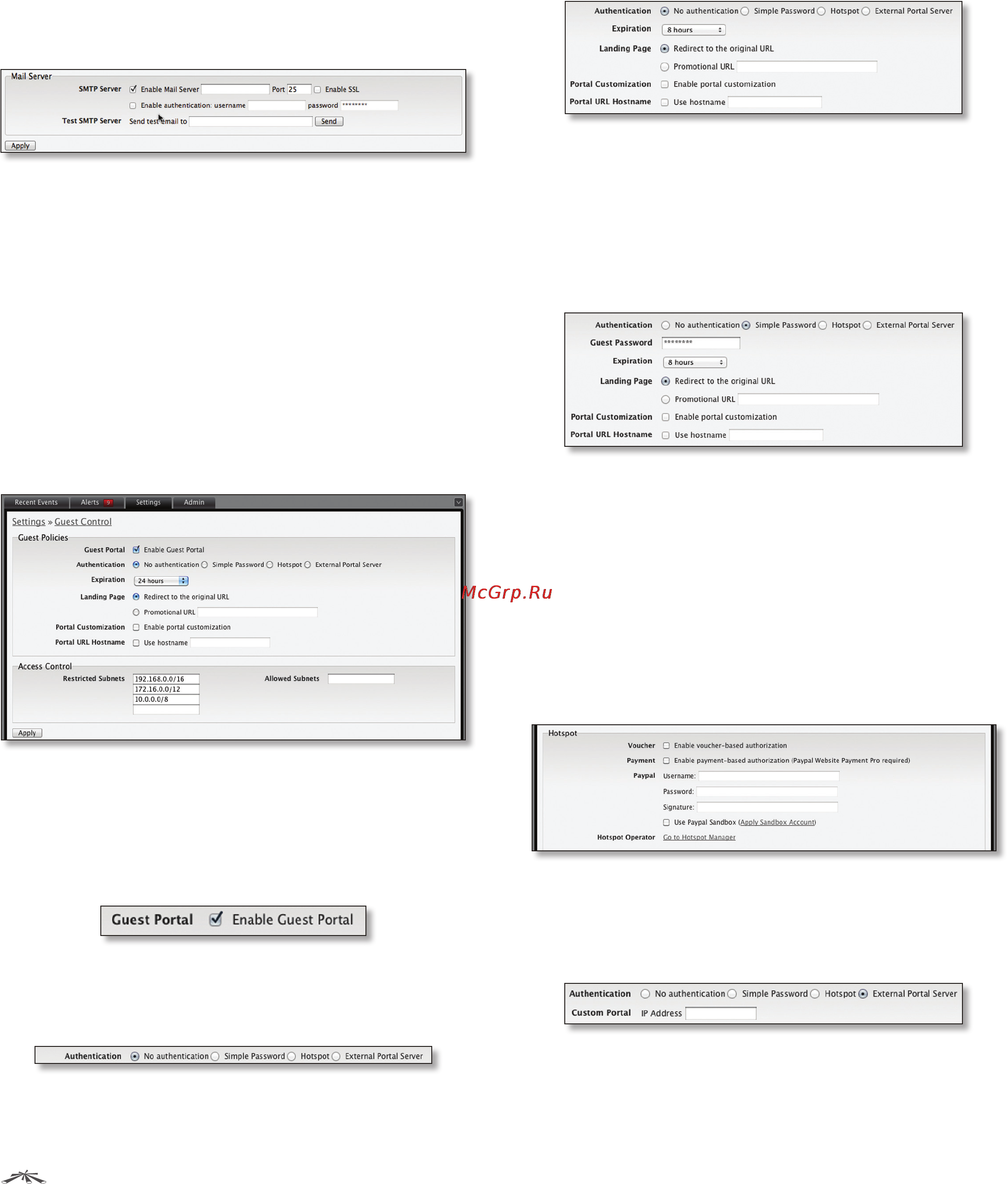

Ubiquiti UniFi AP Outdoor [12/58] Guest control
![Ubiquiti UniFi AP Outdoor [12/58] Guest control](/views2/1072883/page12/bgc.png)
9
Chapter 3: Using the UniFi Controller SoftwareUniFi
™
AP-Outdoor User Guide
Ubiquiti Networks, Inc.
Remote Logging Enable to define a remote syslog server.
Enter the IP address and port of the syslog server.
Click Apply to save any changes that you have made.
Mail Server
When enabled, UniFi will send email alerts when triggered
(Pending Access Points and Disconnected Access Points)
to the administrator email address specified under
Settings>Admin Settings > Admin Preferences > Email Alert.
SMTP Server Enable by selecting the checkbox
and entering the outgoing (SMTP) mail server name.
Optionally, you may enable Secure Sockets Layer (SSL) to
provide communication security over the Internet. The
port number will automatically change to 465.
Enable authentication Enable by selecting the checkbox
and entering the username and password required by the
mail server.
Test SMTP Server Enter an email address and click Send
to test the mail server setup.
Apply Click Apply to save changes.
Settings > Guest Control
Guest Policies
Guest Portal This option is disabled by default. When
disabled, guests can access the Internet without entering
a password or accepting Terms of Use. When this option is
enabled, you can control the Guest Portal.
Authentication When the Guest Portal is enabled, the
authentication options will appear. There are four different
authentication methods available:
• No authentication When this option is selected, guests
are not required to log in, but must accept the Terms
of Use. When you select No authentication, you must
select Guest Policy under Settings > Wireless Networks >
SSID > Edit > Wireless Configurations in order to enforce
selection of the Terms of Use by the guest.
• Simple Password When this option is selected, guests
are required to enter the simple password and accept
the Terms of Use. When you select Simple Password,
you must select Guest Policy under Settings > Wireless
Networks > SSID > Edit > Wireless Configurations in order
to enforce entry of the password and selection of the
Terms of Use by the guest.
• Hotspot When selected, enables Hotspot functionality
including the ability to customize portal login pages and
bill customers using major credit cards or via PayPal™.
When you select Hotspot, you must select:
• Voucher or Payment in the Hotspotsectionasa
method of Hotspot authorization
• Guest Policy to enforce entry of voucher, payment,
and Terms of Use by the guest (Go to Settings >
Wireless Networks > Name_of_wireless_network > Edit >
Wireless Configurations.)
• External Portal Server If using an external server
to host a custom guest portal, enter the IP address in
the Custom Portal > IP Address box using the following
format: 192.168.0.0.
• Guest Password (Option only available when using
Simple Password authentication) Enter a password that
guests must enter before accepting the Terms of Use
and connecting to the Internet.
