Chapter 4: Map TabUniFi

™

AP-Outdoor User Guide

Ubiquiti Networks, Inc.

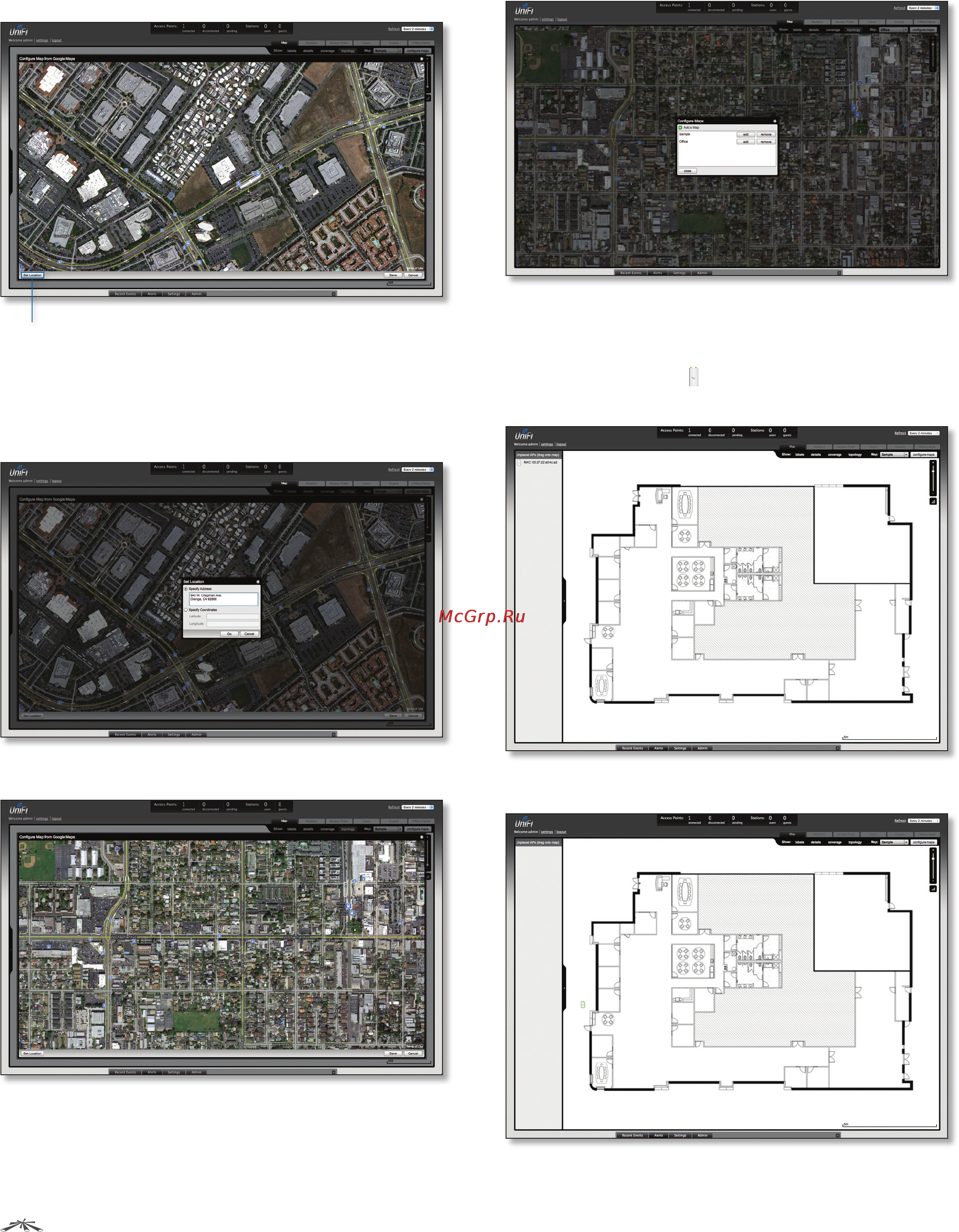

13. The default Google Map location will appear. Click the

Set Location button in the lower left.

Set Location button

14. Select Specify Address to enter an address. Type in the

address and then click Go. You also have the Specify

Coordinates option to enter the latitude and longitude

of a specific location.

15. The specified location should appear. Click Save.

16. Click Close.

17. You can adjust the zoom using the slider on the right.

Placing Access Points on the Map

1. Drag the Access Point icon(s) from the Unplaced APs list

on the left to the appropriate location(s) on the map.

The access point will appear in the area that you placed it.
