Ubiquiti UniFi AP Outdoor [38/58] Network
![Ubiquiti UniFi AP Outdoor [38/58] Network](/views2/1072883/page38/bg26.png)
35
Chapter 10: Access Point DetailsUniFi
™
AP-Outdoor User Guide
Ubiquiti Networks, Inc.
Network
The Access Point can be configured to obtain an IP address
automatically or configured with a static IP address.

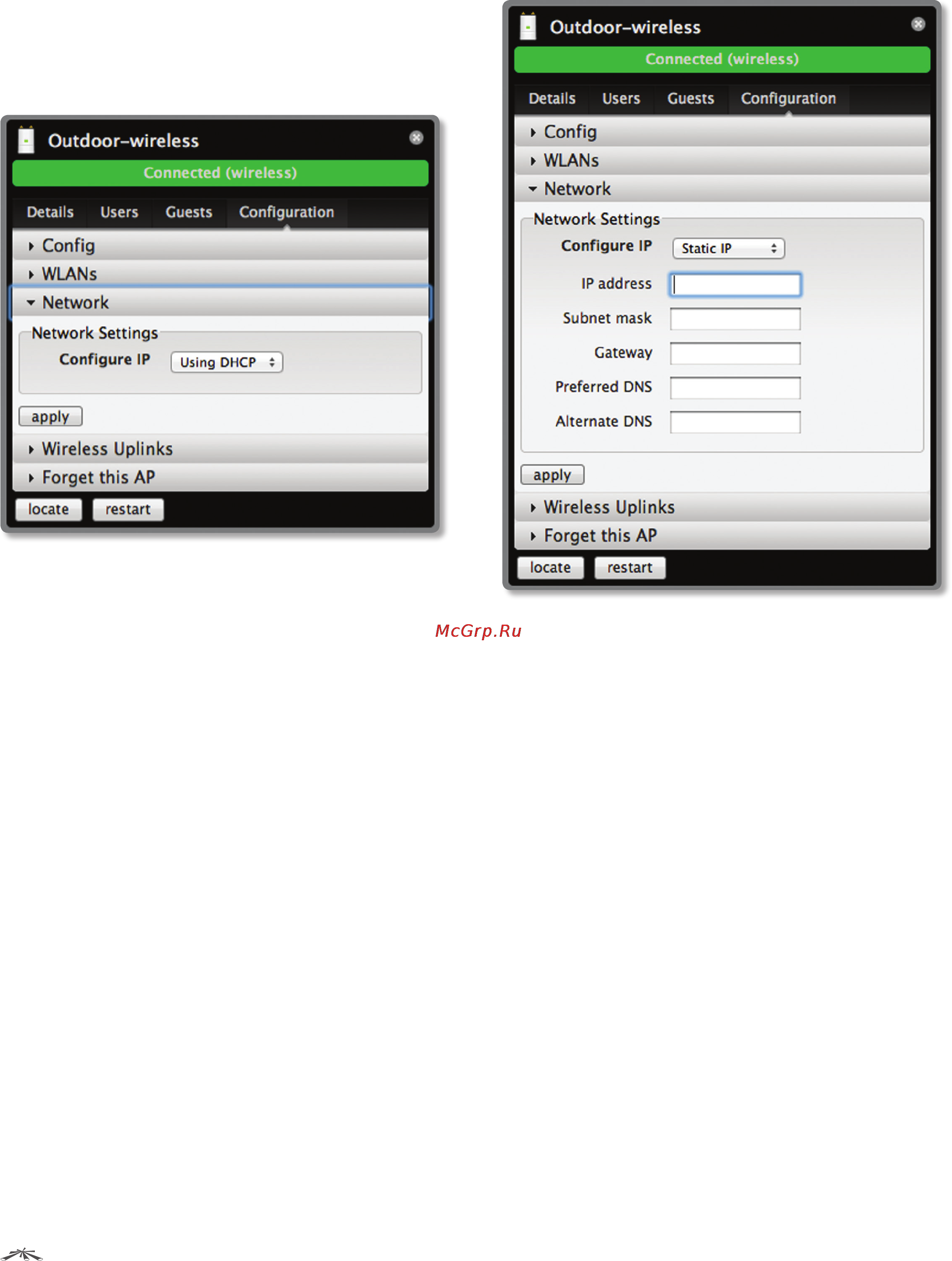

Network Settings
Configure IP Select between Using DHCP or Static IP:
• Using DHCP Choose this option to obtain the IP
address, Gateway, and DNS address dynamically from
the external DHCP server.
• Static IP Choose this option to assign the static IP
address, Subnet mask, Gateway, Preferred DNS, and
Alternate DNS for the Access Point.
- IP address Enter the IP address for the Access Point.
- Subnet mask Enter the subnet mask for the Access
Point.
- Gateway Enter the gateway address.
- Preferred DNS Enter a primary DNS address.
- Alternate DNS Enter a secondary DNS address.
Click apply to save any changes that you have made.
