Chapter 10: Access Point DetailsUniFi

™

AP-Outdoor User Guide

Ubiquiti Networks, Inc.

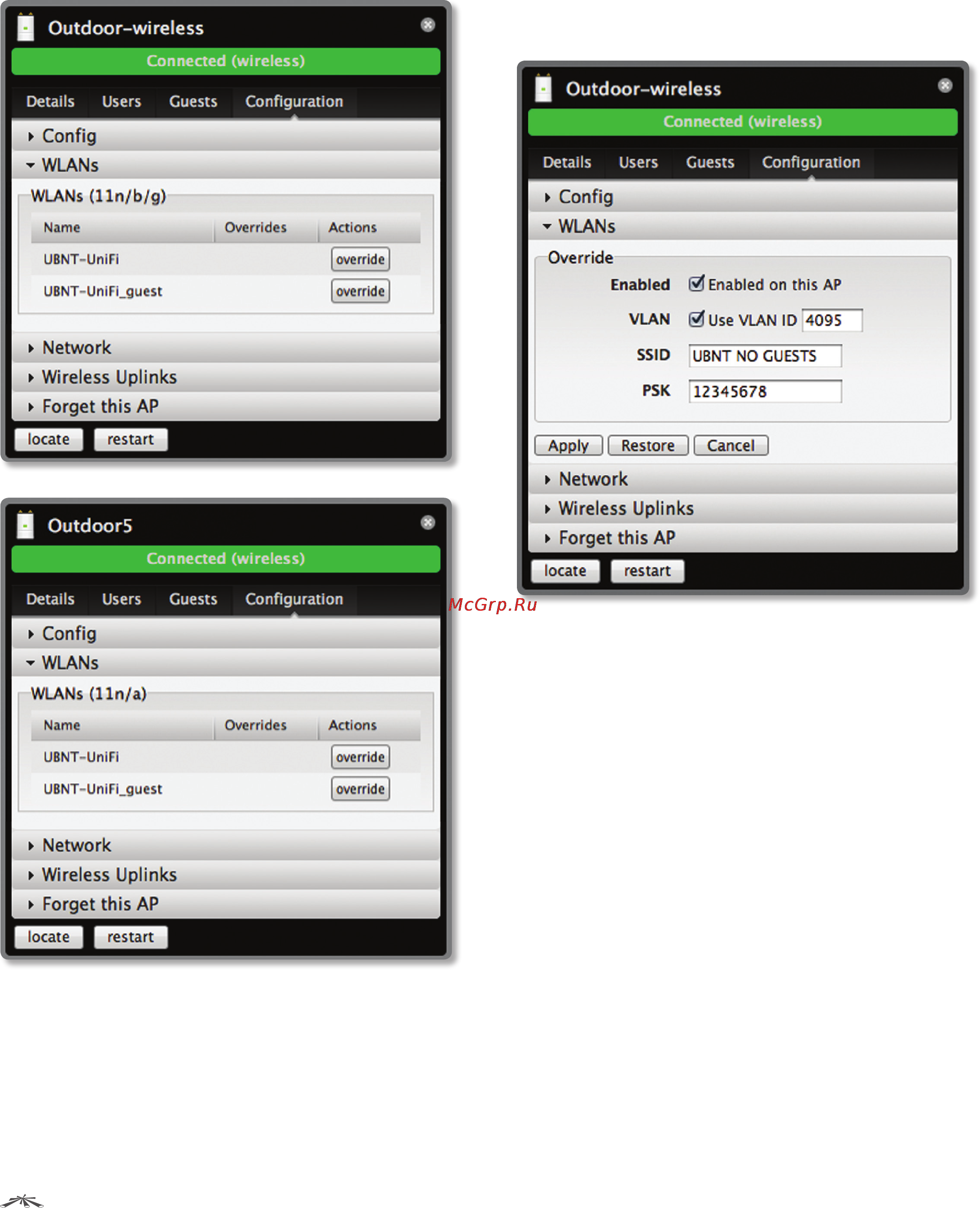

WLANs

Allows the deployment of different WLANs on different

Access Points.

WLANs (11n/b/g) or WLANs (11n/a)

Depending on the model (UAP-Outdoor for 2.4 GHz or

UAP-Outdoor 5G for 5 GHz), WLANs (11n/b/g) or WLANs

(11n/a) are displayed.

Name Displays the name of the SSID (network name) of

the wireless LAN (WLAN) that is available for the user to

connect to.

Overrides Displays SSID override information applied

to the wireless LAN (WLAN) using the Actions > Override

option.

Actions Click Override to enable a VLAN, set the VLAN ID,

and enter the SSID override name to apply to the wireless

LAN (WLAN).

Enabled Select to enable or clear to disable override

settings on the WLAN.

VLAN Select to enable VLAN or clear to disable VLAN.

VLAN ID The VLAN ID is a unique value assigned to

each VLAN at a single device; every VLAN ID represents

a different Virtual Local Area Network. A value between

2 and 4095 may be entered. For example, in a larger

deployment where there are multiple buildings, it’s

possible that a different VLAN ID is used in each building

while still on the same corporate network.

SSID Enter the SSID override name to apply to the

wireless LAN (WLAN).

PSK If the WPA-Personal security option has been

applied to the WLAN under Settings > Wireless Networks,

the Pre-Shared Key (PSK) for the SSID specified will

automatically appear in this field.

Click Apply to save any changes that you have made. Click

Restore to remove any overrides that were applied to the

selected WLAN. Click Cancel to prevent application of any

changes you have made.
