3
Chapter 2: InstallationUniFi
™
AP-Outdoor User Guide
Ubiquiti Networks, Inc.

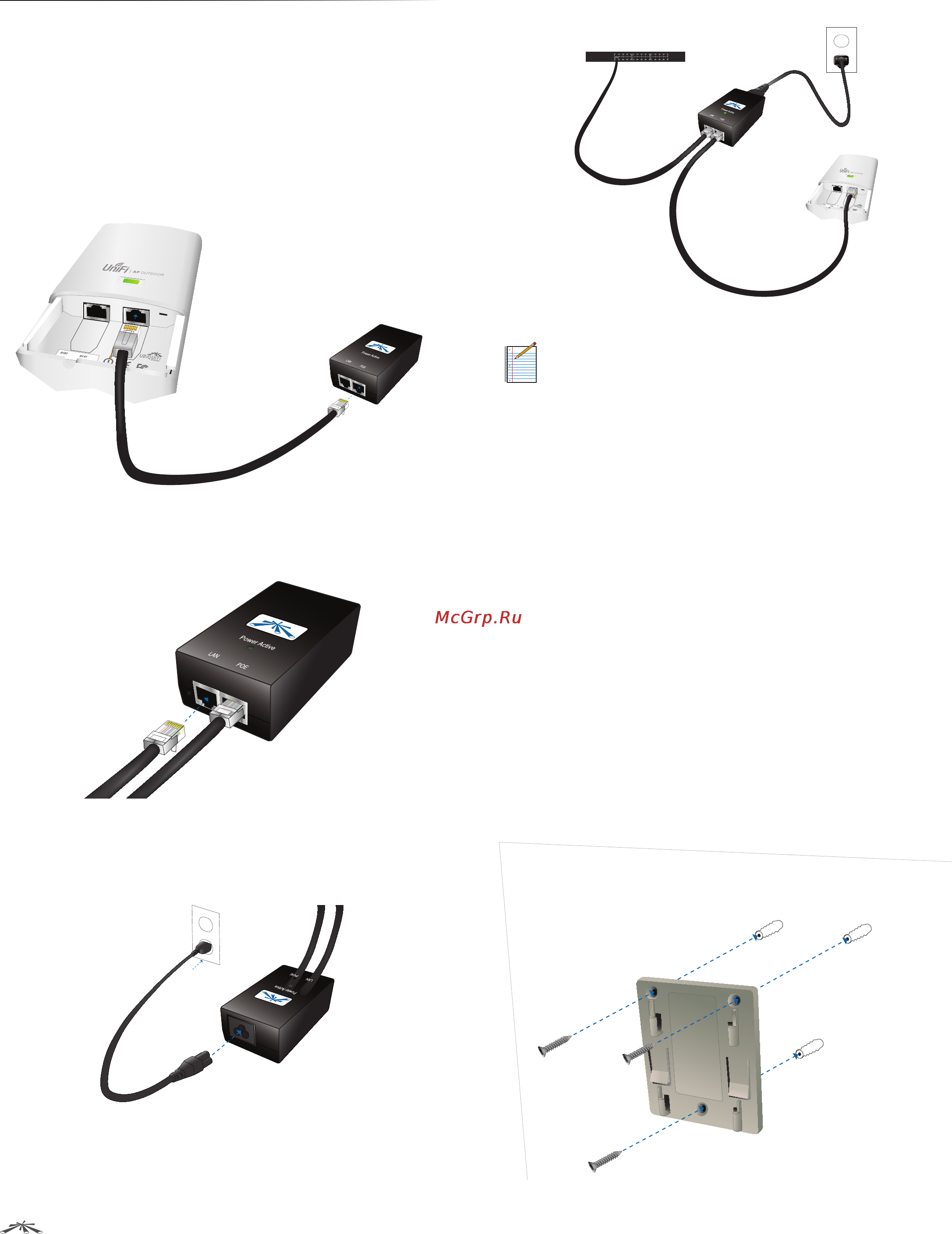

Chapter 2: Installation
Hardware Installation
The UniFi AP-Outdoor is powered by the included PoE
(Power over Ethernet) Adapter. To install the AP, perform
the following steps:
1. Connect an Ethernet cable to the primary Ethernet port
on the UniFi AP-Outdoor, and connect the other end of
the Ethernet cable to the Ethernet port labeled POE on
the PoE Adapter.
2. Connect an Ethernet cable from your LAN to the
Ethernet port labeled LAN on the PoE Adapter.
3. Connect the power cord to the power port on the PoE
Adapter. Connect the other end to of the power cord to
a power outlet.
Below is an overview of the Power over Ethernet
connections.
Power Connection Diagram
Note: The UniFi AP-Outdoor supports Passive PoE,
which works with the included PoE adapter. If
you want to power the UniFi AP-Outdoor from an
802.3af compliant switch, Ubiquiti Networks offers
the optional Instant 802.3af Adapter to instantly
transform any PoE device into a fully 48V, 802.3af
compliant product. Product details are available on
our website at http://ubnt.com/8023af
Mounting the UniFi AP-Outdoor
The UniFi AP-Outdoor can be mounted on a wall or pole.
Wall Mount
To mount the UniFi AP-Outdoor on a wall, use the
included Wall Mount Bracket, screws, and anchors.
1. Align the Wall Mount Bracket to the desired position on
a wall.
2. Use a pencil to mark the holes on the wall.
3. Use a 6 mm drill bit to drill the holes in the wall.
4. Insert the 3 screw anchors into the wall.
5. Secure the Wall Mount Bracket to the wall by inserting
the self tapping screws into the anchors.
