12
Chapter 3: Using the UniFi Controller SoftwareUniFi
™
AP-Outdoor User Guide
Ubiquiti Networks, Inc.
- WPA-Personal WPA™ or Wi-Fi Protected Access was
developed as an encryption method stronger than
WEP. WPA-Personal requires a passphrase to connect
to the wireless network.
• Security Key Enter the passphrase that users will
use to connect to the wireless network.
- WPA-Enterprise WPA Enterprise uses a RADIUS
server to authenticate users on the wireless network.
• IP Address This is where the IP address of the
RADIUS server is specified.
• Port The port number is entered here. By default it
is 1812.
• Password The password used to authenticate on
the RADIUS server is entered here.
• Guest Policy Select this option to enable guest access
policies on this wireless network.
Advanced
• VLAN To use a VLAN, select Use VLAN ID and enter the
port number.
• Hide SSID Select this option if you don’t want the SSID
to be broadcast.
• WPA Defines supported WPA and encryption methods.
• User Group Allows assignment of wireless users to a
specific user group.
Click Apply to save any changes that you have made.
Click Cancel to discard changes.

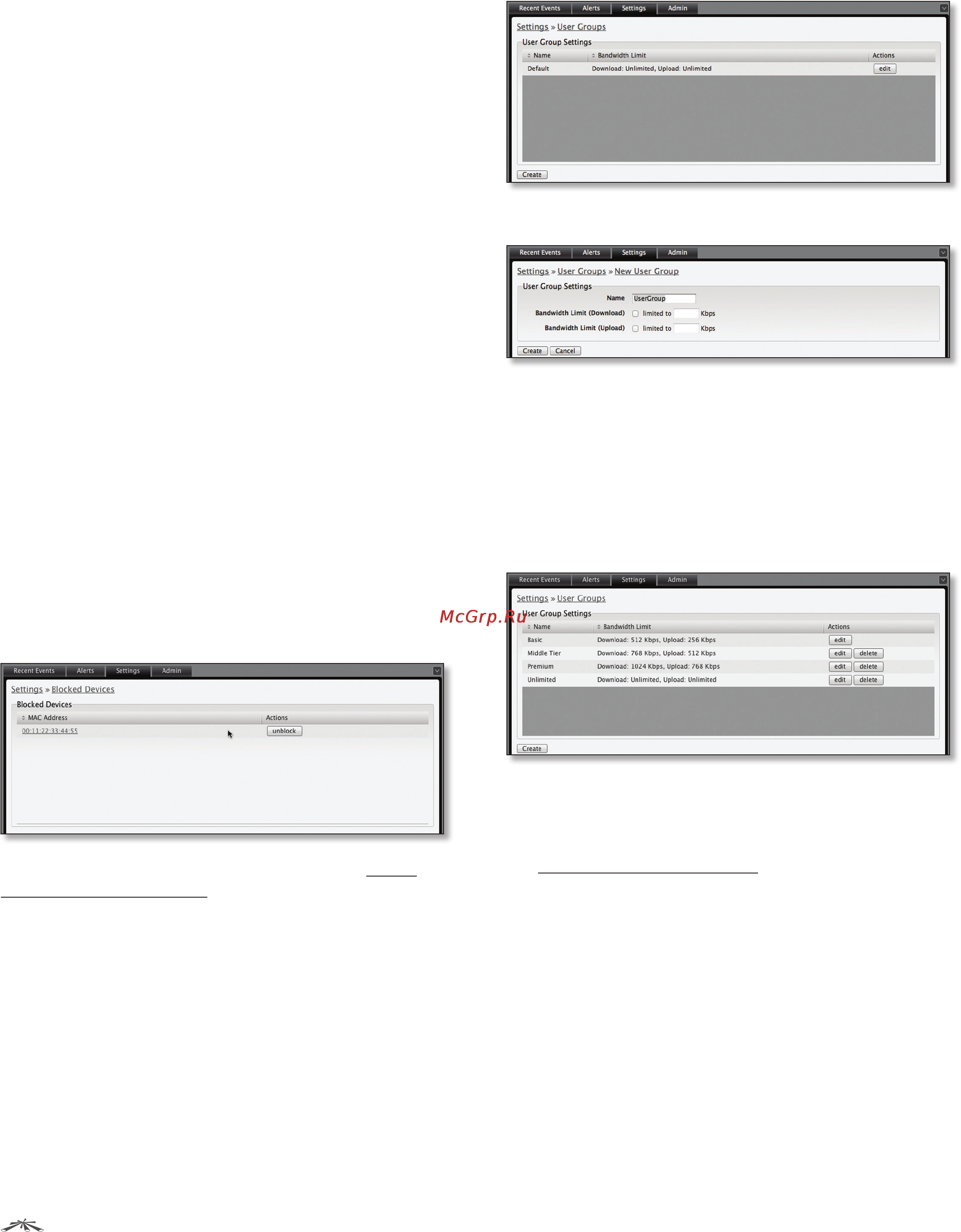

Settings > Blocked Devices
Displays the list of blocked wireless devices.
Unblock Click to unblock a wireless device. See “User/
Guest Details” on page 40 for information on blocking
wireless devices.
Settings > User Groups
Create Click to create a new user group.
• Name Enter a descriptive user group name.
• Bandwidth Limit (Download) When selected, allows
the designation of a download bandwidth limit in Kbps.
• Bandwidth Limit (Upload) When selected, allows the
designation of an upload bandwidth limit in Kbps.
- Create Click to create a user group.
- Cancel Click to cancel user group creation.
Edit Click to change the name or bandwidth settings of
the user group.
Delete Click to delete the user group.
See “Configuration” on page 41 for information on the
application of User Groups to Users/Guests.
