Chapter 1: Product OverviewUniFi
™
AP-Outdoor User Guide
Ubiquiti Networks, Inc.

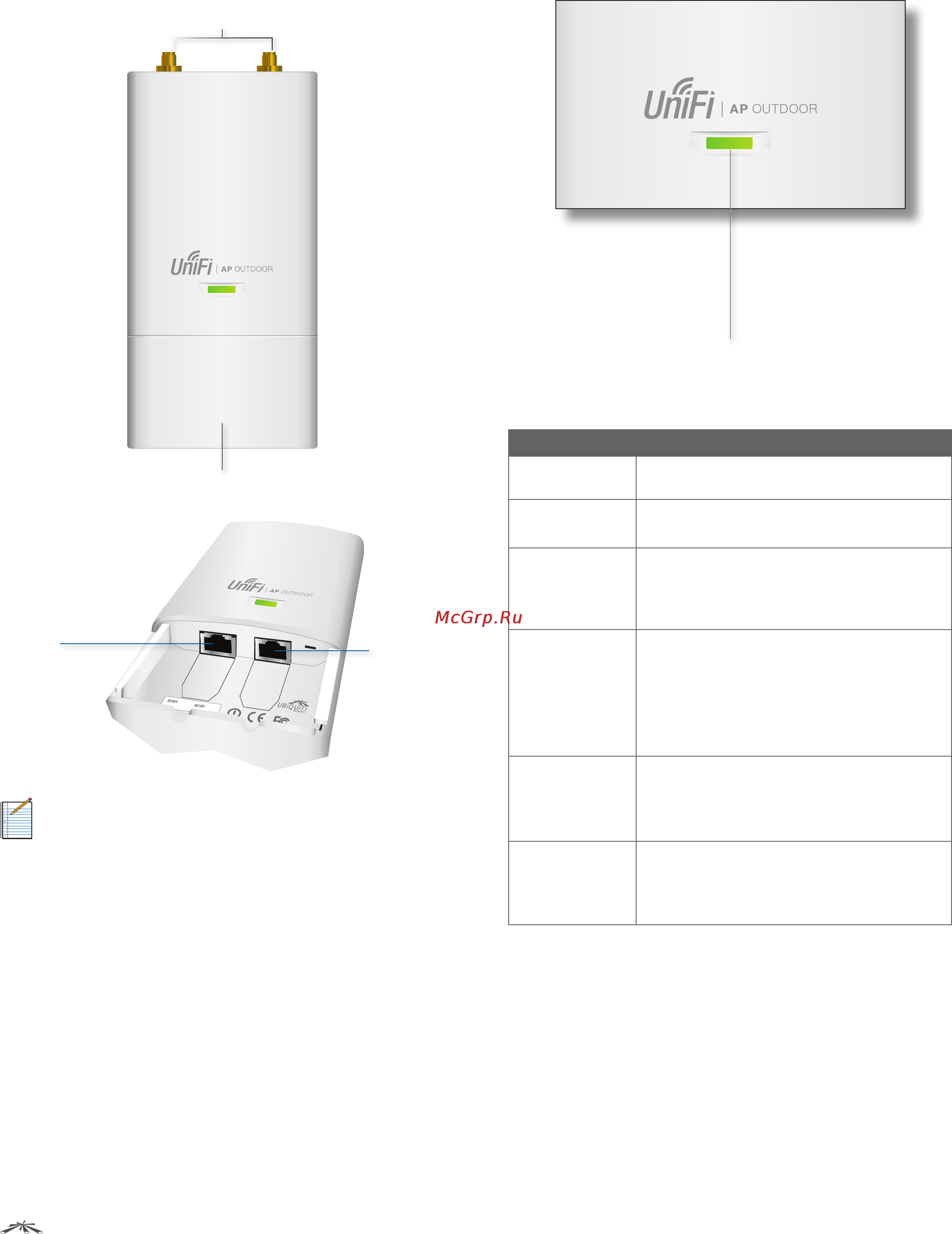

Hardware Overview
Connect to
Antennas
Removable Cover
Secondary
Ethernet Port
Main
Ethernet Port
Note: The Secondary Ethernet Port can be used as
as an uplink for other devices once they have been
adopted.
Front
LED Indicates the status of the device. See
the table below for details.
LED Color Status
Flashing Amber Initializing after startup.
Steady Amber Factory default, waiting to be integrated.
Alternating
Amber/Green
Device is busy; do not touch or unplug it.
This usually indicates a process such as a
firmware upgrade is taking place.
Quickly Flashing
Green
This is used to locate an AP.
When you click Locate in the UniFi
Controller software, the AP will flash. It will
also display the location of the AP on the
map.
Steady Green
Indicates the device has been successfully
integrated into a network and is working
properly.
Steady Green
with occasional
flashing
Indicates the device is in an isolated state
(all WLANs are brought down until an
uplink is found).
