Chapter 4: Map TabUniFi

™

AP-Outdoor User Guide

Ubiquiti Networks, Inc.

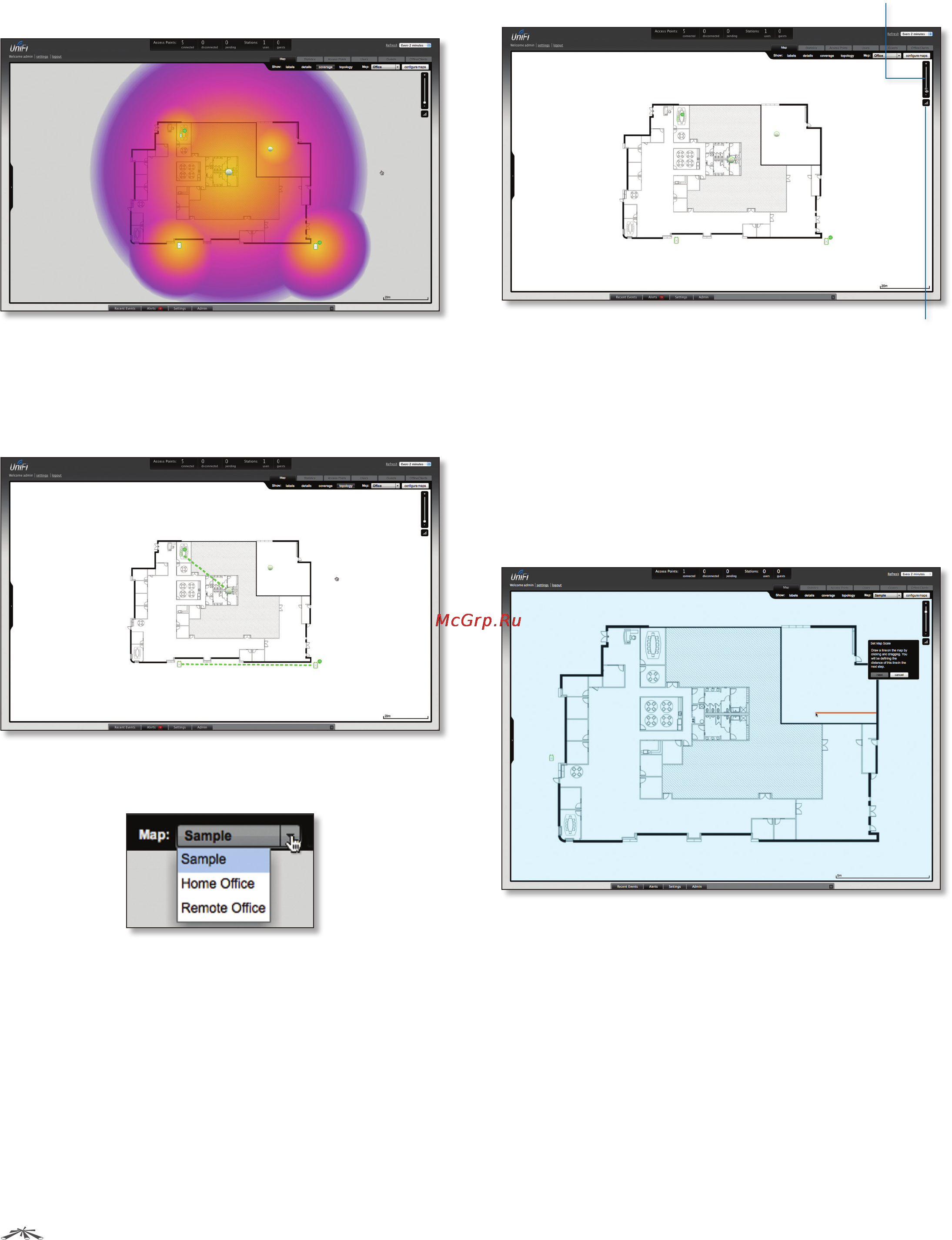

• Coverage Displays a visual representation of the

wireless range covered by the Access Point.

Topology Displays a visual representation of the network

configuration and connections between Access Points.

Any devices that is wirelessly connected will have a

wireless icon next to it. A path of arrows will indicate

which device the wireless device is downlinking from.

Map: If multiple maps have been uploaded, you can

select which map you want to view using this option.

Configure Maps Use this option to add maps or edit the

current map(s).

Set Map Scale Use this option to define the scale of the

map. You will draw a line and define the distance that the

line represents.

Zoom Slider Use to zoom the map detail in and out.

Setting the Map Scale

1. Click the Set Map Scale button.

2. Click and hold to draw a line in the area that you want

to use to set the scale of the map. If you need to redraw

the line, just click and hold again to draw a new line.

Once you’re happy with the line, click Next.
