Chapter 4: Map TabUniFi

™

AP-Outdoor User Guide

Ubiquiti Networks, Inc.

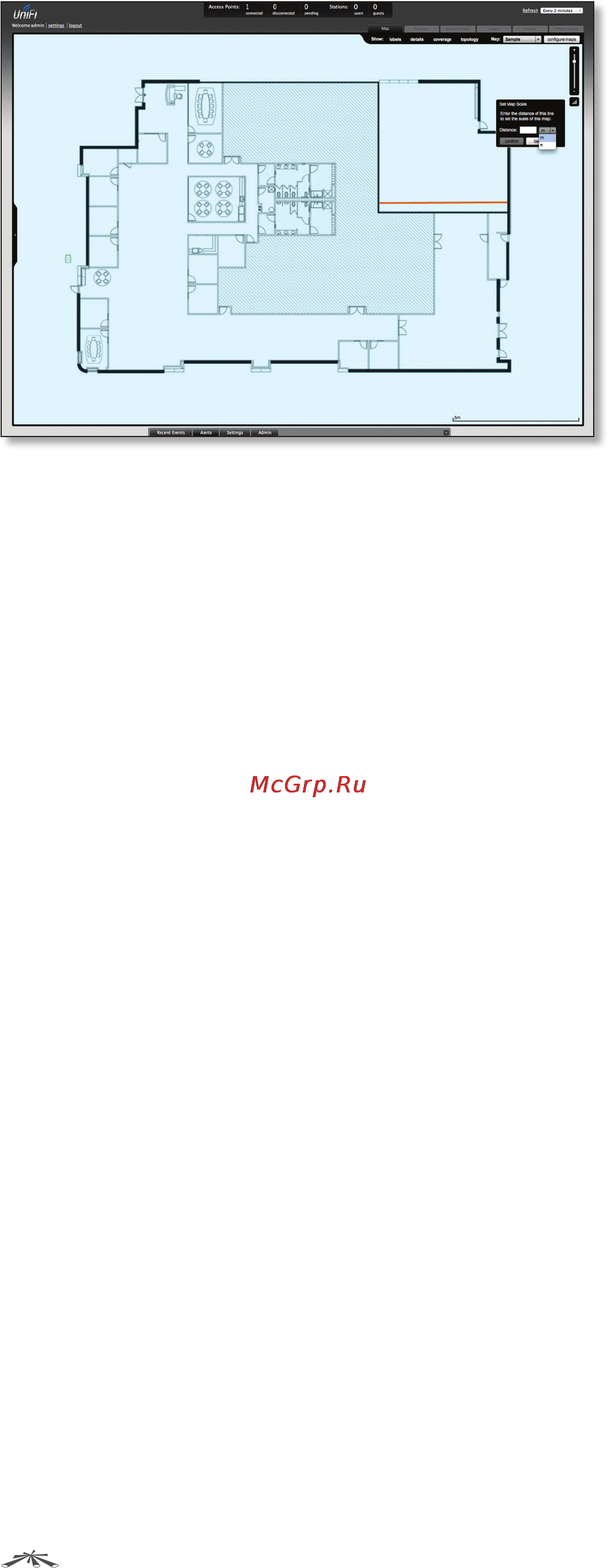

3. Enter the distance that the line represents in the

Distance: field. The distance is specified in meters by

default but you can switch to feet using the drop-down

selection menu on the right. Click Next.
