Chapter 10: Access Point DetailsUniFi

™

AP-Outdoor User Guide

Ubiquiti Networks, Inc.

Chapter 10: Access Point

Details

UniFi Access Points connect to the UniFi Controller

software either by Ethernet, denoted as Connected, or by

a wireless connection, denoted as Connected(wireless).

Based on connection type, options under each tab vary.

The upper part of the window has four clickable tabs. The

bottom of the window has Locate and Restart buttons.

Use the Locate button to flash the LED on the Access

Point and flash the Access Point icon on the map. Use the

Restart button to restart the Access Point. The four tabs

include Details, Users, Guests, and Configuration.

Details

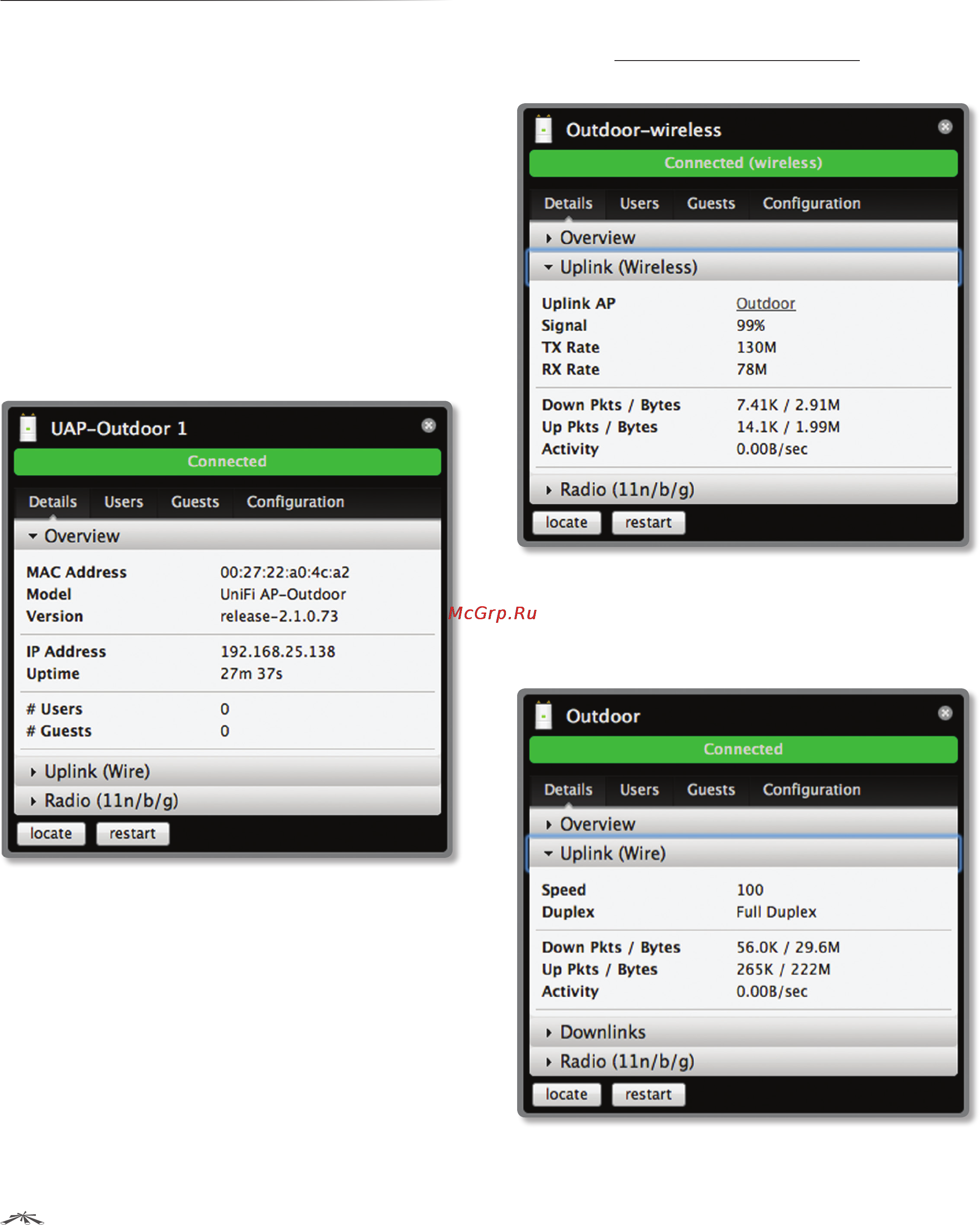

Displays details about the Access Point. Click Overview to

display the device specifics, connection details, uptime,

and user statistics.

Overview

MAC address Displays the MAC address of the Access

Point.

Model Displays the model information.

Version Displays the version of software used on the

Access Point.

IP address Displays the IP address of the Access Point.

Uptime Displays the amount of time the Access Point has

been running without interruption.

# Users Displays the number of users connected to the

primary network.

# Guests Displays the number of users connected to the

guest network.

Uplink (Wireless)

Displays details on a wirelessly connected Access Point

including the Uplink Access Point (by specified name or

MAC address), signal strength to the Uplink Access Point,

TX Rate, RX Rate, Down Pkts / Bytes, Up Pkts / Bytes, and

Activity. See “Wireless Uplinks” on page 36 to find,

select, and connect to a wireless Access Point.

Uplink (Wire)

Displays details on a wired Access Point including the

connection speed, duplex type, Down Pkts / Bytes in K/M,

Up Pkts / Bytes in K/M, and Activity in B/sec.
