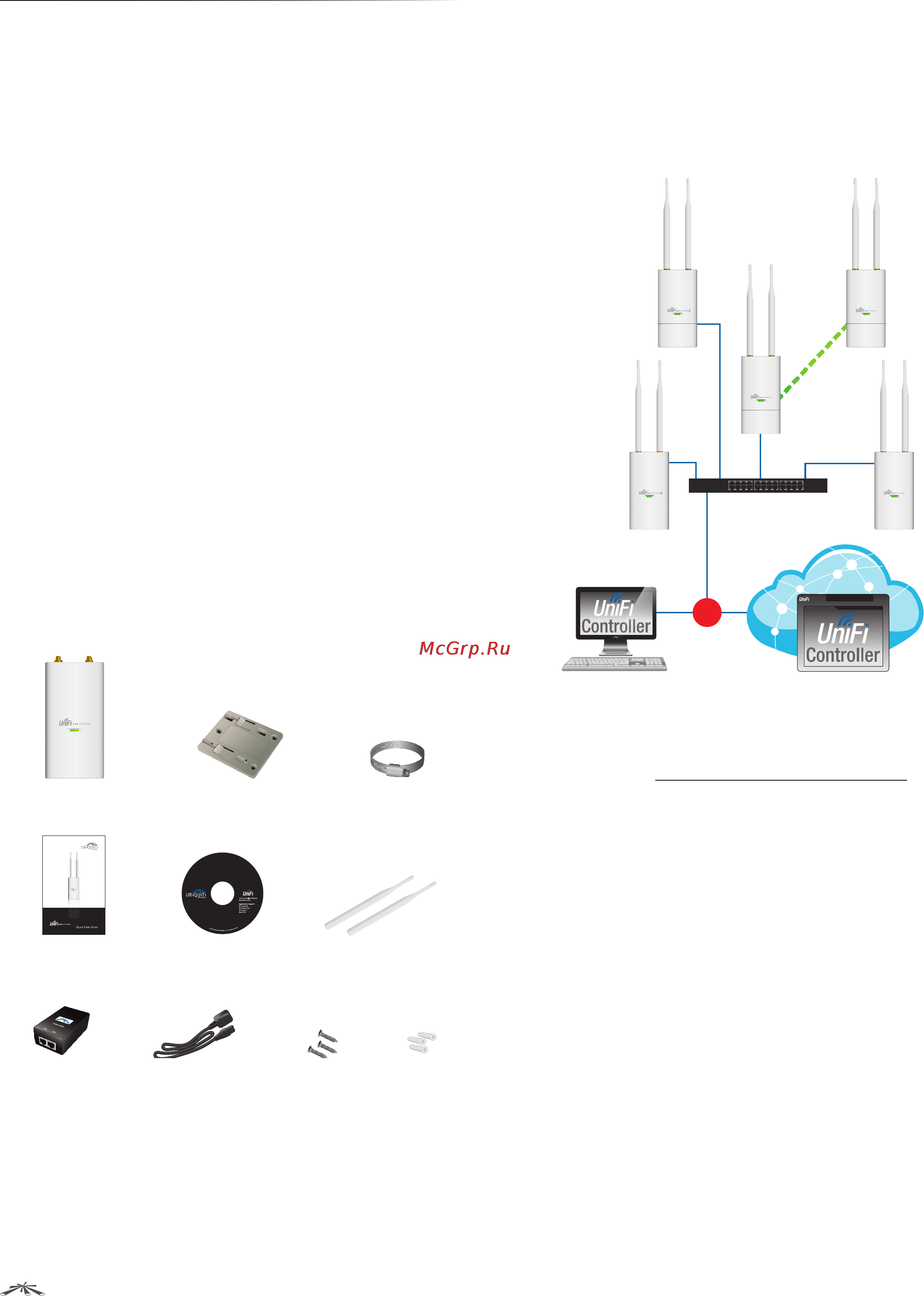

![Ubiquiti UniFi AP Outdoor [4/58] Chapter 1 product overview](/views2/1072883/page4/bg4.png)
1
Chapter 1: Product OverviewUniFi
™
AP-Outdoor User Guide
Ubiquiti Networks, Inc.
Chapter 1: Product Overview
Thank you for purchasing the Ubiquiti UniFi AP-Outdoor,
which is available in two models: UAP-Outdoor for 2.4 GHz
and UAP-Outdoor 5G for 5 GHz.
The UniFi AP-Outdoor works with the UniFi AP, AP-LR,
AP-Mini, and AP-Pro. For wireless uplinks, an Access Point
can only uplink to another Access Point using the same
radio band. For example, the UAP-Outdoor 5G can only
uplink to another UAP-Outdoor 5G or other AP using the
5GHz radio band.
The UniFi AP-Outdoor includes the UniFi Controller
software, which allows you to manage your wireless
network using your Web browser. This User Guide is for
use with the UniFi AP-Outdoor and version 2.0 or above
of the UniFi Controller software. Additional information is
available on our website at
http://wiki.ubnt.com/UniFi_FAQ
The UniFi AP-Outdoor also includes the necessary
hardware for mounting the unit on a wall or a ceiling. It
supports Passive PoE, which works with the included PoE
adapter. If you want to power the UniFi AP-Outdoor from
an 802.3af compliant switch, Ubiquiti Networks offers the
optional Instant 802.3af Adapter to instantly transform
any PoE device into a fully 48V 802.3af compliant product.
Product details are available on our website at
http://ubnt.com/8023af
Package Contents
UniFi AP-Outdoor Wall-Mount Bracket Metal Strap
Outdoor WiFi System
Quick Start Guide UniFi Controller
CD with User Guide
Antennas
24V PoE Adapter Power Cord Screws (Qty. 3) Anchors
System Requirements
• Microsoft Windows XP, Windows Vista, Windows 7, or
Mac OS X
• Java Runtime Environment 1.6 (or above)
• Web Browser: Mozilla Firefox, Google Chrome, or
Microsoft Internet Explorer 8 (or above)
Network Topology Requirements
• A DHCP-enabled network (for the wired Access Point to
obtain an IP address as well as for the wireless Access
Points after the deployment)
• A management station computer running the UniFi
Controller software, located either onsite and connected
to the same Layer-2 network, or off-site in a cloud or
NOC
or
On-Site
Management Station
UAP-Outdoor
UAP-Outdoor
Wireless
Uplinked
1
UAP-Outdoor
UAP-Outdoor 5G
UAP-Outdoor 5G
Router
Off-Site
Cloud/NOC
2
Sample Network Topology
¹ Please refer to “Wireless Uplinks” on page 36 for
setting up wireless-linked APs.
² All UniFi APs support off-site management controllers.
