Icom IC-M424 [12/108] Panel description
![Icom IC-M424 [12/108] Panel description](/views2/1074285/page12/bgc.png)
3
2

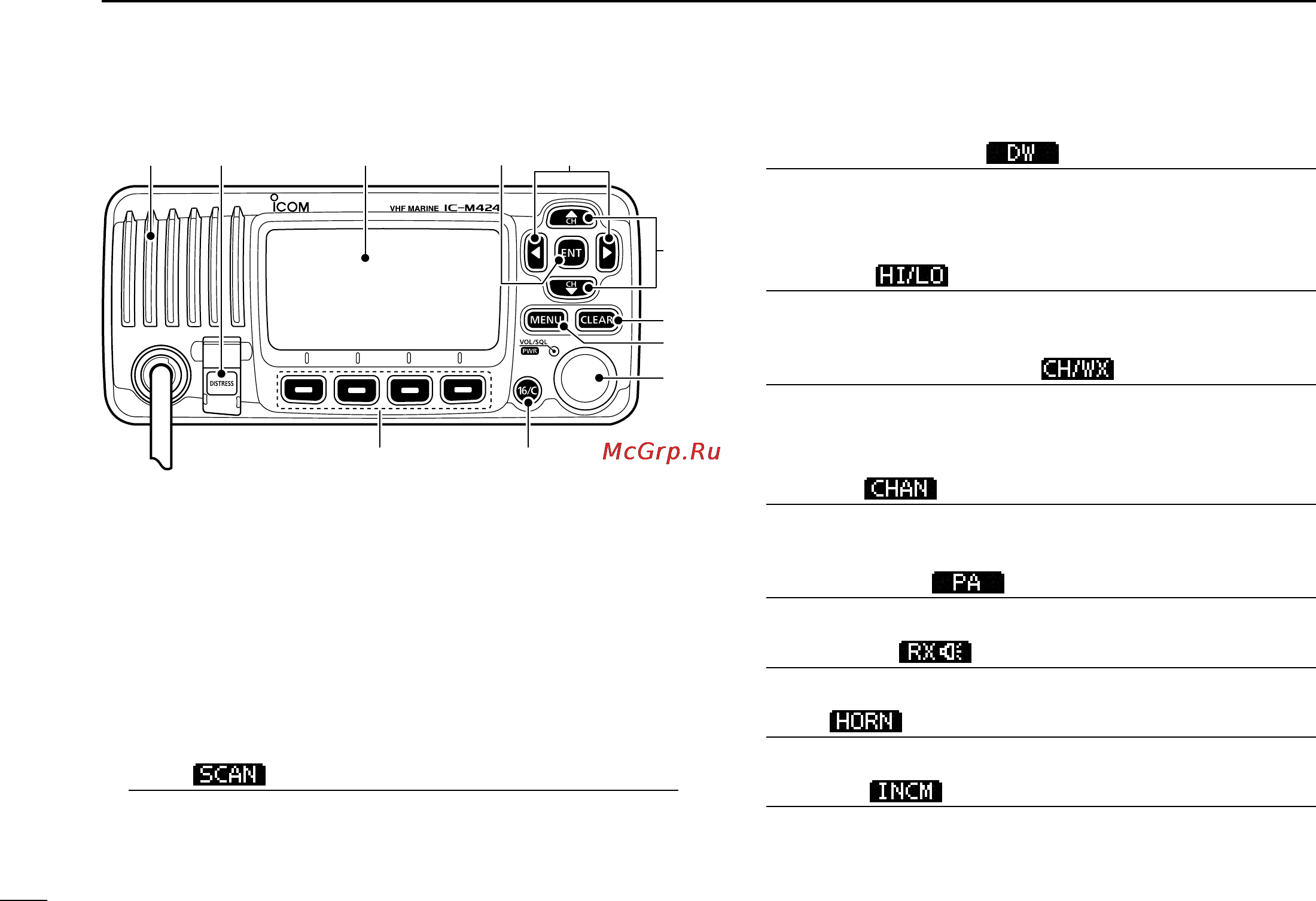

PANEL DESCRIPTION
New2001 New2001
t
u
y
we
r
io
q
Function display (p. 5)Speaker
i CHANNEL 16/CALL CHANNEL KEY [16/C]
Push to select Channel 16. (p. 9) ➥
Hold down for 1 second to select the Call channel. (p. ➥
9
)
•“CALL”appearswhentheCallchannelisselected.
➥
When the Call channel is selected, hold down for 3 sec-
onds to enter Call channel programming mode. (p.
13
)
o SOFTKEYS
Desired functions as described below can be assigned in
the Menu screen.
Scan [
] (p. 18)
Push to start or stop a Normal or Priority scan.
Dualwatch/Tri-watch [ ] (p. 19)
Push to start a Dualwatch or Tri-watch. ➥
Push to stop a Dualwatch or Tri-watch when either is ➥
activated.
High/Low [
] (p. 11)
Push to set the power to high or low.
•Somechannelsaresettoonlylowpower.
Channel/Weather channel [ ]* (pp. 9, 11)
Push to selects and toggles the regular channel and
Weather channel.
*Only U.S.A. and Australian version transceivers.
Channel [ ]* (p. 9)
Push to select a regular channel.
*Only Chinese version transceiver.
Public address [ ] (p. 73)
Push to enter the PA (Public Address) mode.
RX Speaker [
] (p. 73)
Push to turn the RX Speaker mode ON or OFF.
Horn [
] (p. 74)
Push to enter the Horn mode.
Intercom [
] (p. 72)
Push to enter the Intercom mode.
