60
7
DSC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Receiving a Position Report Call D
When a Position Report Call is received:
➥ The alarm sounds for 2 minutes.

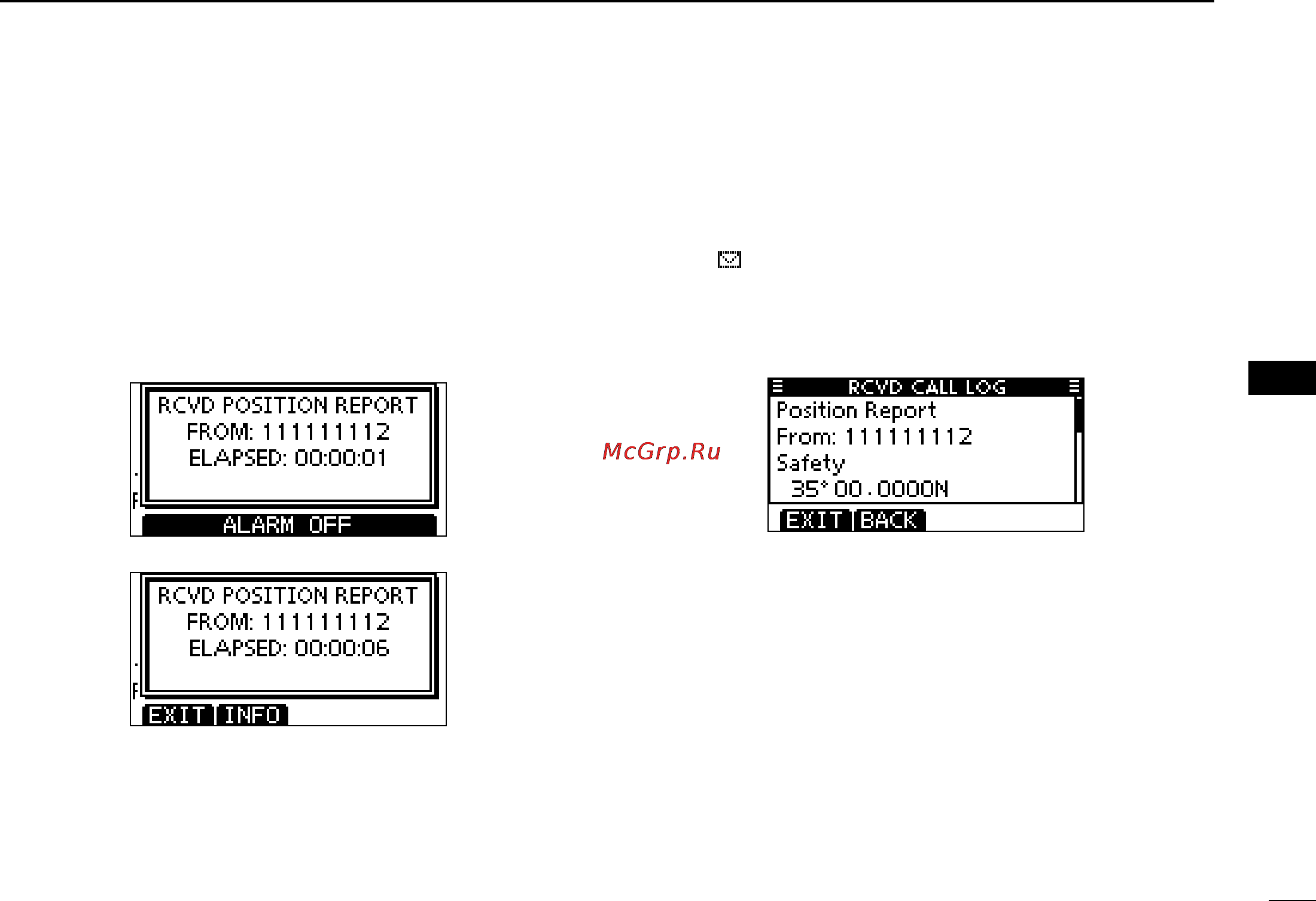

➥ “RCVD POSITION REPORT” pops up. The LCD backlight
blinks for 2 minutes.
Push [ALARM OFF] to stop the alarm and the blinking q
backlight.
•If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen
may appear, depending on the received Category.
Push a softkey to select your desired action. w
[EXIT]
➥Push to ignore the Call and return to the normal operat-
ing mode.
•ThetransceiverexitstheDSCmode.
•“ ” continues to blink and the Call is stored in the Received
Call Log.
[INFO]
➥Push to display the Received call information. (p. 65)
