MENU SCREEN OPERATION

New2001

Key Assignment D

Desired functions can be assigned to Dial and the softkeys.

When the “KEY ASSIGNMENT” screen is displayed, rotate q

Dial or push [∫]/[√] to select “Dial” or “Softkeys,” and then

push [ENT].

Rotate Dial or push [ w ∫]/[√] to select the desired position,

and then push [ENT].

 •Toreturntothedefault,select“Setdefault”andpush[ENT].

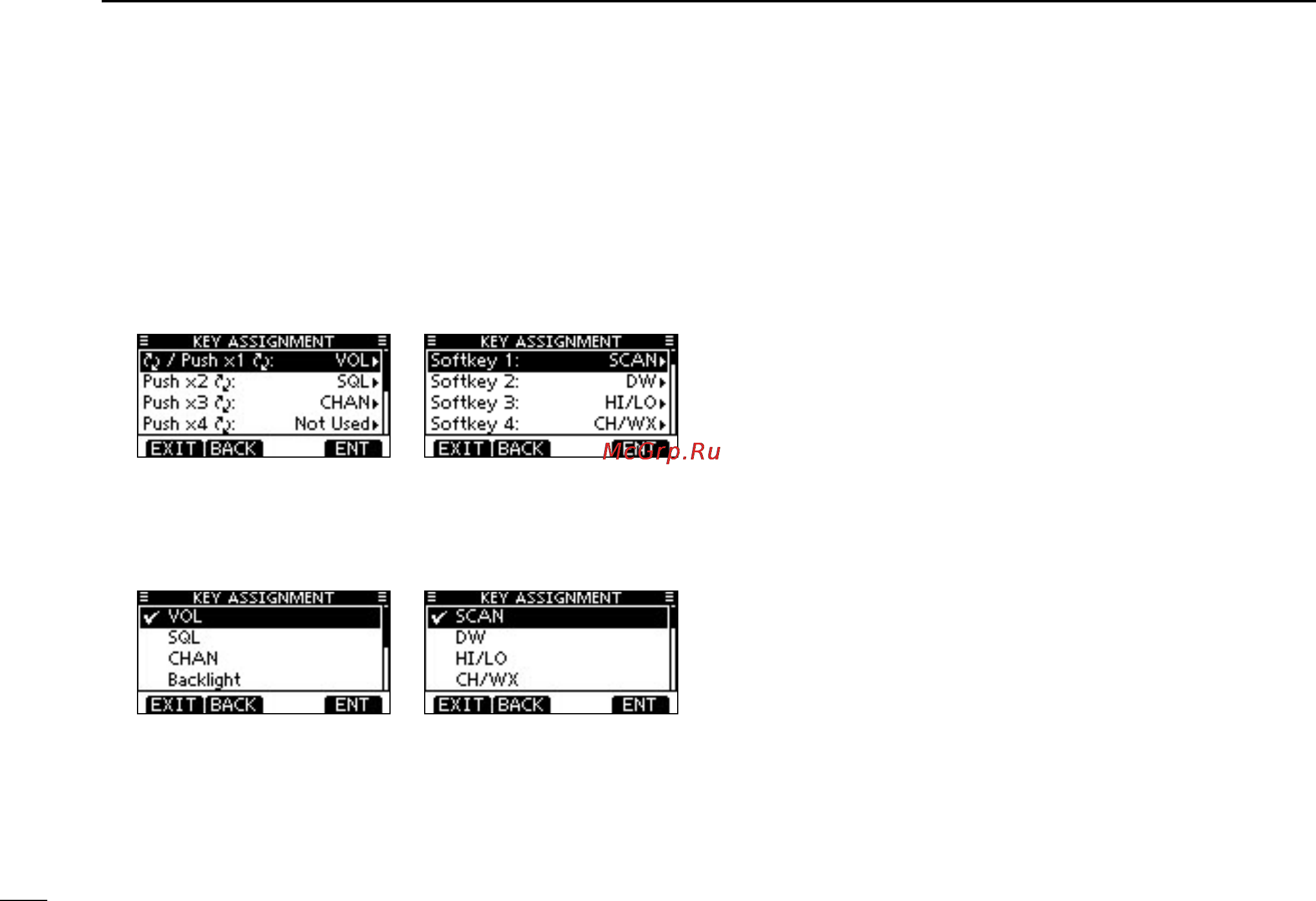

For “Dial” assignment For “Softkeys” assignment

Rotate Dial or push [ e ∫]/[√] to select the option, and then

push [ENT] to set it.

 •“✔” is displayed next to the selected option.

For “Dial” assignment For “Softkeys” assignment*

* [CHAN] appears instead of [CH/WX] only for Chinese version

transceiver.

Push [EXIT] to exit the Menu screen. r

 •Push[CLEAR]or[BACK]toreturntothepreviousscreen.

• Dial assignment

The Audio volume (VOL), squelch (SQL), channel selection

(CHAN) and LCD backlight level (Backlight) functions can be

assigned to any one of 4 sequential positions on Dial. Push-

ing Dial 1 to 4 times sequentially selects the desired func-

tion, and rotating Dial adjusts the level or selects a value or

number.

For example:

- VOL is assigned the 1st position, and pushing Dial once

selects VOL. The VOL screen adjust screen is displayed and

rotating Dial adjusts the audio volume.

- CH is assigned to the 3rd position, and pushing Dial three

times selects CH. The channel number is displayed and ro-

tating Dial will select the desired channel.

You can assign VOL, SQL, CHAN and Backlight to any one of

the 1st, 2nd, 3rd, or 4th sequential positions.

Repeatedly pushing Dial sequentially displays all the func-

tions in the order they are assigned, and skips any functions

assigned as Not Used.
