65
7
DSC OPERATION
Received Call log (Continued) ■

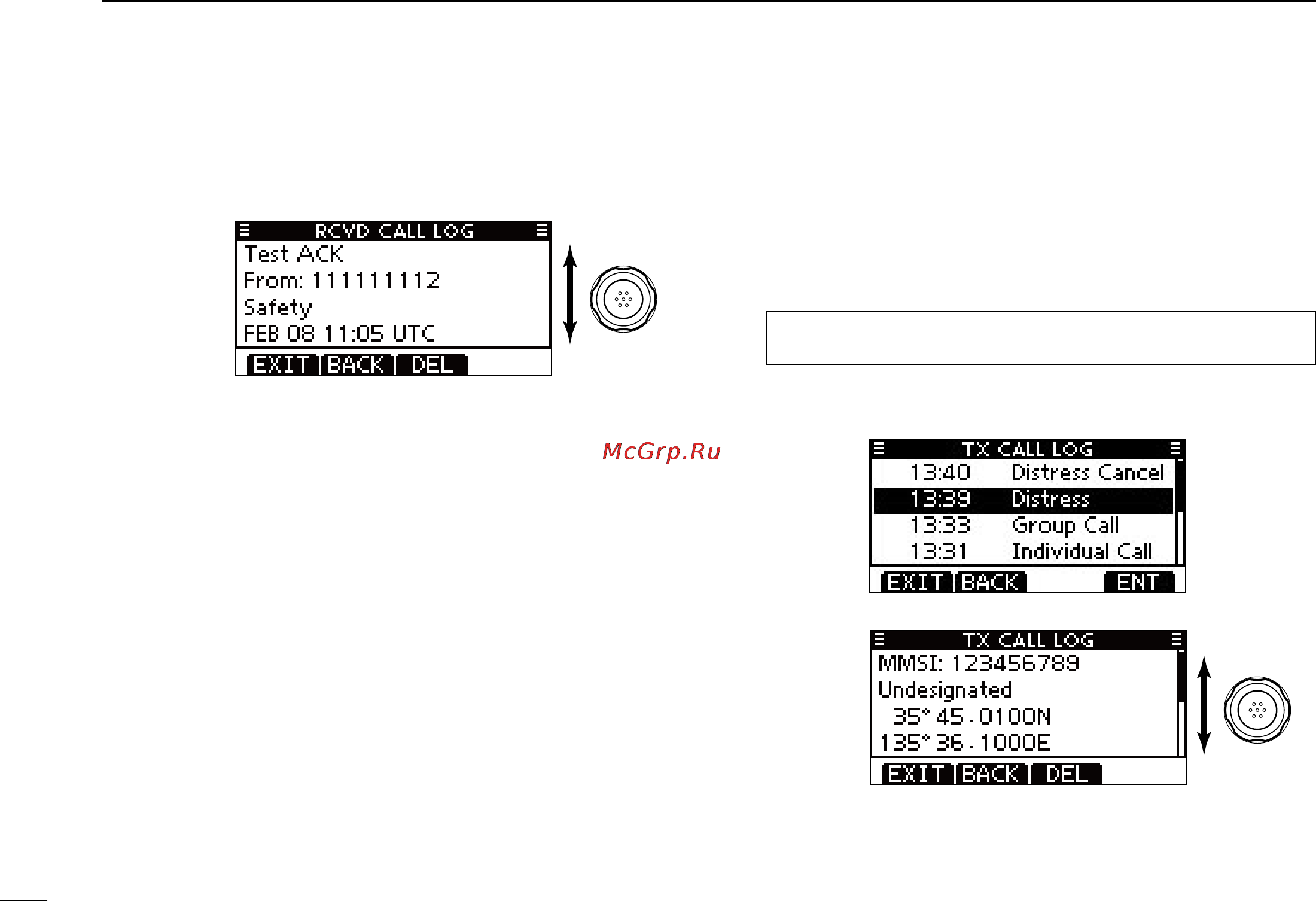

Rotate Dial to scroll the DSC message contents. r
•Thestoredmessagehasvariousinformation,dependingonthe
DSC call type.
Rotate
To delete the displayed DSC message, push [DEL]. t
•Theconrmationscreenappears,thenpush[OK]todelete.
Push [EXIT] to return to the normal operating mode. y
Transmitted Call log ■
The transceiver automatically stores up to 50 transmitted
calls, and the logs can be used as a supplement to your log-
book.
Enter “TX CALL LOG” in the DSC CALLS menu. q
MENU ➪ DSC Calls ➪ Transmitted Call Log
(Push [MENU])
(Rotate Dial, then push [ENT].)
Push [ w Y] or [Z] to select the desired item, then push
[ENT].
Rotate Dial to scroll the DSC message contents. e
Rotate
To delete the displayed DSC message, push [DEL]. r
•Theconrmationscreenappears,thenpush[OK]todelete.
Push [EXIT] to return to the normal operating mode. t
