81
9
MENU SCREEN OPERATION
New2001

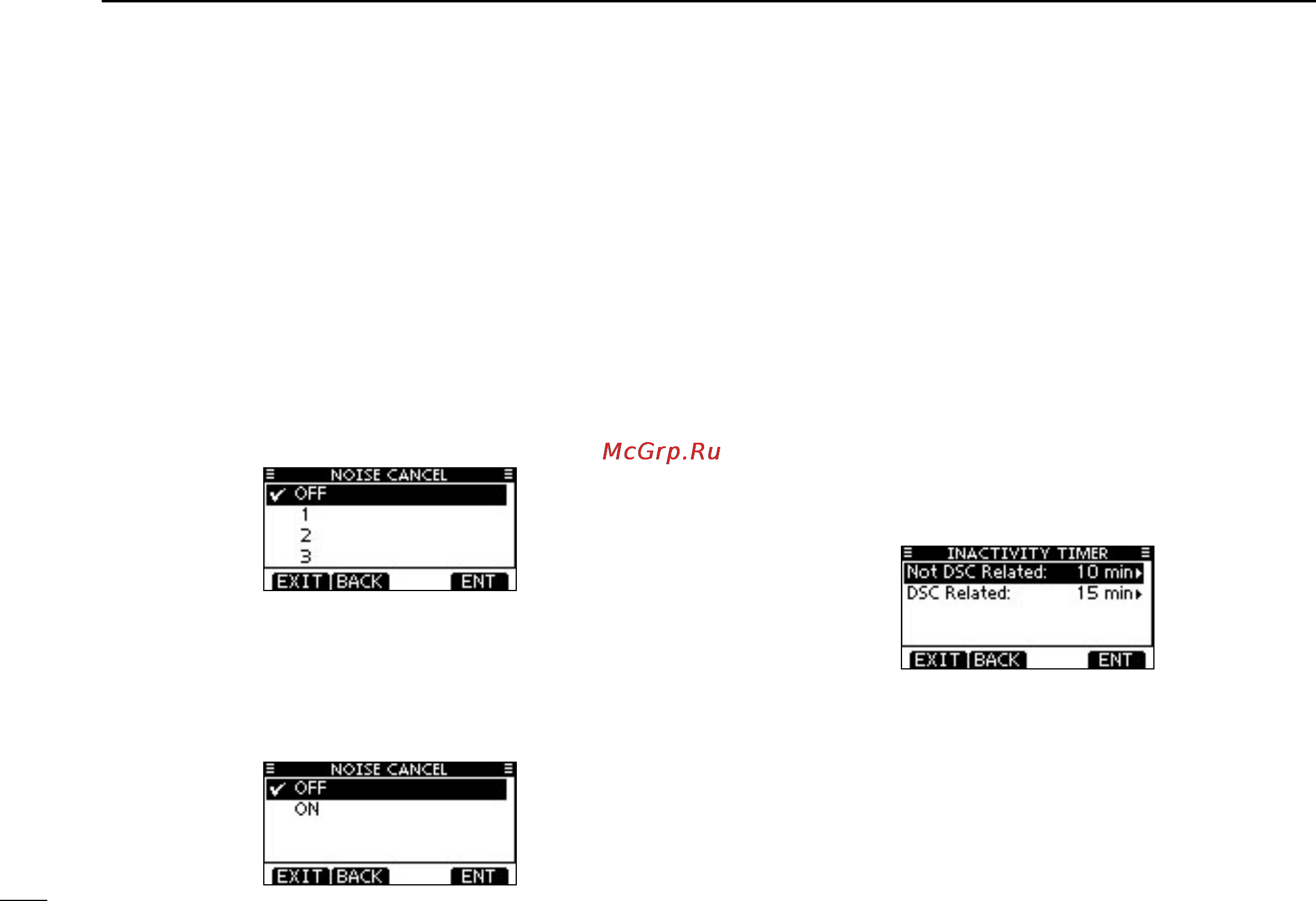

• RX
Turn the receive Noise Cancel function ON or OFF.
OFF : Turns OFF the function. (Default)
1 : The Noise Cancel function reduces random noise com-
ponents in the received signal to approximately one
half.
2 : The Noise Cancel function reduces random noise com-
ponents in the received signal to approximately one
third.
3 : The Noise Cancel function reduces random noise com-
ponents in the received signal to approximately one
tenth.
• TX
Turn the transmit Noise Cancel function ON or OFF.
OFF : Turns OFF the function. (Default)
ON : The Noise Cancel function reduces random noise com-
ponents in the transmitted signal to one third.
Inactivity Timer D
Set the inactivity timer to between 1 and 10 minutes (in 1 min-
ute steps) or OFF for the “Not DSC Related” and “DSC Re-
lated” item, and set to between 1 and 15 minutes (in 1 minute
steps) or OFF for the “DSC Related” item. The count down
alarm sounds 10 seconds before the Inactive timer returns
the current screen to the normal operating screen.
When the “INACTIVITY TIMER” screen is displayed, rotate q
Dial or push [∫]/[√] to select “Not DSC Related” or “DSC
Related,” and then push [ENT].
Rotate Dial or push [ w ∫]/[√] to select the option, and then
push [ENT] to set it.
•“✔” is displayed next to the selected option.
Push [EXIT] to exit the Menu screen. e
•Push[CLEAR]or[BACK]toreturntothepreviousscreen.
