DSC OPERATION
New2001
Transmitting a Position Report Reply call D
Transmit a Position Report Reply call when a Position Report
Request call is received.
Quick Reply:

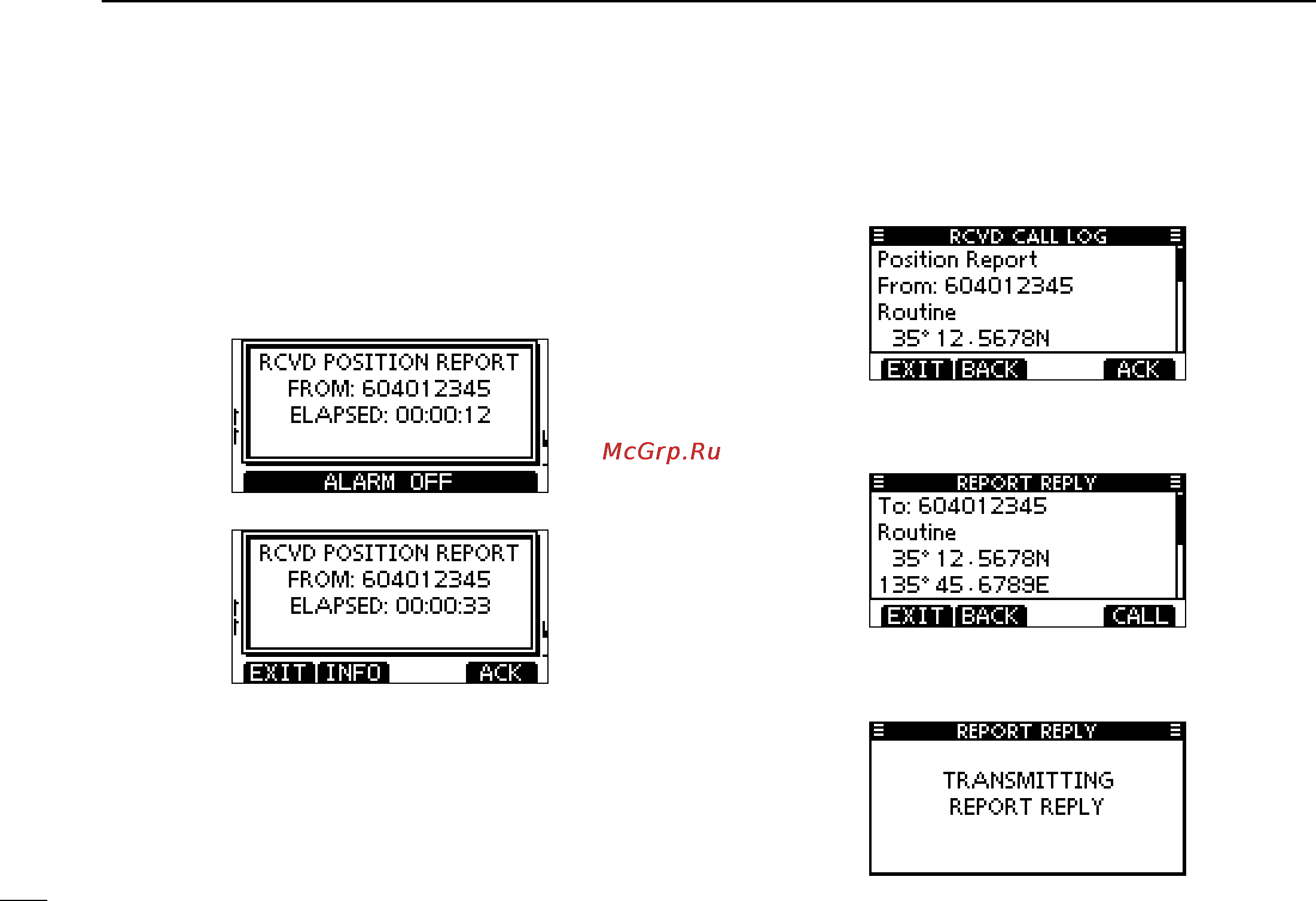

When a Position Report Request call is received, beeps q
sound and the screen as shown below is displayed.
Push [ALARM OFF] to stop the beeps.
Push [ACK]. w
•Push[INFO]todisplaythePositionReportRequestcallinforma-
tion.
Push [BACK] to return to the previous screen, or push [ACK].
The Position Report Reply confirmation screen is dis- e
played.
Push [CALL] to transmit the reply call.
While transmitting the reply call, the screen shown below r
is displayed, and then returns to the normal operating
mode.
