Icom IC-M424 [40/108] Dsc operation
![Icom IC-M424 [40/108] Dsc operation](/views2/1074285/page40/bg28.png)
31
7
DSC OPERATION

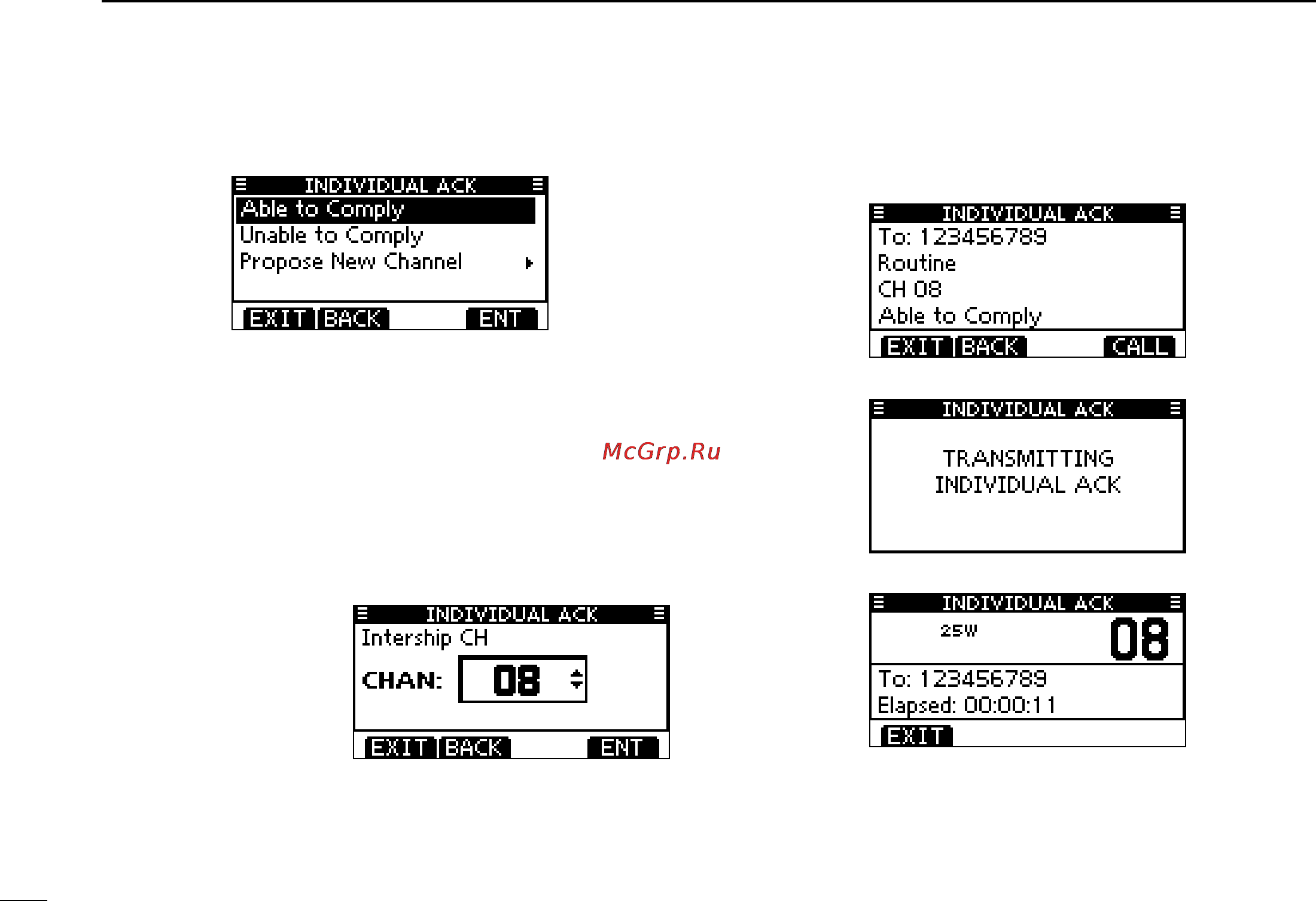

Transmitting an Individual Acknowledgement (continued) D
Select one of three options, then push [ENT]. e
•AbletoComply :Makeanacknowledgmentcallwithout
any changes.
•UnabletoComply :Youcannotmakeacommunication.
The Acknowledgement call (‘Unable to
Comply’) can be automatically trans-
mitted, if set. See page 66 for details.
•ProposeNewChannel :You can make an acknowledgement
call, but you specify the intership chan-
nel. Select a desired intership channel,
using Dial, or [Y](CH)/[Z](CH), then
push [ENT].
The Individual ACK confirmation screen is displayed. r
Push [CALL] to transmit an acknowledgement call.
The screens shown below are displayed. t
Reply to the call using the microphone. y
Push [EXIT] to return to the normal operating mode. u
