38
7
DSC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

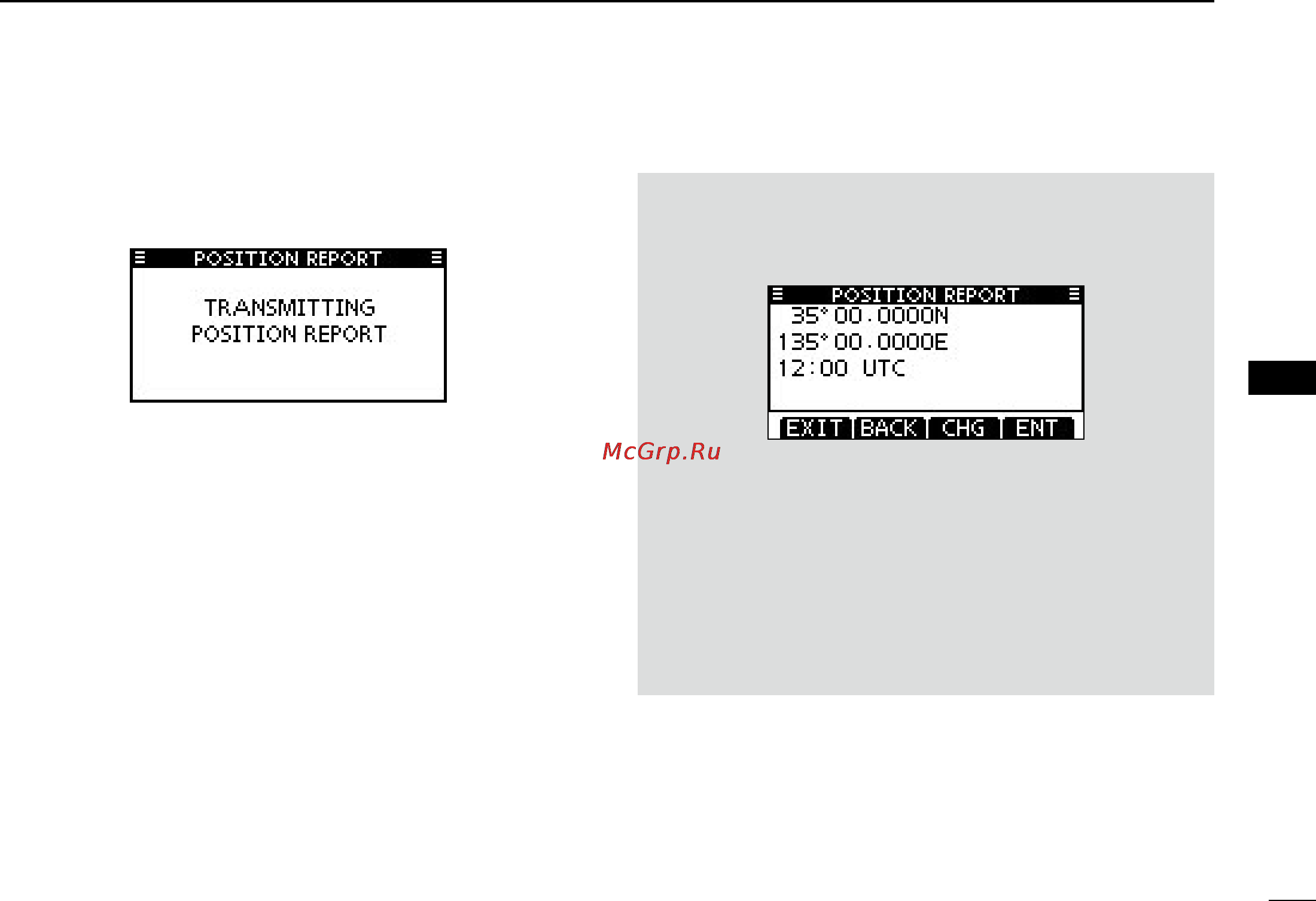

Push [CALL] to transmit the Position Report Call. r
•IfChannel70isbusy,thetransceiverstandsbyuntilthechannel
becomes clear.
After the Position Report Call has been transmitted, the t
transceiver automatically returns to the normal operating
mode.
When no GPS receiver is connected, and both position and
time have been manually programmed, the screen shown
below appears. Edit your latitude and longitude position and
UTC time as follows:
Push [CHG], then edit your latitude and longitude position ➥
and UTC time.
•SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].
•Push[ENT]orDialtosetit.
•Tomovethecursor,selecteitherarrow,“←” or “→,” then push
[ENT] or Dial.
•SelectN(Northlatitude)orS(Southlatitude)whenthecursor
is on the ‘N’ or ‘S’ position.
•SelectW(Westlongitude)orE(Eastlongitude)whenthecur-
sor is on the ‘W’ or ‘E’ position.
