Icom IC-M424 [83/108] Horn function
![Icom IC-M424 [83/108] Horn function](/views2/1074285/page83/bg53.png)
74
8
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

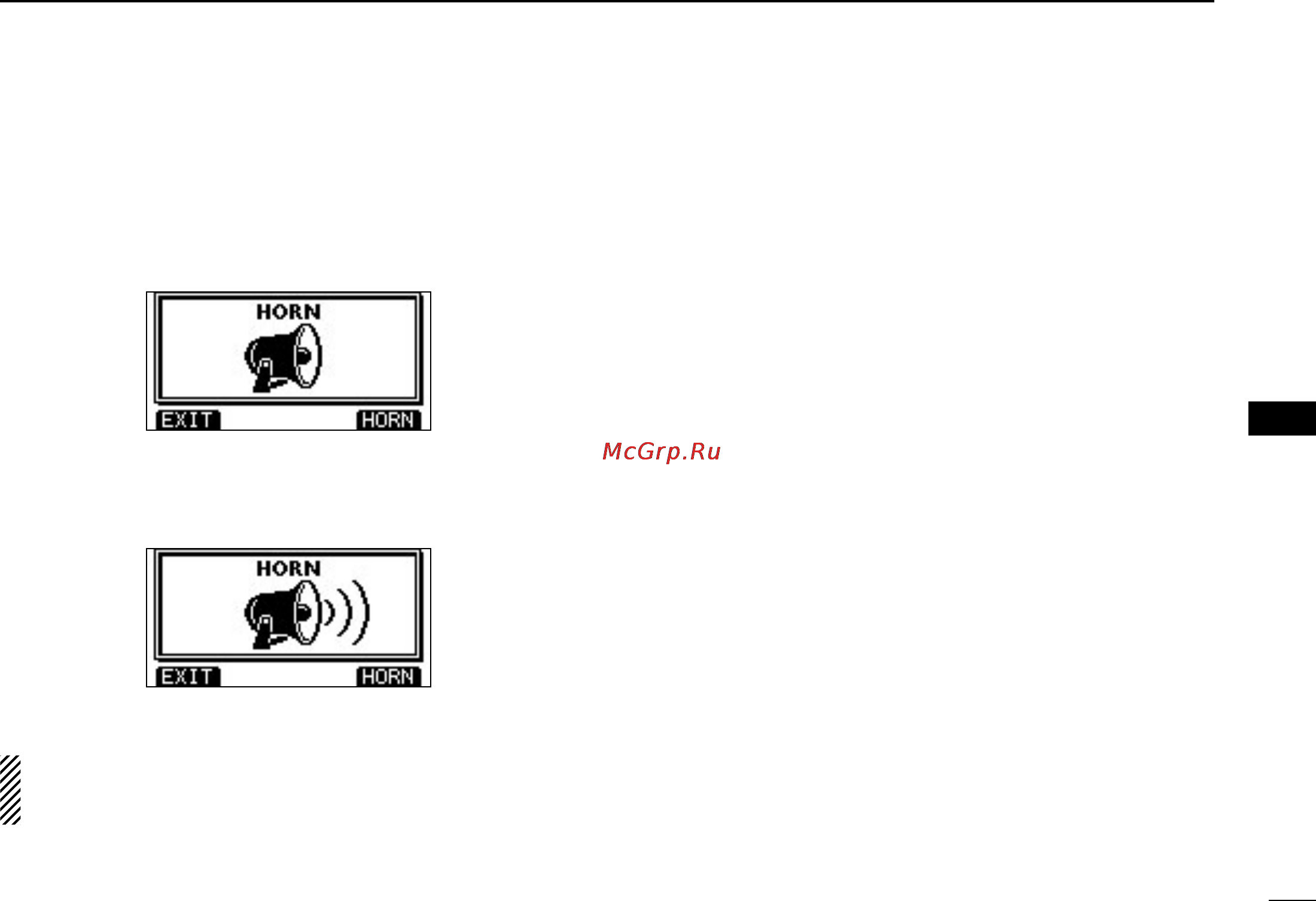

Horn function ■
The Horn function sounds a horn.
Connect a PA speaker as described on page 83.
Push [HORN] to enter the Horn mode. q
Hold down [HORN] to sound a horn. w
•Whileholdingdown[HORN],thehornsounds,andthescreen
below is displayed.
•Toadjustthehornvolumelevel,rotateDial.
Push [EXIT] to return to the normal operating screen. e
While in the Horn mode, the transmit and receive functions
are disabled. When the transceiver is transmitting, the
Horn function is disabled.
