25
7
DSC OPERATION

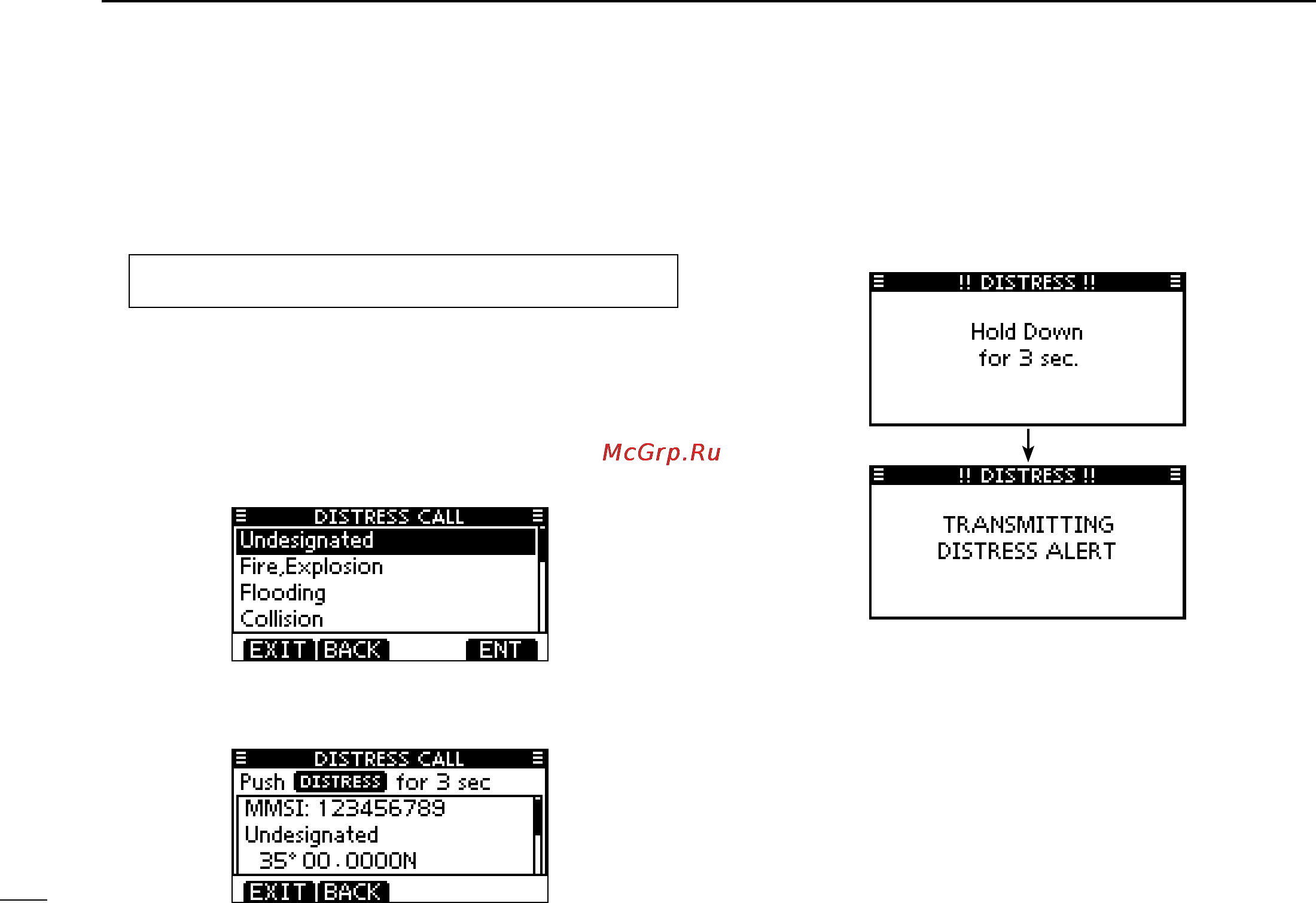

Regular call D
The nature of the Distress call should be included in the Dis-
tress call.
Enter “DISTRESS CALL” in the DSC CALLS menu. q
Select the nature of the distress using Dial or [ w Y]/[Z], then
push Dial or [ENT].
•‘Undesignated,’‘Fire,Explosion,’‘Flooding,’‘Collision,’‘Grounding,’
‘Capsizing,’ ‘Sinking,’ ‘Adrift,’ ‘Abandoning ship,’ ‘Piracy’ or ‘Man
Overboard’ is selectable.
•Thenatureofthedistressisstoredfor10minutesafteraselec-
tion is made.
The Distress call confirmation screen is displayed. e
•RotateDialorpush[Y]/[Z] to see the hidden lines.
Hold down [DISTRESS] for 3 seconds to transmit the Dis- r
tress call.
•Whileholdingdown[DISTRESS],countdownbeepssoundand
both the key and display backlighting blink.
•Theselectednatureofthedistressisstoredfor10minutes.
MENU ➪ DSC Calls ➪ Distress Call
(Push [MENU])
(Rotate Dial, then push [ENT].)
