MENU SCREEN OPERATION
9

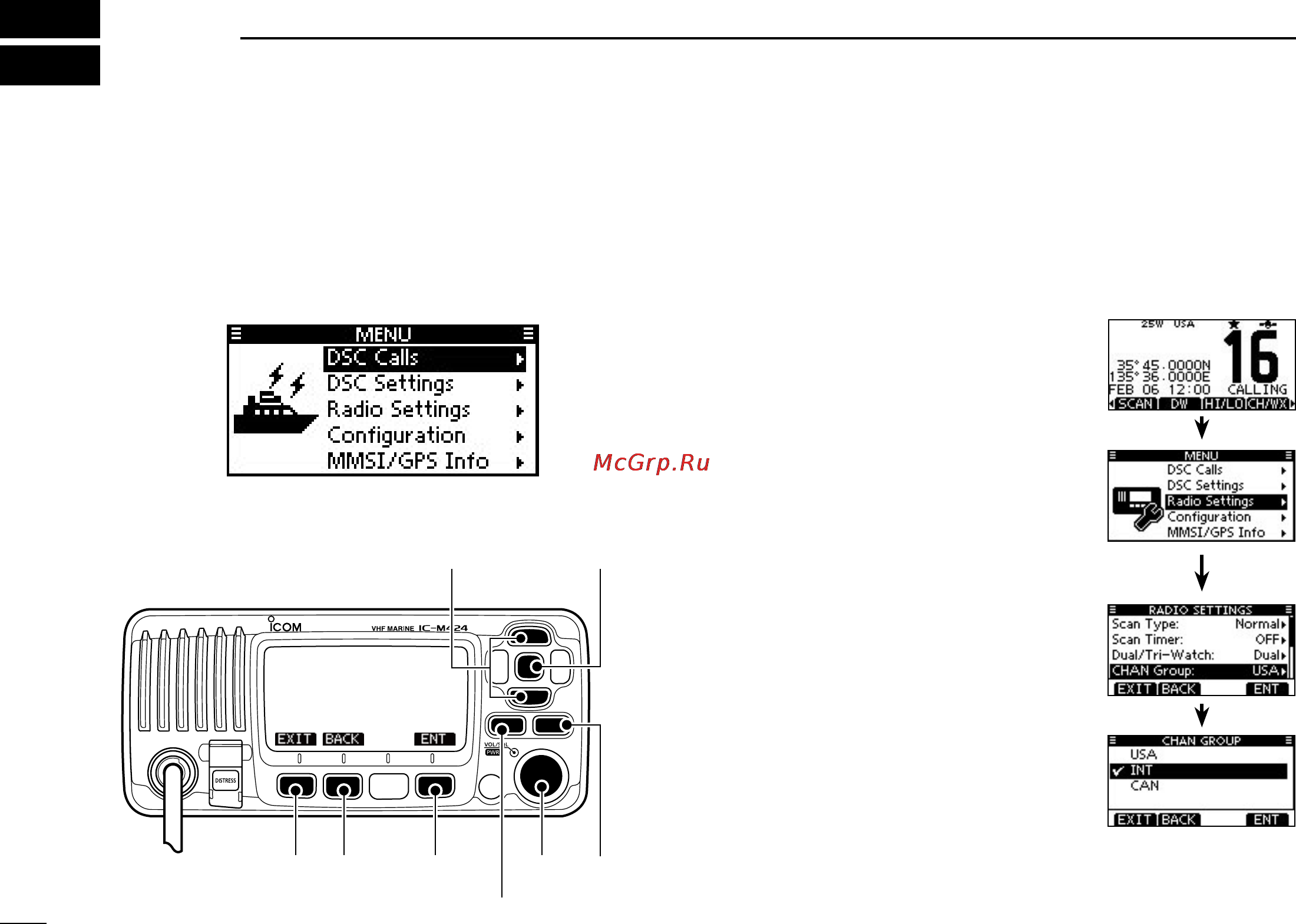

■ Menu screen operation
The Menu screen is used for programming infrequently
changed values, function settings or sending DSC calls.
In addition to this page, see pages 76 through 82 for details.
D
Entering the Menu screen and operation
Example: Set the channel group to “INT.”
Push [MENU]. q
Rotate Dial or push [ w ∫]/[√] to select
the root item (Radio Settings), and
then push [ENT].
•If[∫] or [√] is continuously held down,
the items are sequentially highlighted.
Rotate Dial or push [ e ∫]/[√] to se-
lect “CHAN Group,” and then push
[ENT].
Rotate Dial or push [ r ∫]/[√] to select
“USA,” and then push [ENT] to set it.
•“✔” is displayed next to “INT.”
t
Push [EXIT] to exit the Menu screen.
•Push [CLEAR] or [BACK] to return to
the previous screen.
[ENT][Y]/[Z]
[CLEAR][EXIT] [ENT][BACK] Dial
[MENU]
Menu lists
