80
9
MENU SCREEN OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
• Softkeys assignment
The desired function can be assigned as the softkey func-
tion. The assigned function can be used when its key icon is
displayed.
See page 3 for details of the assignable key functions.

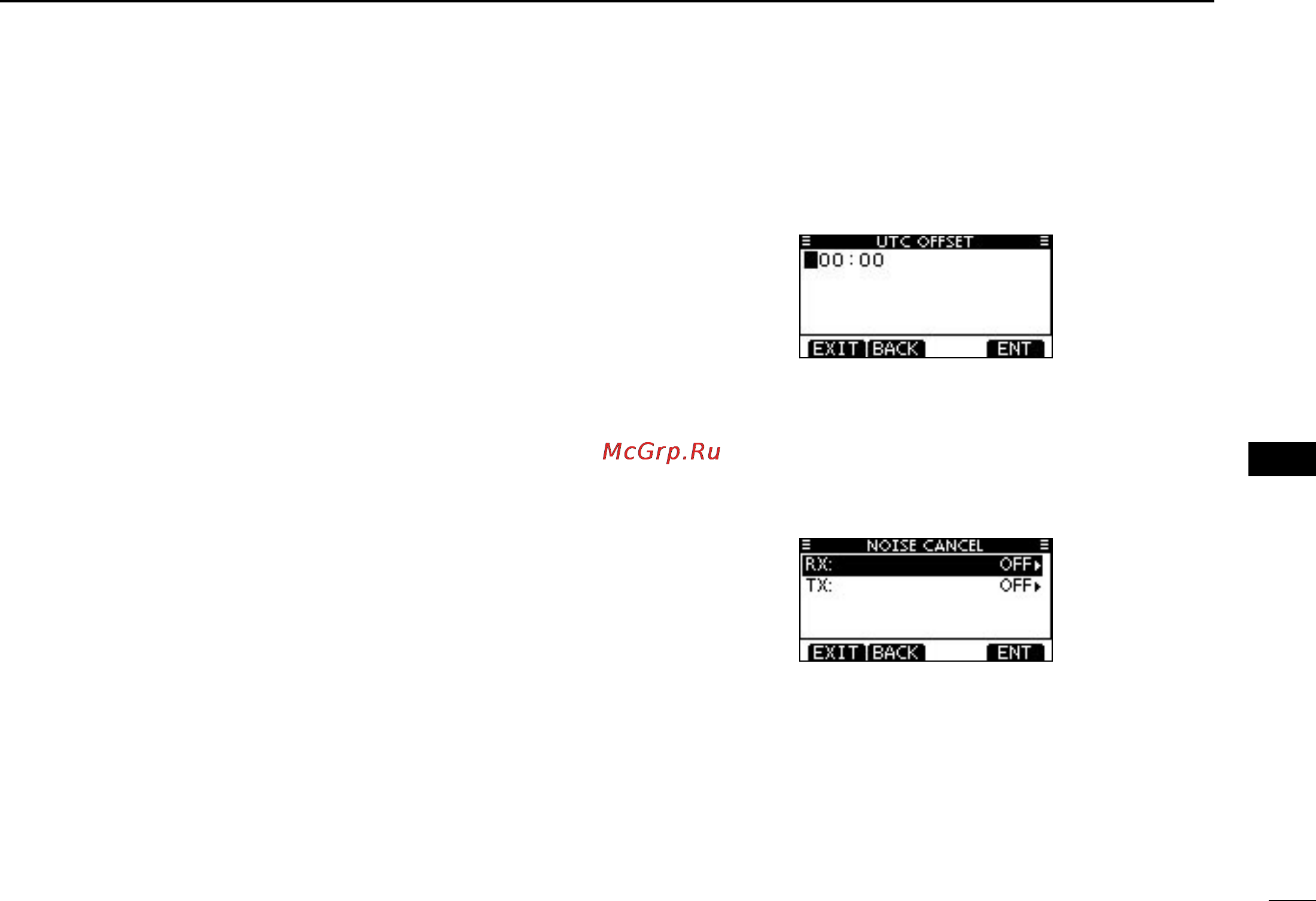

UTC Offset D
Set the offset time between the UTC (Universal Time Coordi-
nated) and your local time to between –14:00 and +14:00 (in
1 minute steps). (Default: 00:00)
Noise Cancel D
Set the Noise Cancel function for both receive and transmit.
q
When the “NOISE CANCEL” screen is displayed, rotate Dial
or push [∫]/[√] to select “RX” or “TX,” and then push [ENT].
Rotate Dial or push [ w ∫]/[√] to select the option, and then
push [ENT] to set it.
•“✔” is displayed next to the selected option.
Push [EXIT] to exit the Menu screen. e
•Push[CLEAR]or[BACK]toreturntothepreviousscreen.
