DSC OPERATION

Push [CALL] to transmit the Test call. r

 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel

becomes clear.

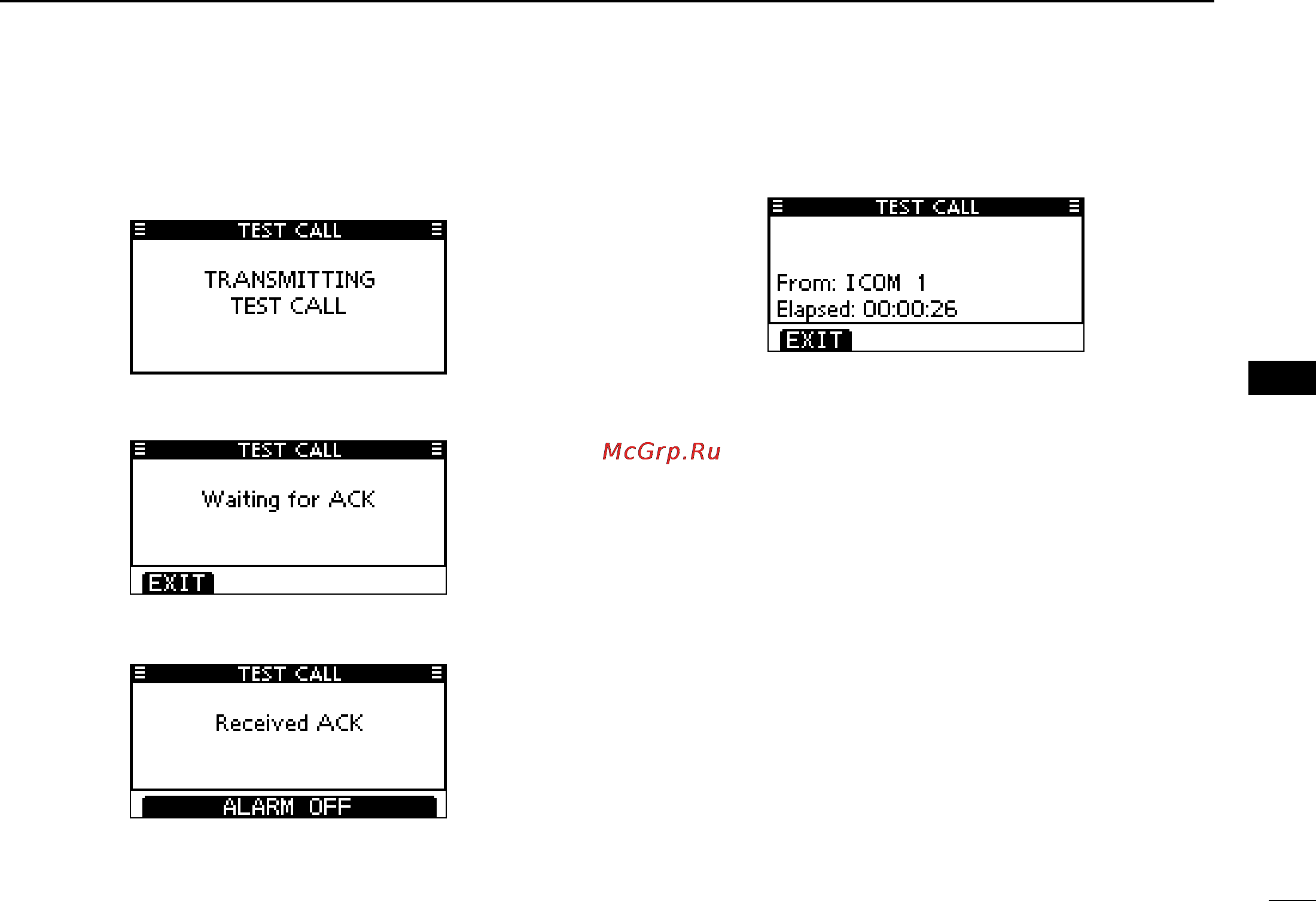

After the Test call has been transmitted, the following t

screen is displayed.

When the acknowledgement call is received, beeps sound y

and the following screen is displayed.

Push [ALARM OFF] to stop the beeps, and then the screen u

as shown below is displayed.

Push [EXIT] to return to the normal operating mode. i
