Icom IC-M424 [25/108] Aquaquake water draining function
![Icom IC-M424 [25/108] Aquaquake water draining function](/views2/1074285/page25/bg19.png)
16
4
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

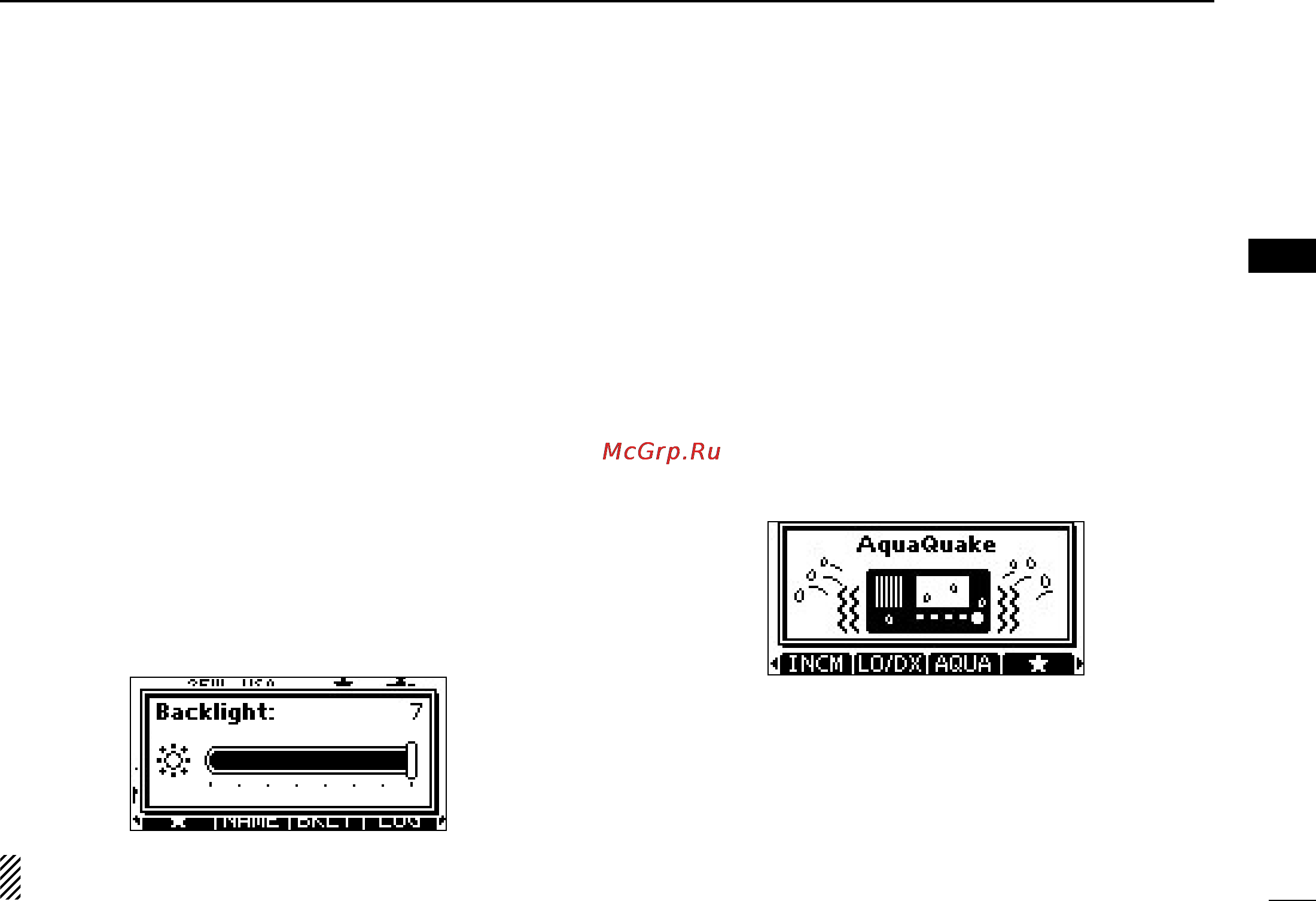

Adjusting the display ■
backlight level
The function display and keys can be backlit for better visibil-
ity under low light conditions.
The backlight is adjustable in 7 levels and OFF.
Depending on the preprogramming, the adjustment method
differs, as described below.
Push [BKLT] to show the backlight adjustment screen. Ro- ➥
tate Dial to adjust the brightness of the LCD and key back-
light, and then, push [ENT].
•Ifnokeyoperationisperformedforabout5seconds,thetransceiver
sets the selected backlight level, and returns to the normal mode.
When the Backlight function is assigned to the [VOL/
SQL](Dial):
Push [VOL/SQL](Dial) one or more times to display the q
backlight adjustment screen.
Rotate [VOL/SQL](Dial) to adjust the brightness of the w
LCD and key backlight, and then, push [ENT].
The desired function can be assigned to Dial. See page 79
for details.
AquaQuake water draining ■
function
The AquaQuake water draining function clears water away
from the speaker grill. Without this function, water may muffle
the sound coming from the speaker. A buzzing sound is heard
when this function is activated.
While holding down [AQUA], the AquaQuake function is ➥
activated to clear water away from the speaker grill.
•Whileholdingdown[AQUA],alowbuzzingsoundstodrainwa-
ter, regardless of the volume level setting.
•The transceiver keys, except [DISTRESS], are disabled while
the AquaQuake function is activated.
When the AquaQuake function is activated.
