Icom IC-M424 [87/108] Configuration items
![Icom IC-M424 [87/108] Configuration items](/views2/1074285/page87/bg57.png)
78
9
MENU SCREEN OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

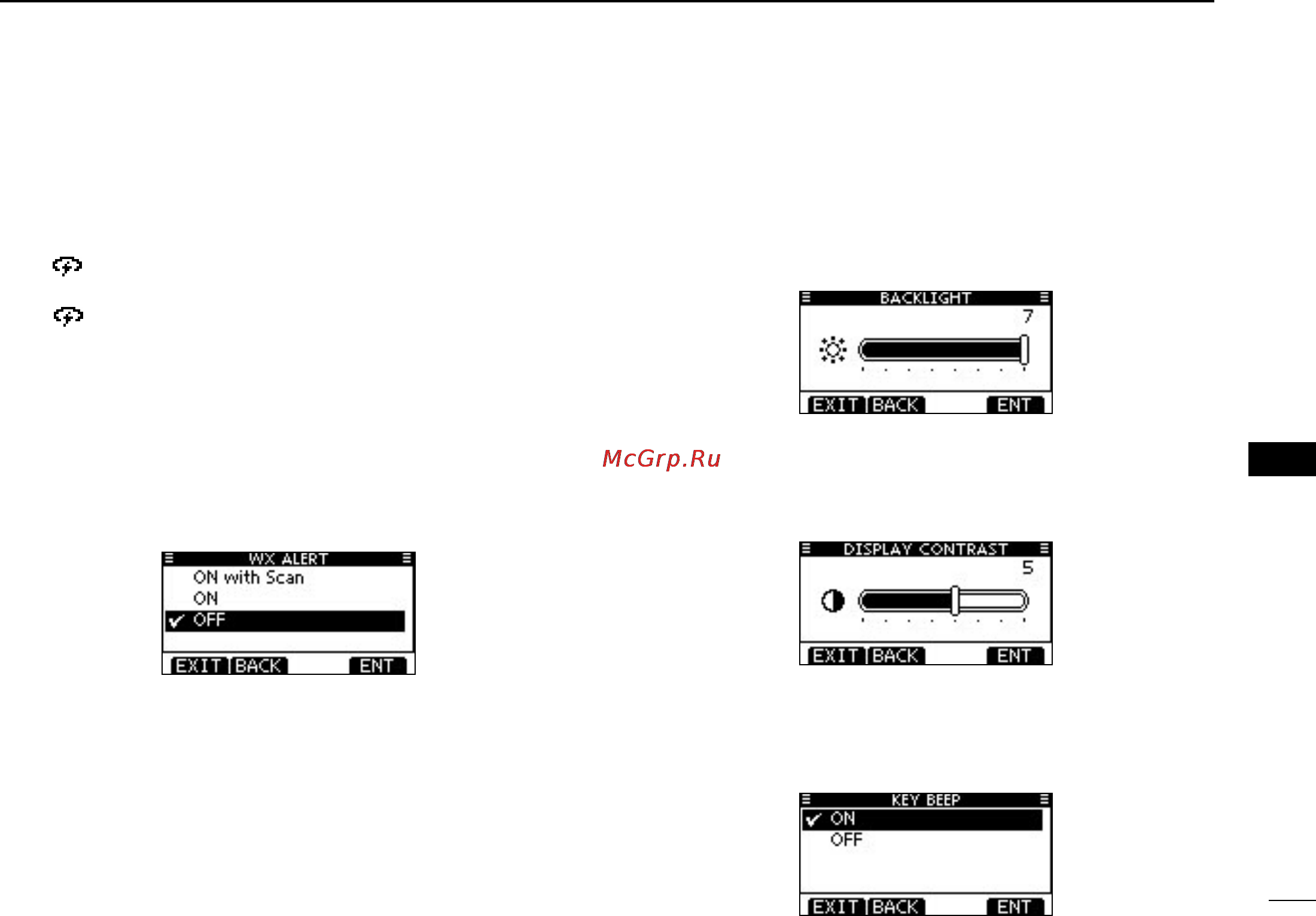

Weather alert D
A NOAA broadcast station transmits a weather alert tone be-
fore important weather information.
“WX
” blinks until the transceiver is operated after the
transceiver detects the alert.
•“WX ” appears instead of “WX” when the function is set ON.
(Default: OFF)
ON with Scan : The preprogrammed weather channels are
sequentially checked while scanning.
ON : The previously selected (last used) weather
channel is checked while scanning.
OFF : The transceiver does not detect a weather
alert tone.
Configuration items ■
Backlight D
The function display and keys can be backlit for better visibil-
ity under low light conditions.
The backlight can be set to 7 levels and OFF. (Default: 7)
Display contrast D
This item adjusts the contrast of the LCD in 8 steps.
Level 1 is the lowest contrast, and level 8 is the highest con-
trast. (Default: 5)
Key Beep D
You can turn OFF beep tones for silent operation, or you can
turn ON the tones to have confirmation beeps sound when a
key is pushed. (Default: ON)
