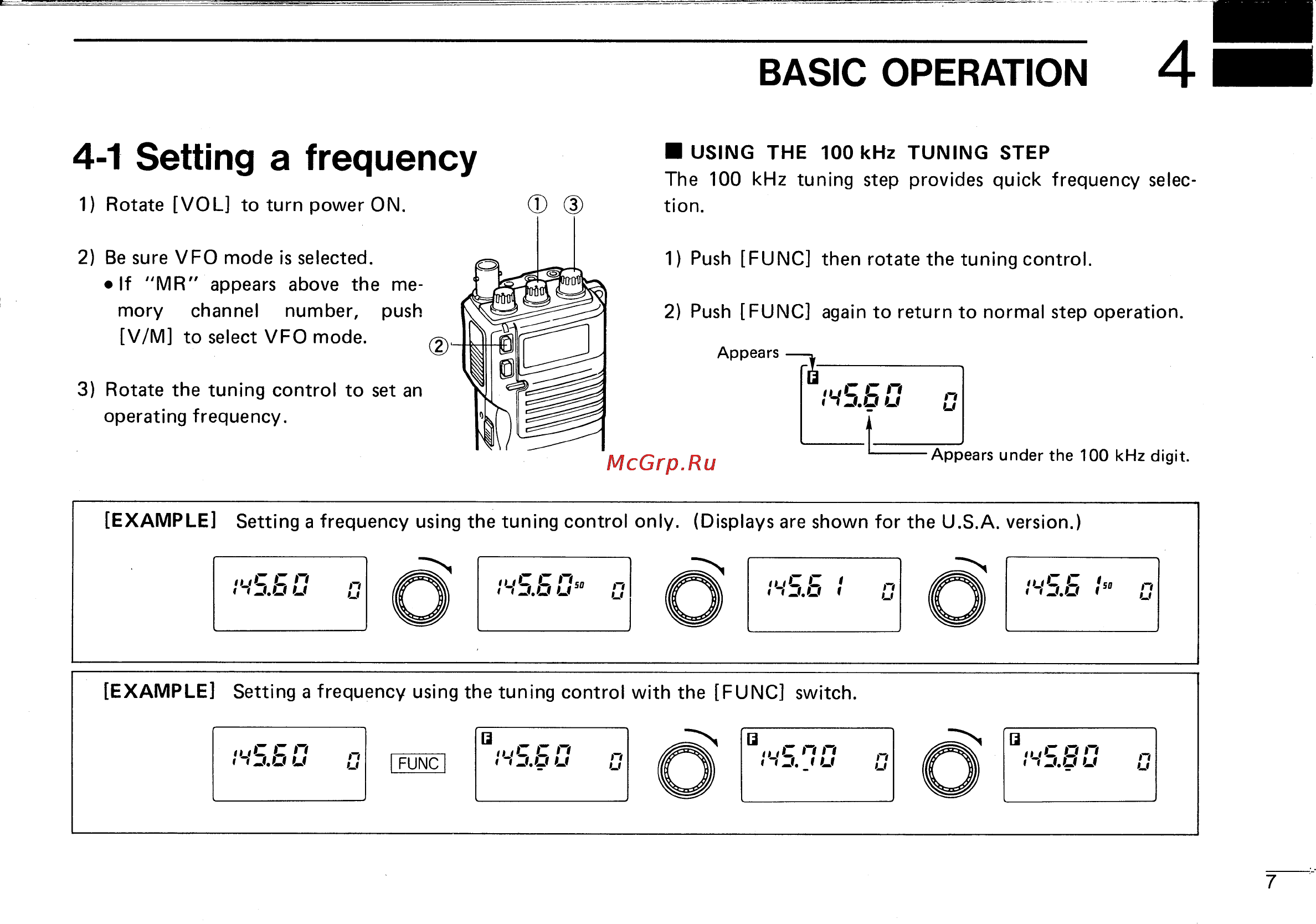

BASIC OPERATION USING THE 100 kHz TUNING STEP The 100 kHz tuning step provides quick frequency selec tion 4 1 Setting a frequency и Rotate VOL to turn power ON 2 Be sure VFO mode is selected If MR appears above the me mory channel number push V M to select VFO mode 1 Push FUNC then rotate the tuning control 2 Push FUNC again to return to normal step operation Appears 3 Rotate the tuning control to set an operating frequency Appears under the 100 kHz digit EXAMPLE Setting a frequency using the tuning control only Displays are shown for the U S A version I FUNC I LH СП C3 СЭ LH СП c EXAMPLE Setting a frequency using the tuning control with the FUNC switch ____ J Q_______ r l dLl G 7
