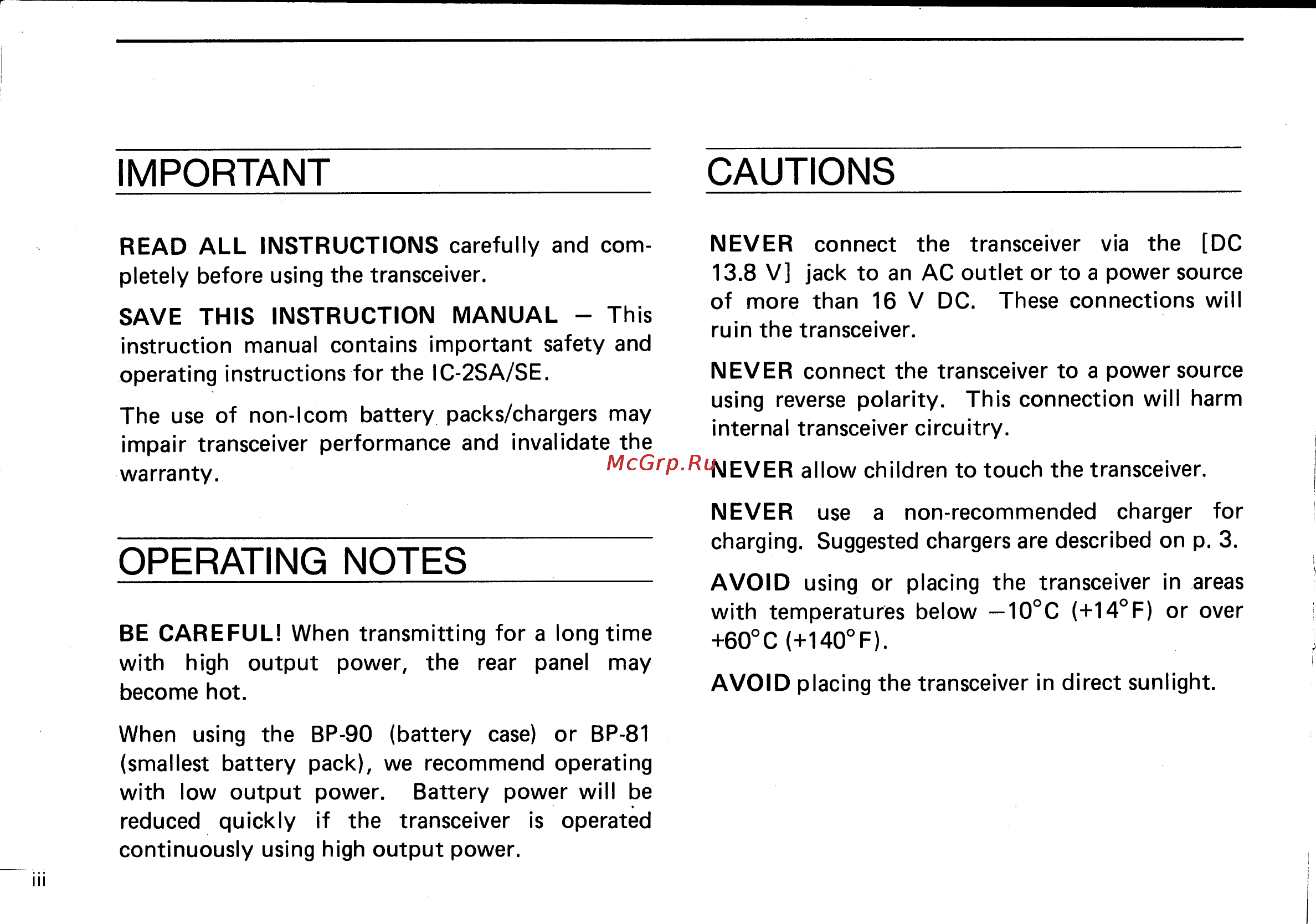

i I IMPORTANT CAUTIONS READ ALL INSTRUCTIONS carefully and com pletely before using the transceiver NEVER connect the transceiver via the DC 13 8 V jack to an AC outlet or to a power source of more than 16 V DC These connections will ruin the transceiver SAVE THIS INSTRUCTION MANUAL This instruction manual contains important safety and operating instructions for the IC 2SA SE The use of non lcom battery packs chargers may impair transceiver performance and invalidate the warranty OPERATING NOTES BE CAREFUL When transmitting for a longtime with high output power the rear panel may become hot When using the BP 90 battery case or BP 81 smallest battery pack we recommend operating with low output power Battery power will be reduced quickly if the transceiver is operated continuously using high output power NEVER connect the transceiver to a power source using reverse polarity This connection will harm internal transceiver circuitry NEVER allow children to touch the transceiver NEVER use a non recommended charger for charging Suggested chargers are described on p 3 AVOID using or placing the transceiver in areas with temperatures below 10 C 14 F or over 60 C 140 F AVOID placing the transceiver in direct sunlight
