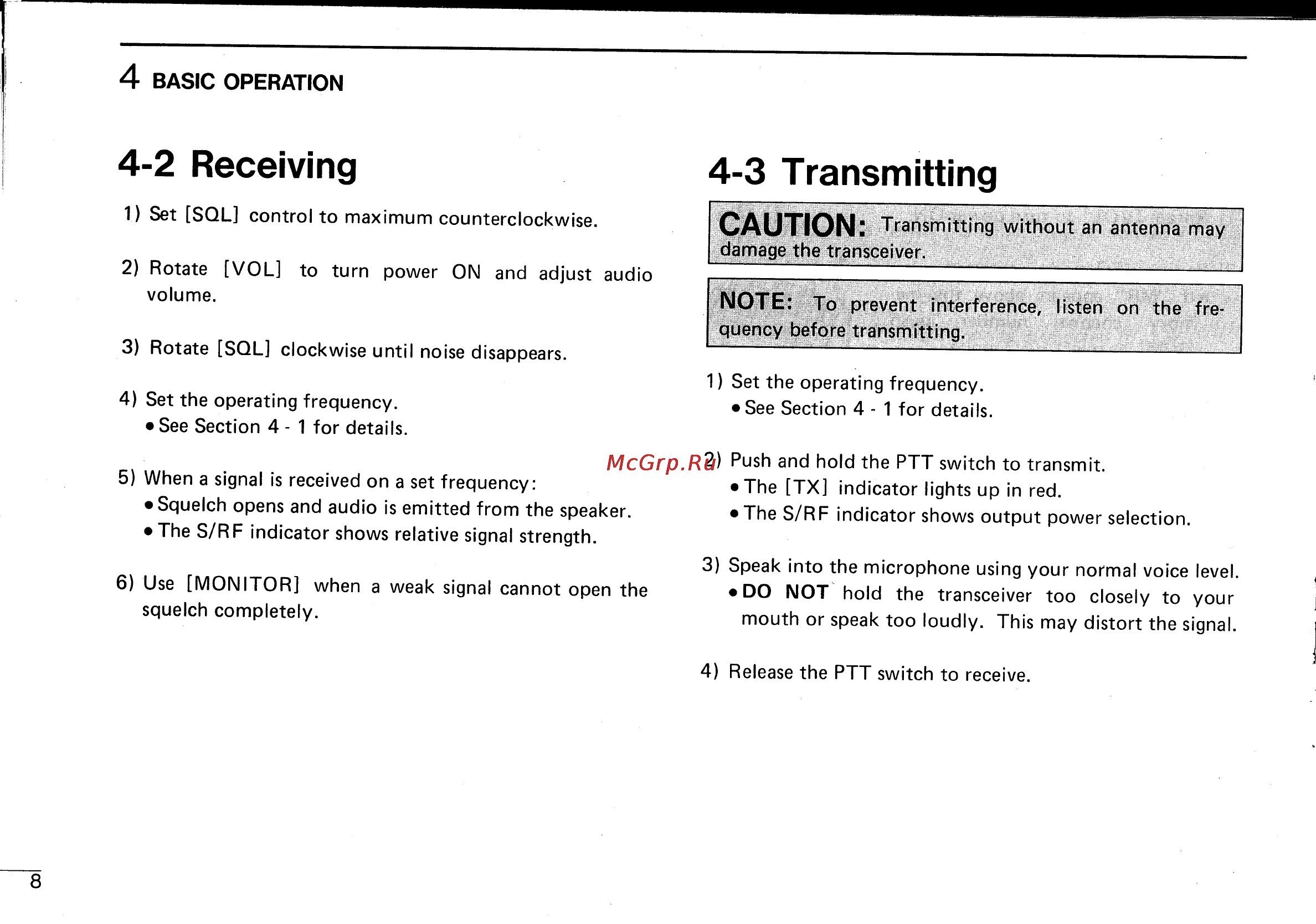

4 BASIC OPERATION 4 2 Receiving 1 Set SQL control to maximum counterclockwise 4 3 Transmitting CAUTION Transmitting without an antenna may damage the transceiver 2 Rotate VOL to turn power ON and adjust audio volume NOTE To prevent interference listen on the fre quency before transmitting 3 Rotate SQL clockwise until noise disappears 4 Set the operating frequency See Section 4 1 for details 5 When a signal is received on a set frequency Squelch opens and audio is emitted from the speaker The S RF indicator shows relative signal strength 6 Use MONITOR when a weak signal cannot open the squelch completely 1 Set the operating frequency See Section 4 1 for details 2 Push and hold the PTT switch to transmit The TX indicator lights up in red The S RF indicator shows output power selection 3 Speak into the microphone using your normal voice level DO NOT hold the transceiver too closely to your mouth or speak too loudly This may distort the signal 4 Release the PTT switch to receive 8
