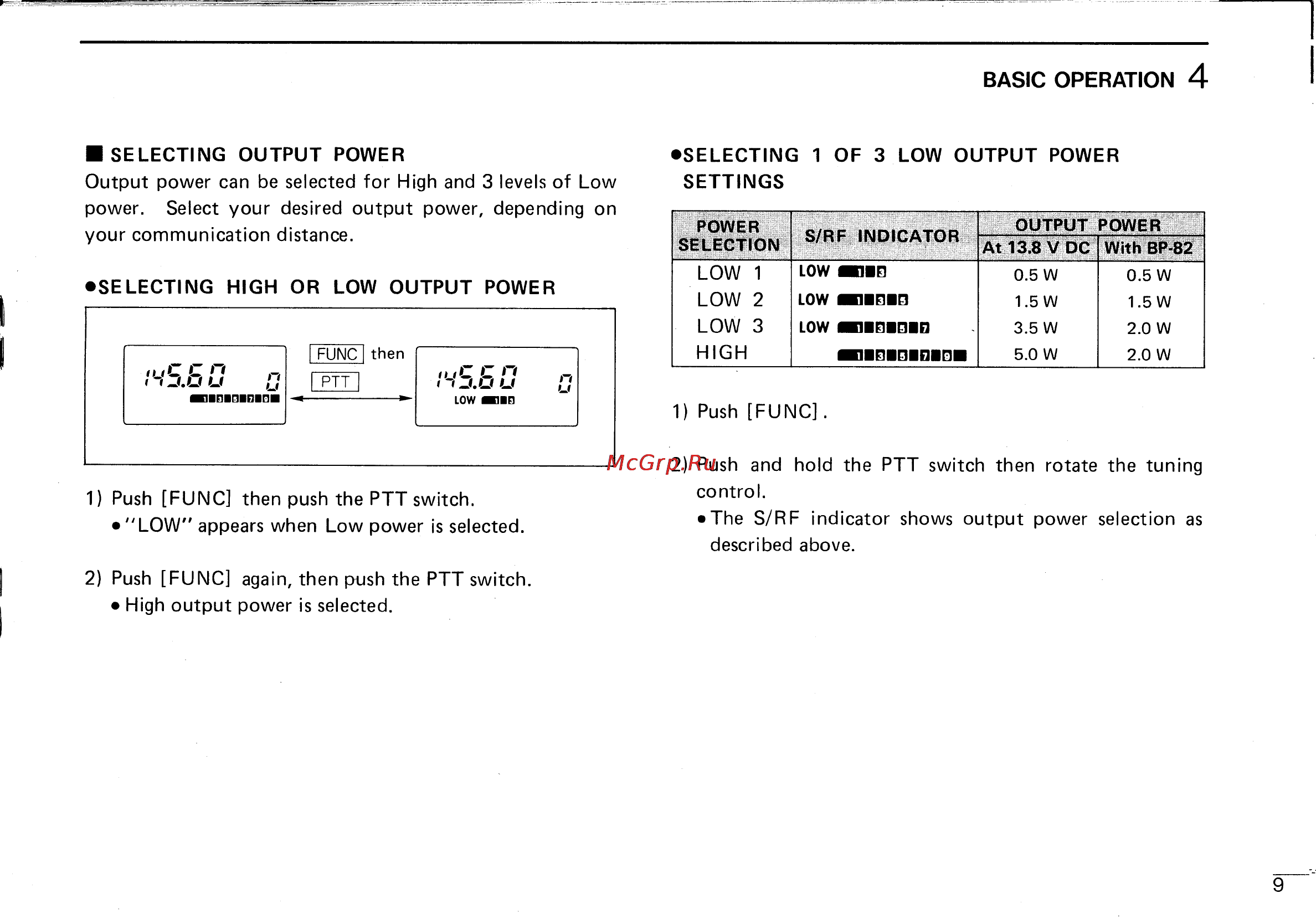

BASIC OPERATION 4 SELECTING OUTPUT POWER Output power can be selected for High and 3 levels of Low power Select your desired output power depending on your communication distance SELECTING HIGH OR LOW OUTPUT POWER SELECTING 1 OF 3 LOW OUTPUT POWER SETTINGS POWER SELECTION LOW 1 LOW 2 LOW 3 HIGH S RF INDICATOR OUTPUT POWER At 13 8 V DC With BP 82 LOW 0 5 W LOW BHBEIBD 1 5 W 1 5 W LOW ВИВПВПВЕ 3 5 W 2 0 W 5 0 W 2 0 W ПВПВПВПВПН 0 5 W 1 Push FUNC 1 Push FUNC then push the PTT switch LOW appears when Low power is selected 2 Push and hold the PTT switch then rotate the tuning control The S RF indicator shows output power selection as described above 2 Push FUNC again then push the PTT switch High output power is selected 9
