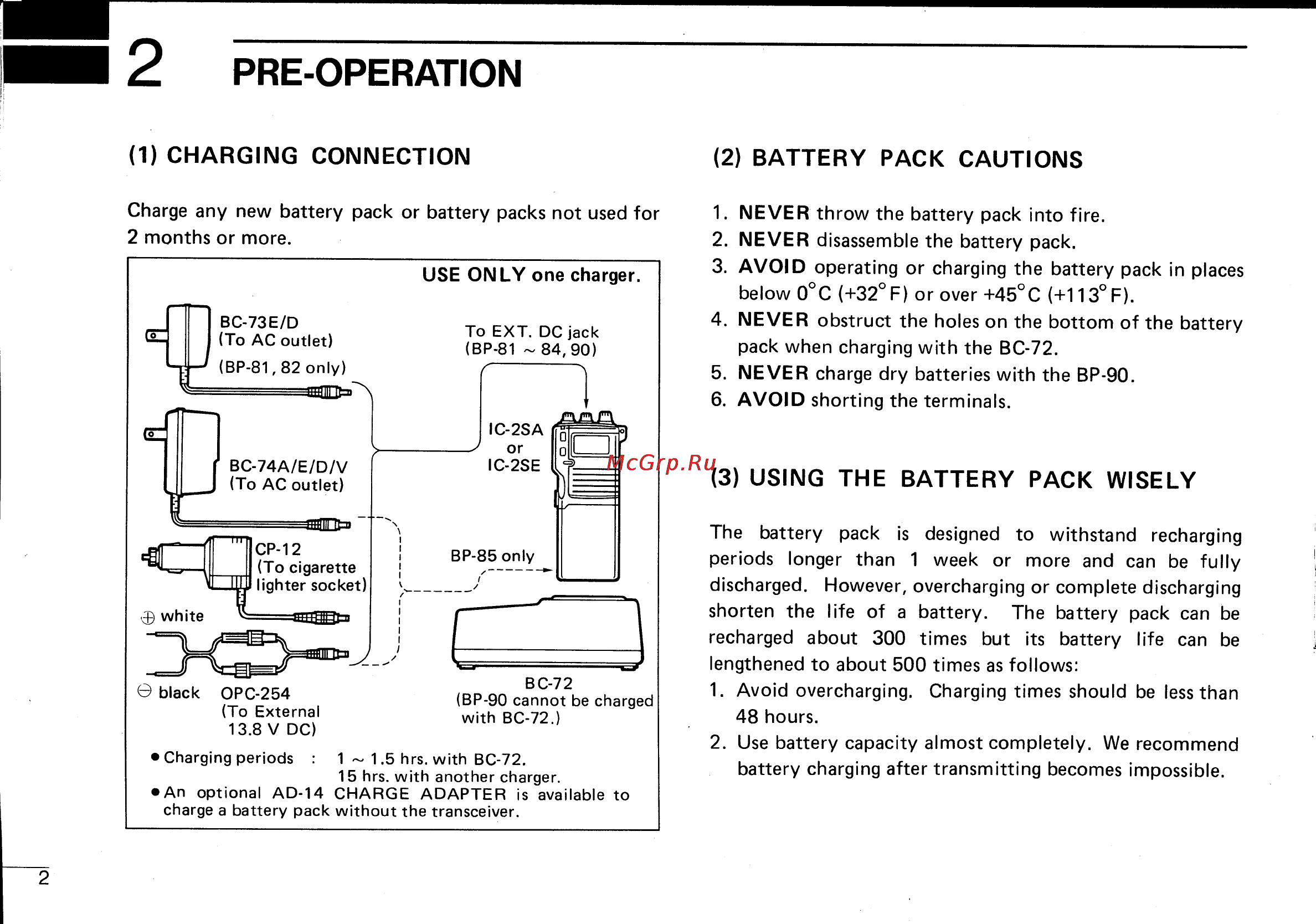

2 PRE OPERATION 11 CHARGING CONNECTION 2 BATTERY PACK CAUTIONS Charge any new battery pack or battery packs not used for 2 months or more 1 NEVER throw the battery pack into fire 2 NEVER disassemble the battery pack 3 AVOID operating or charging the battery pack in places below 0 C 32 F or over 45 C 113 F 4 NEVER obstruct the holes on the bottom of the battery pack when charging with the BC 72 5 NEVER charge dry batteries with the BP 90 6 AVOID shorting the terminals USE ONLY one charger BC 73E D To AC outlet To EXT DC jack BP 81 82 only 3 USING THE BATTERY PACK WISELY 0 black OPC 254 To External 13 8 V DC BP 90 cannot be charged with BC 72 Charging periods 1 1 5 hrs with BC 72 15 hrs with another charger An optional AD 14 CHARGE ADAPTER is available to charge a battery pack without the transceiver The battery pack is designed to withstand recharging periods longer than 1 week or more and can be fully discharged However overcharging or complete discharging shorten the life of a battery The battery pack can be recharged about 300 times but its battery life can be lengthened to about 500 times as follows 1 Avoid overcharging Charging times should be less than 48 hours 2 Use battery capacity almost completely We recommend battery charging after transmitting becomes impossible
