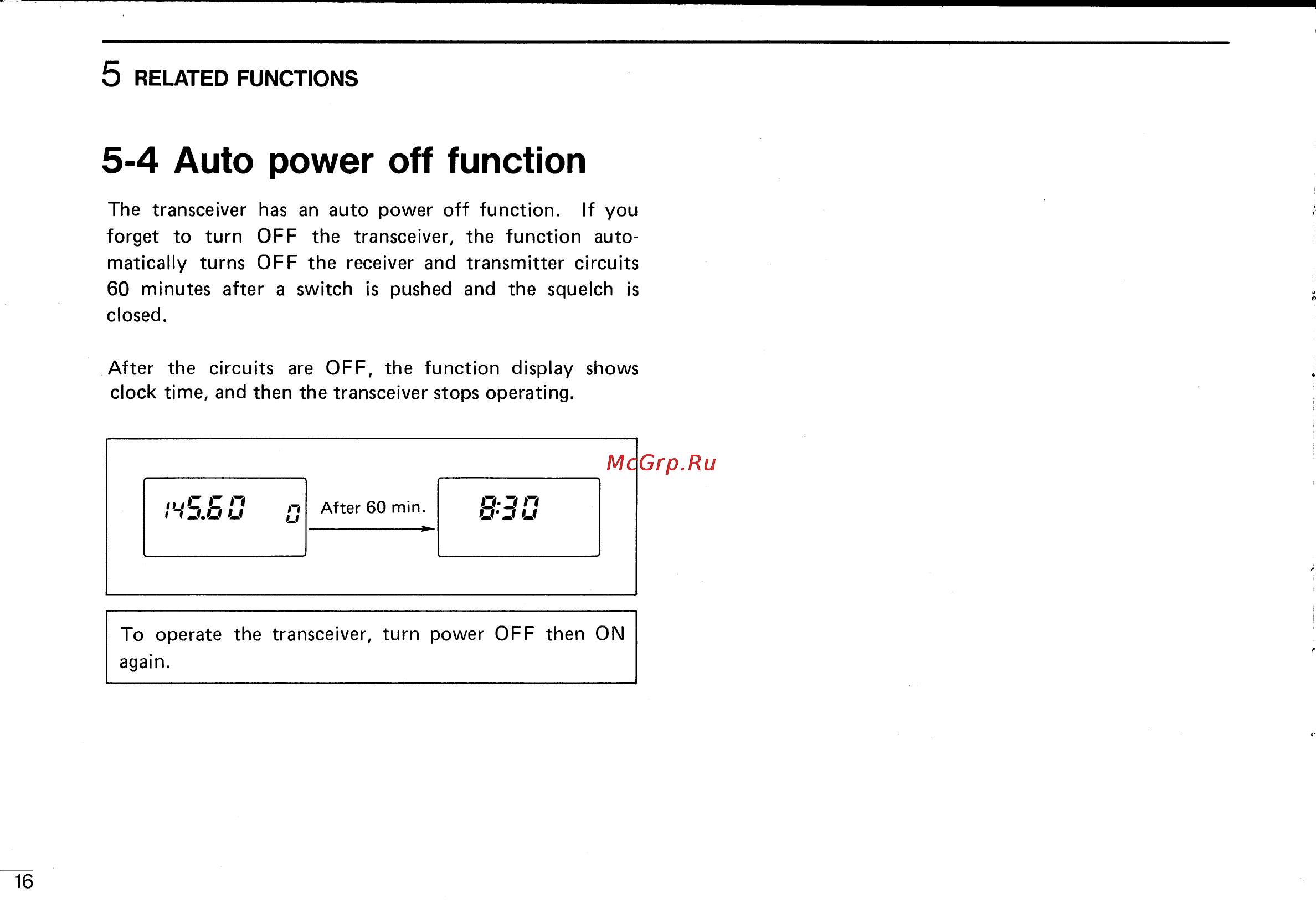

5 RELATED FUNCTIONS 5 4 Auto power off function The transceiver has an auto power off function If you forget to turn OFF the transceiver the function auto matically turns OFF the receiver and transmitter circuits 60 minutes after a switch is pushed and the squelch is closed After the circuits are OFF the function display shows clock time and then the transceiver stops operating To operate the transceiver turn power OFF then ON again 16
